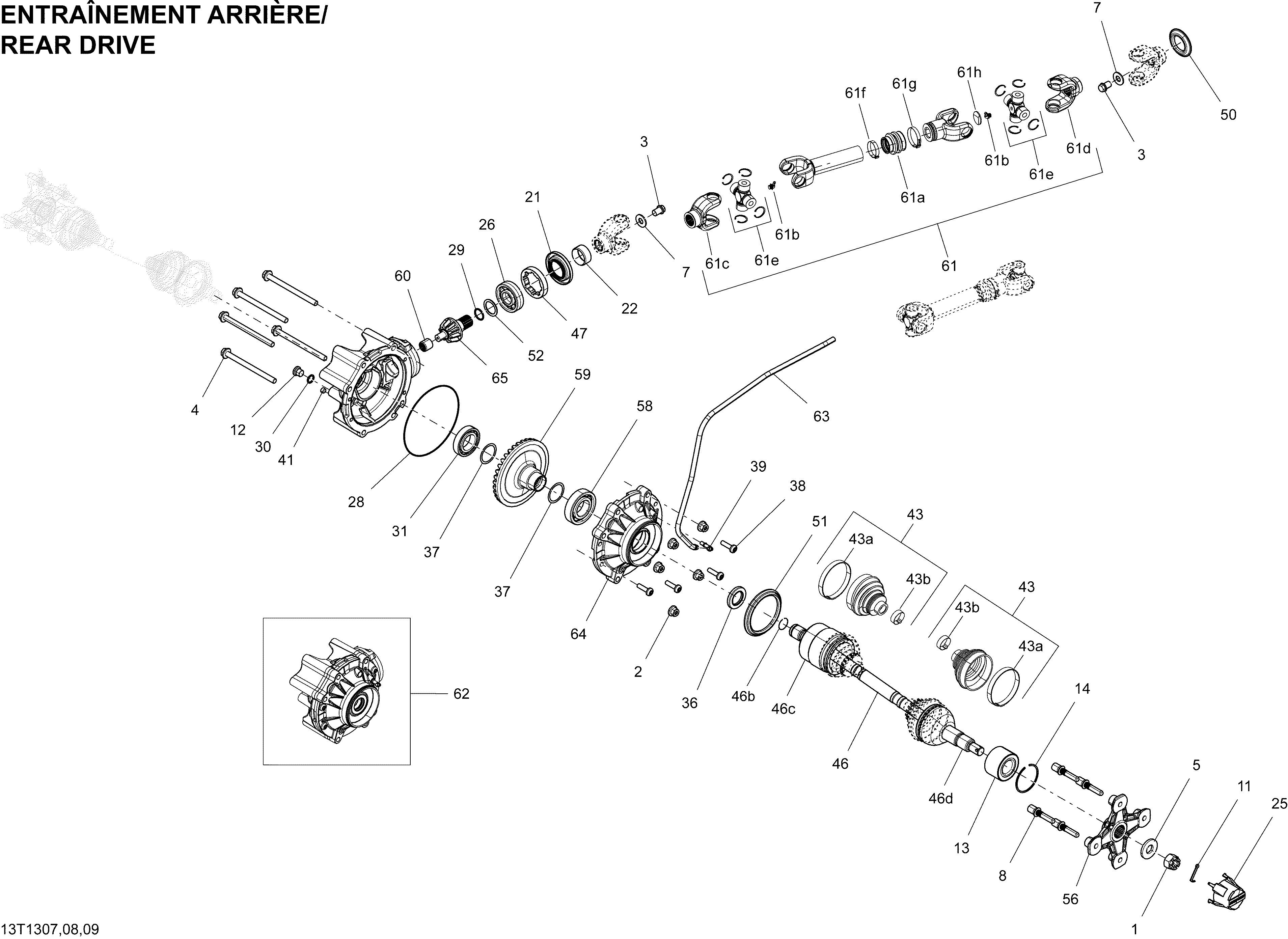

08- Drive System, Rear для BRP Renegade 800R EFI STD & XXC - 2013
-
№АртикулНазвание
-
1250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
2233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
3250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
3250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
4250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
5250200049 Spring WasherSpring Washer
-
7250200102 Flat Washer M12Flat Washer M12
-
8250300048 Wheel StudWheel Stud
-
11250400036 Cotter PinCotter Pin
-
12705500504 Fill Level PlugFill Level Plug
-
13293350040 Cone BearingCone Bearing
-
14293370019 CirclipCirclip
-
21705400027 Oil SealOil Seal
-
22705400036 Wear RingWear Ring
-
25705400928 Wheel CapWheel Cap
-
26705500260 Ball BearingBall Bearing
-
28705500265 SealSeal
-
29705500267 O-RingO-Ring
-
30705500506 Copper WasherCopper Washer
-
31705500749 Ball BearingBall Bearing
-
36705501196 Oil SealOil Seal
-
37703500548 Differential Shim KitDifferential Shim Kit
-
38705500892 ScrewScrew
-
39705500893 Vent ValveVent Valve
-
41705500894 Drain PlugDrain Plug
-
43705501777 Rubber Boot KitRubber Boot Kit
-
43a715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
43b715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
46705501485 LH Homocinetic JointLH Homocinetic Joint
-
46705501486 RH Homocinetic JointRH Homocinetic Joint
-
46b705501781 CirclipCirclip
-
46c705501780 Plunging JointPlunging Joint
-
46d705501776 CV JointCV Joint
-
47705500987 NutNut
-
50705501123 ProtectorProtector
-
51705501124 Wear RingWear Ring
-
52705501162 Pinion Gear ShimPinion Gear Shim
-
52705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
52703500049 Pinion Shim KitPinion Shim Kit
-
56705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
58705501389 Ball BearingBall Bearing
-
59705501403 36 Teeth Pinion36 Teeth Pinion
-
60705501408 Needle BearingNeedle Bearing
-
61705501406 Rear Propeller Shaft Ass'y. 800, Include 61 to 61hRear Propeller Shaft Ass'y. 800, Include 61 to 61h
-
61a715900118 Rubber BootRubber Boot
-
61b715900184 Grease FittingGrease Fitting
-
61c715900101 Fixe YokeFixe Yoke
-
61d715900101 Fixe YokeFixe Yoke
-
61e715500371 Universal JointUniversal Joint
-
61f509000045 Oetiker Gear ClampOetiker Gear Clamp
-
61g293650138 Oetiker Gear ClampOetiker Gear Clamp
-
61h715900187 CoverCover
-
62705501419 Rear Differential Ass'yRear Differential Ass'y
-
63415080200 Hose, PolyurethaneHose, Polyurethane
-
64705501507 Rear Differential CoverRear Differential Cover
-
65705501570 10 Teeth Pinion10 Teeth Pinion
