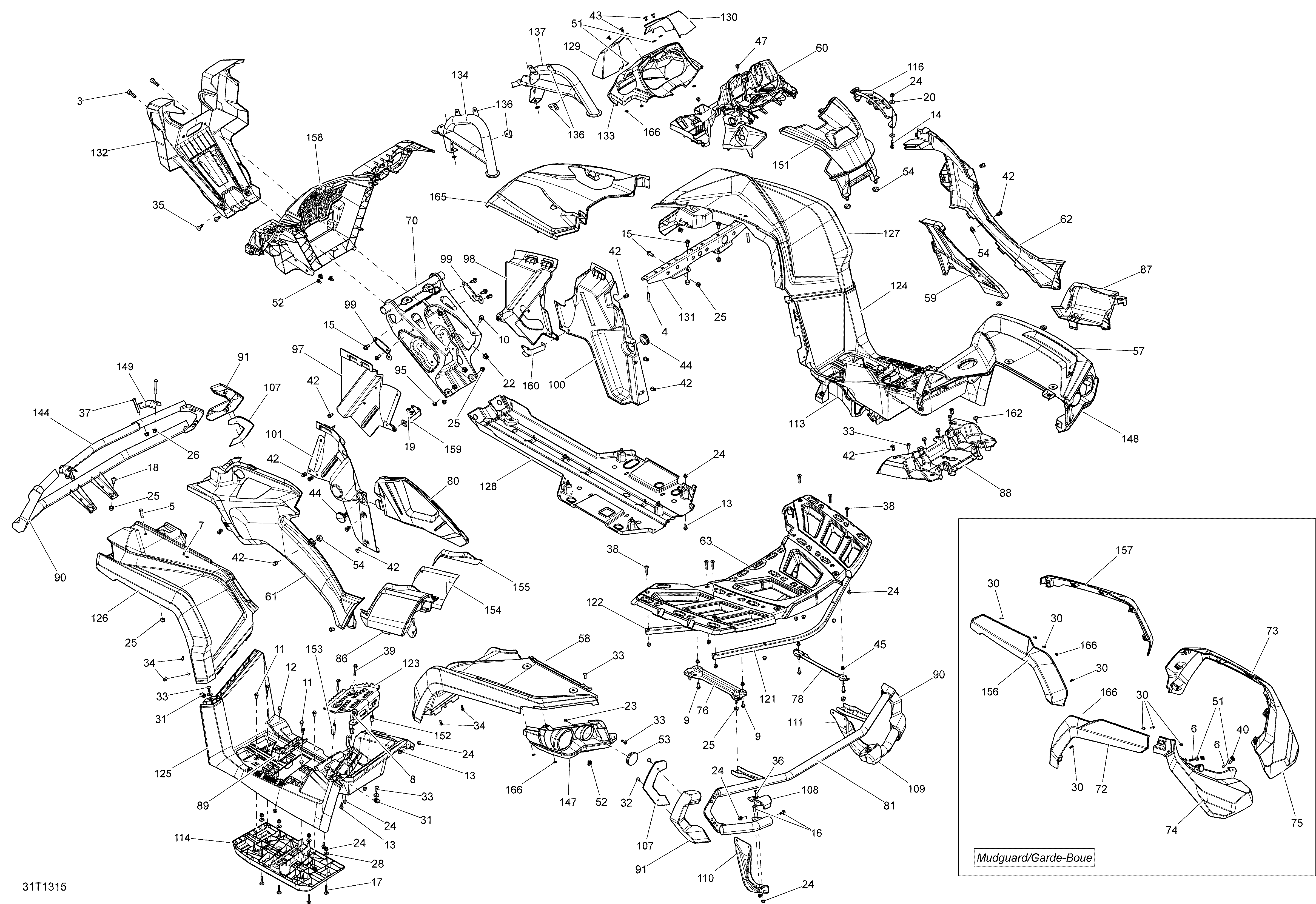

09- Body And Accessories для BRP Outlander 1000EFI XMR - 2013
-
№АртикулНазвание
-
3205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
4207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
5207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
6207342544 Hex. Cap Screw M4 X 25Hex. Cap Screw M4 X 25
-
7207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
8207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
9207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
10207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
11207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
12207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
15207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
16207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
17207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
18207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
19210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
20224061201 Flat WasherFlat Washer
-
22233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
24233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
26233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
28234062410 Flat Washer 6 mmFlat Washer 6 mm
-
30241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
31250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
32250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
33250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
34250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
35250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
36250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
37250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
38250000541 Torx Screw M6 X 35Torx Screw M6 X 35
-
39207664536 Hex. Flange Screw M6 X 45Hex. Flange Screw M6 X 45
-
40250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
42293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
43293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
44293250242 Rubber CoverRubber Cover
-
45293450274 InsertInsert
-
47293830005 Rubber PlugRubber Plug
-
51517124300 WasherWasher
-
52517302785 ClipClip
-
53705002408 Reflector, RedReflector, Red
-
54705003264 GrommetGrommet
-
57715001810 RH Rear Fender Kit, Black. North AmericaRH Rear Fender Kit, Black. North America
-
57715001818 RH Rear Fender Kit, Black. Int'lRH Rear Fender Kit, Black. Int'l
-
57715001811 RH Rear Fender Kit, Camo. North AmericaRH Rear Fender Kit, Camo. North America
-
57715001835 RH Rear Fender Kit, Camo. Int'lRH Rear Fender Kit, Camo. Int'l
-
58715001798 LH Rear Fender Kit, BlackLH Rear Fender Kit, Black
-
58715001800 LH Rear Fender Kit, CamoLH Rear Fender Kit, Camo
-
59705003444 Engine CoverEngine Cover
-
60715001552 Dash Support KitDash Support Kit
-
61705003446 Yellow LH PannelYellow LH Pannel
-
61705005238 LH Pannel, CamoLH Pannel, Camo
-
62705003447 Yellow RH PannelYellow RH Pannel
-
62705005242 RH Pannel, CamoRH Pannel, Camo
-
63715001852 Rack KitRack Kit
-
70705004165 Front Bumper SupportFront Bumper Support
-
72705003918 LH Rear MudguardLH Rear Mudguard
-
73705003920 RH Rear MudguardRH Rear Mudguard
-
74705003921 LH Rear Mudguard, Part 2LH Rear Mudguard, Part 2
-
75705003922 RH Rear Mudguard, Part 2RH Rear Mudguard, Part 2
-
76705003995 LH SupportLH Support
-
78705003996 RH SupportRH Support
-
80705004147 LH Extension PannelLH Extension Pannel
-
81705005019 Black BumperBlack Bumper
-
86715001897 LH Extension Panel KitLH Extension Panel Kit
-
87705004348 RH Extension PanelRH Extension Panel
-
88715001854 Rear Center Panel KitRear Center Panel Kit
-
89705004352 LH FootrestLH Footrest
-
89705005395 RH FootrestRH Footrest
-
90705004409 Cap (Front LH) (Rear RH)Cap (Front LH) (Rear RH)
-
91705004410 Cap (Front RH) (Rear LH)Cap (Front RH) (Rear LH)
-
95705004497 RingRing
-
97705004557 LH Inner FenderLH Inner Fender
-
98705004558 RH Inner FenderRH Inner Fender
-
99705004565 Lower Fender SupportLower Fender Support
-
100705004587 RH Inner FenderRH Inner Fender
-
101705004588 LH Inner FenderLH Inner Fender
-
107705004987 Bracket CoverBracket Cover
-
108705005094 LH BracketLH Bracket
-
109705005095 RH BracketRH Bracket
-
110705005166 LH SupportLH Support
-
111705005167 RH SupportRH Support
-
113705005253 RH. FootboardRH. Footboard
-
114705005254 LH. FootboardLH. Footboard
-
116705005257 IndicatorIndicator
-
121705005469 TubeTube
-
122705005470 TubeTube
-
123705005890 FootrestFootrest
-
124705005977 RH FootboardRH Footboard
-
125705005978 LH FootboardLH Footboard
-
126715001824 LH Front Fender Kit, BlackLH Front Fender Kit, Black
-
126715001828 LH Front Fender Kit, CamoLH Front Fender Kit, Camo
-
127715001826 RH Front Fender Kit, BlackRH Front Fender Kit, Black
-
127715001830 RH Front Fender Kit, CamoRH Front Fender Kit, Camo
-
128705006018 Skid PlateSkid Plate
-
129705006134 LH Air DeflectorLH Air Deflector
-
130705006135 RH Air DeflectorRH Air Deflector
-
131705006220 Front Bumper Center SupportFront Bumper Center Support
-
132705006299 Front Guard PlateFront Guard Plate
-
133705006373 Gage SupportGage Support
-
134705006385 LH BumperLH Bumper
-
137705006403 RH BumperRH Bumper
-
144705006876 Black Front BumperBlack Front Bumper
-
147705006643 LH Rear FaciaLH Rear Facia
-
148705006650 RH Rear FaciaRH Rear Facia
-
149705006691 Upper BracketUpper Bracket
-
151715001765 Dash KitDash Kit
-
152705006818 Coupling Nut, ShortCoupling Nut, Short
-
153705006819 Coupling Nut, LargeCoupling Nut, Large
-
154705006870 Heat ShieldHeat Shield
-
155705006871 Heat ShieldHeat Shield
-
156705006988 LH Mud Guard XmrLH Mud Guard Xmr
-
157705006989 RH Mud Guard XmrRH Mud Guard Xmr
-
158705003552 Front FaciaFront Facia
-
159705006492 LH Inner Fender BracketLH Inner Fender Bracket
-
160705006493 RH Inner Fender BracketRH Inner Fender Bracket
-
162708000759 Rubber StopperRubber Stopper
-
165708300649 Xmr Hood, BlackXmr Hood, Black
-
165708300657 Xmr Hood, CamoXmr Hood, Camo
-
166732610072 Push NutPush Nut
