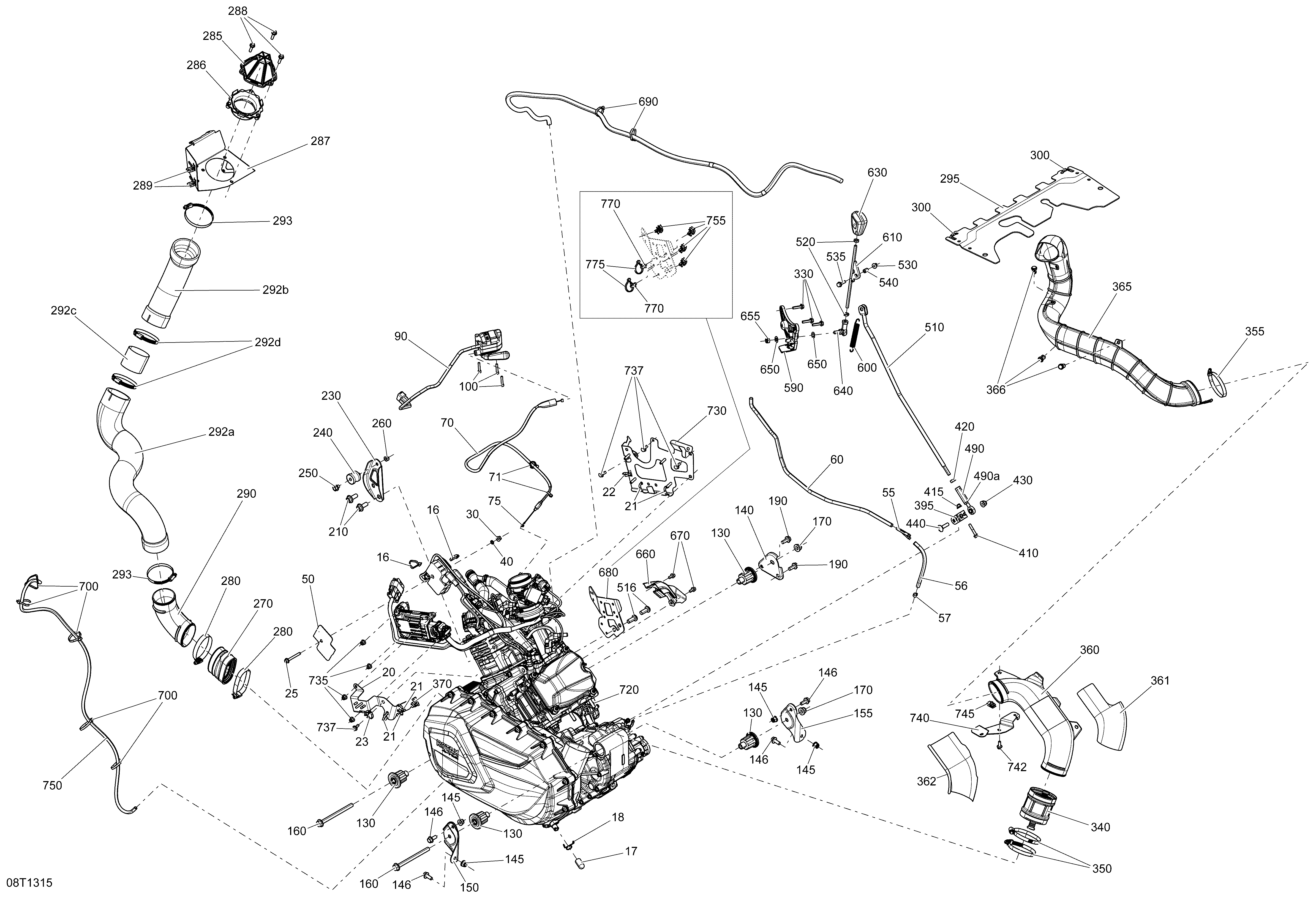

01- Engine And Engine Support для BRP Outlander 1000EFI XMR - 2013

  • №
    Артикул
    Название
  • 16
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 17
    707001185 Plug
    Plug
  • 18
    707800506 Retainer Clip
    Retainer Clip
  • 20
    707001204 Protector Connector
    Protector Connector
  • 21
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 22
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 23
    710002896 Tie-Rap Clip
    Tie-Rap Clip
  • 25
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 30
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 40
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 50
    710000073 Insulator Pad
    Insulator Pad
  • 55
    293710059 Y-Fitting
    Y-Fitting
  • 56
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 57
    293650195 Clamp, Oetiker
    Clamp, Oetiker
  • 60
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 70
    707000955 Throttle Cable
    Throttle Cable
  • 71
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 75
    707000434 Cable Guide
    Cable Guide
  • 90
    707000595 Throttle Handle
    Throttle Handle
  • 100
    205052588 Socket Head Screw M5 X 25
    Socket Head Screw M5 X 25
  • 130
    707000426 Anti-Vibration Mount
    Anti-Vibration Mount
  • 140
    707000761 Engine Bracket, Black
    Engine Bracket, Black
  • 145
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 146
    207682046 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 150
    707001191 LH Rear Engine Bracket
    LH Rear Engine Bracket
  • 155
    707001192 RH Rear Engine Bracket
    RH Rear Engine Bracket
  • 160
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 170
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 190
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 210
    207602544 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 230
    707000781 Upper Engine Bracket, Black
    Upper Engine Bracket, Black
  • 240
    707000949 Rubber Isolator
    Rubber Isolator
  • 250
    207581046 Flanged Screw M8 x 10, Scotch Grip
    Flanged Screw M8 x 10, Scotch Grip
  • 260
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 270
    707001043 Flexible Adaptor
    Flexible Adaptor
  • 280
    293650091 Norma Clamp
    Norma Clamp
  • 285
    707001130 Filter CVT
    Filter CVT
  • 286
    707001171 CVT Filter Base
    CVT Filter Base
  • 287
    707001203 CVT Filter Support
    CVT Filter Support
  • 288
    207562544 Hex. Flanged Screw M6 X 25, Scotch Grip
    Hex. Flanged Screw M6 X 25, Scotch Grip
  • 289
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 290
    707001087 CVT Air Inlet
    CVT Air Inlet
  • 292a
    707001301 CVT Air Inlet
    CVT Air Inlet
  • 292b
    707001302 CVT Air Inlet
    CVT Air Inlet
  • 292c
    707001263 Tube
    Tube
  • 292d
    293650091 Norma Clamp
    Norma Clamp
  • 293
    293650091 Norma Clamp
    Norma Clamp
  • 295
    707001129 Deflector
    Deflector
  • 300
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 330
    207562544 Hex. Flanged Screw M6 X 25, Scotch Grip
    Hex. Flanged Screw M6 X 25, Scotch Grip
  • 340
    707001168 CVT Air Outlet Adaptor
    CVT Air Outlet Adaptor
  • 350
    293650118 Norma Gear Clamp
    Norma Gear Clamp
  • 355
    293650091 Norma Clamp
    Norma Clamp
  • 360
    706600019 Air Outlet
    Air Outlet
  • 361
    707001205 Heat Shield
    Heat Shield
  • 362
    707001206 Heat Shield
    Heat Shield
  • 365
    706600020 Air Outlet
    Air Outlet
  • 366
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 370
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 395
    707000911 Lever
    Lever
  • 410
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 415
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 420
    250100144 Hex. Nut M8, Filets GA
    Hex. Nut M8, Filets GA
  • 430
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 440
    207783044 Carriage Bolt M8 X 30
    Carriage Bolt M8 X 30
  • 490
    707000966 Ball Joint Ass'y. Includes 490 to 490a
    Ball Joint Ass'y. Includes 490 to 490a
  • 490a
    232180600 Hex. Jam Nut M8
    Hex. Jam Nut M8
  • 510
    707001015 Shifter Rod
    Shifter Rod
  • 516
    205402596 Socket Head Screw M10 X 25
    Socket Head Screw M10 X 25
  • 520
    232180600 Hex. Jam Nut M8
    Hex. Jam Nut M8
  • 530
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 535
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 540
    293900019 Bushing
    Bushing
  • 590
    707000971 Shift Arm Base
    Shift Arm Base
  • 600
    707000577 Spring
    Spring
  • 610
    707000840 Shift Arm
    Shift Arm
  • 630
    707000965 Lever Button
    Lever Button
  • 640
    707000546 RH Ball Joint
    RH Ball Joint
  • 650
    506151252 Washer
    Washer
  • 655
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 660
    707000410 Cover OPS
    Cover OPS
  • 670
    210261280 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 680
    707001248 Cable Support
    Cable Support
  • 690
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 700
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 720
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 730
    707001212 Module Support
    Module Support
  • 735
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 737
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 740
    707001158 Air Outlet Support
    Air Outlet Support
  • 742
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 745
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 750
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 755
    515176795 Clip
    Clip
  • 770
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 775
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
