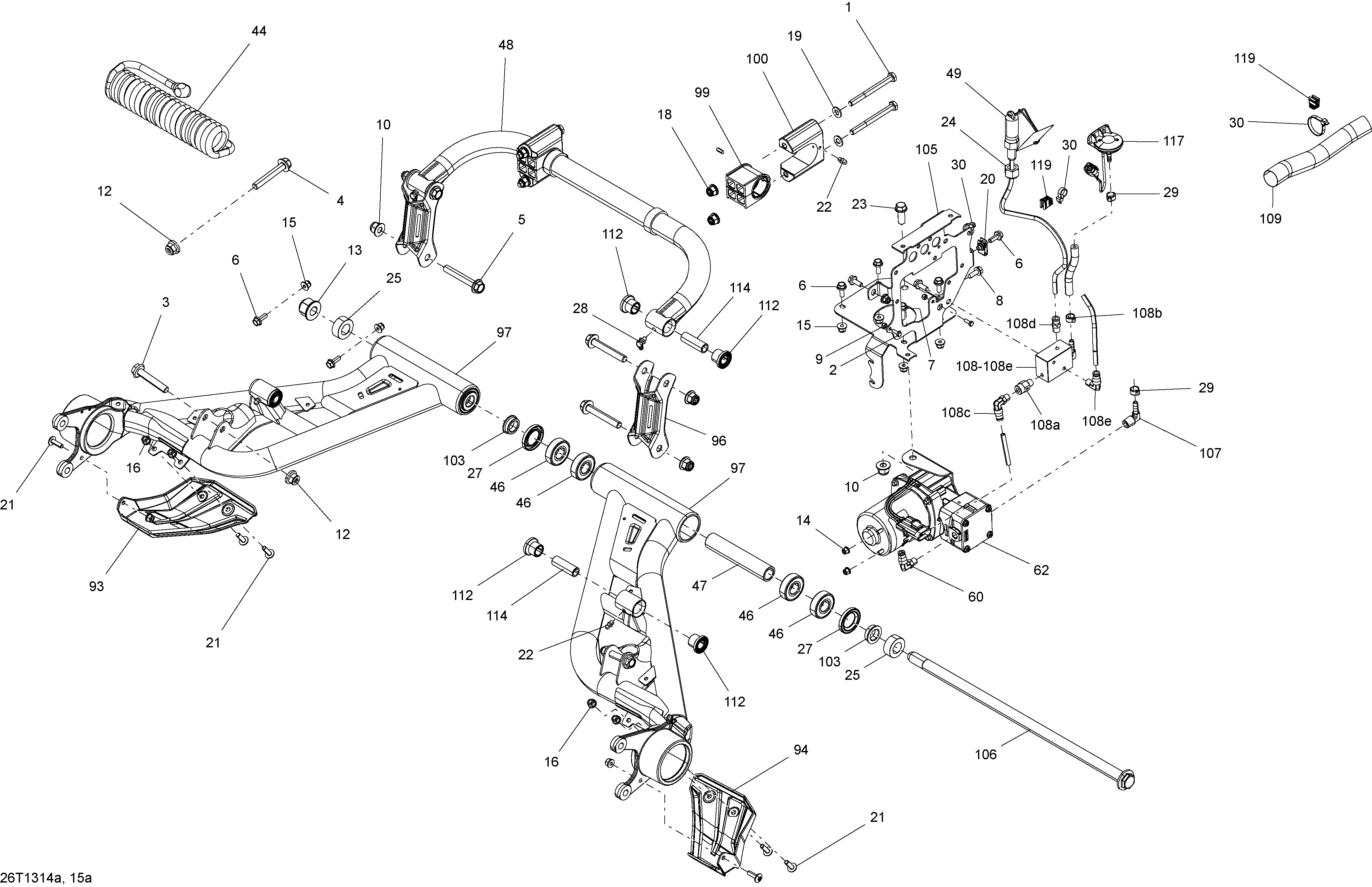

08- Rear Suspension для BRP Outlander 1000EFI XMR - 2013

  • №
    Артикул
    Название
  • 1
    207088587 Hex,. Screw M8 X 85
    Hex,. Screw M8 X 85
  • 1
    207088587 Hex,. Screw M8 X 85
    Hex,. Screw M8 X 85
  • 2
    207141244 Hex. Screw M4 X 12
    Hex. Screw M4 X 12
  • 2
    207141244 Hex. Screw M4 X 12
    Hex. Screw M4 X 12
  • 3
    207605546 Flanged Hex. Screw M10 X 55
    Flanged Hex. Screw M10 X 55
  • 3
    207605546 Flanged Hex. Screw M10 X 55
    Flanged Hex. Screw M10 X 55
  • 4
    207606046 Flanged Hex. Screw M10 X 60
    Flanged Hex. Screw M10 X 60
  • 4
    207606046 Flanged Hex. Screw M10 X 60
    Flanged Hex. Screw M10 X 60
  • 5
    207606536 Hex Flange Screw M10 X 65
    Hex Flange Screw M10 X 65
  • 5
    207606536 Hex Flange Screw M10 X 65
    Hex Flange Screw M10 X 65
  • 6
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 6
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 7
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 7
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 8
    210261680 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 8
    210261680 Screw Hex. M6.3 x 19
    Screw Hex. M6.3 x 19
  • 9
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 9
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 10
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 10
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 12
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 12
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 13
    233211466 Hex. Flanged Elastic Nut M16
    Hex. Flanged Elastic Nut M16
  • 13
    233211466 Hex. Flanged Elastic Nut M16
    Hex. Flanged Elastic Nut M16
  • 14
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 15
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 16
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 18
    233281434 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 19
    234081430 Flat Washer M8
    Flat Washer M8
  • 20
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 21
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 22
    250000315 Grease Fitting
    Grease Fitting
  • 23
    250000562 Hex Flange Screw M10 X 25
    Hex Flange Screw M10 X 25
  • 24
    250100124 Hex. Nut With Nylon 1/2'' X 20
    Hex. Nut With Nylon 1/2'' X 20
  • 25
    250200112 Flat Washer M17
    Flat Washer M17
  • 27
    293200132 Seal
    Seal
  • 28
    293550056 Grease Fitting 90°
    Grease Fitting 90°
  • 29
    293650207 Clamp Oetiker
    Clamp Oetiker
  • 30
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 44
    706000808 Auxiliary Hose
    Auxiliary Hose
  • 46
    706000826 Ball Bearing
    Ball Bearing
  • 47
    706000828 Spacer
    Spacer
  • 48
    706000988 Swaybar
    Swaybar
  • 49
    706001339 Inflater Ass'y
    Inflater Ass'y
  • 60
    706000928 Elbow 90°
    Elbow 90°
  • 62
    706000964 Compressor Ass'y
    Compressor Ass'y
  • 93
    706001009 LH Protector
    LH Protector
  • 94
    706001010 RH Protector
    RH Protector
  • 96
    706001020 Swaybar Linkage
    Swaybar Linkage
  • 97
    706000722 LH Swing Arm, Black
    LH Swing Arm, Black
  • 97
    706000723 RH Swing Arm, Black
    RH Swing Arm, Black
  • 99
    706001098 Cushion
    Cushion
  • 100
    706001099 Bushing Holder
    Bushing Holder
  • 103
    706001282 Spacer
    Spacer
  • 105
    706001351 Compressor Bracket
    Compressor Bracket
  • 106
    706001364 Axial Pivot M16
    Axial Pivot M16
  • 107
    706001405 Elbow 90°
    Elbow 90°
  • 108
    706001388 Hose Ass'y. Includes 108 to 108e
    Hose Ass'y. Includes 108 to 108e
  • 108a
    706000860 Check Valve
    Check Valve
  • 108b
    293650207 Clamp Oetiker
    Clamp Oetiker
  • 108c
    706000928 Elbow 90°
    Elbow 90°
  • 108d
    706000869 Connector
    Connector
  • 108e
    706000872 Elbow 90°
    Elbow 90°
  • 112
    703500875 Bushing Kit. Includes 114
    Bushing Kit. Includes 114
  • 114
    703500875 Bushing Kit. Includes 112
    Bushing Kit. Includes 112
  • 117
    710001825 Air Suspension Sensor
    Air Suspension Sensor
