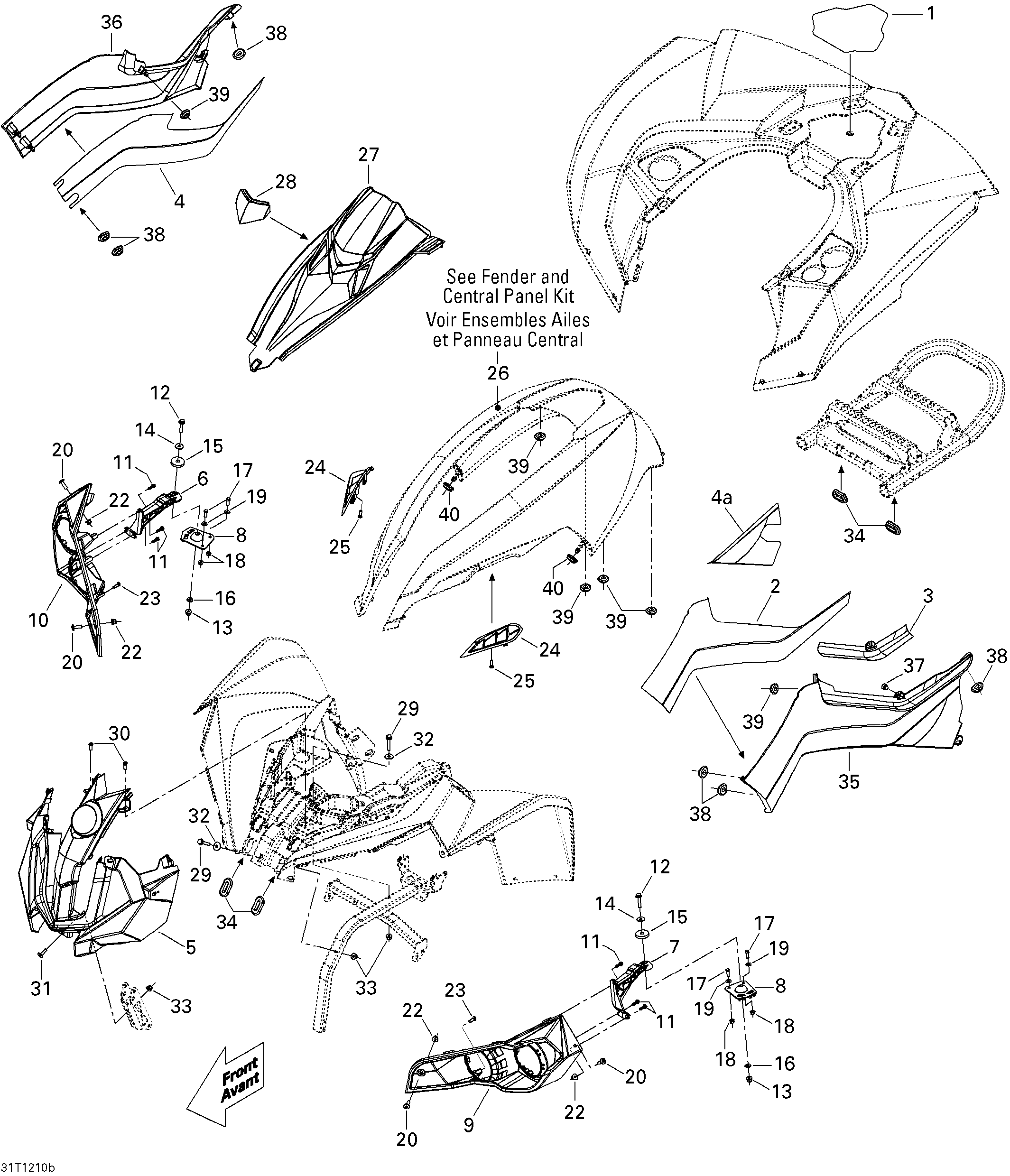

09- Body And Accessories 2 для BRP Renagade 500EFI STD - 2012

  • №
    Артикул
    Название
  • 1
    705002343 Rear Capet
    Rear Capet
  • 2
    705005620 Reflective Sheet
    Reflective Sheet
  • 3
    705005617 Reflective Sheet
    Reflective Sheet
  • 4
    705005623 Reflective Sheet
    Reflective Sheet
  • 4a
    705005622 Reflective Sheet
    Reflective Sheet
  • 5
    705003489 Front Facia
    Front Facia
  • 6
    705002424 RH Light Support
    RH Light Support
  • 7
    705002425 LH Light Support
    LH Light Support
  • 8
    705002405 Ball Joint
    Ball Joint
  • 9
    705004508 LH Front Facia
    LH Front Facia
  • 10
    705004509 RH Front Facia
    RH Front Facia
  • 11
    241151640 Hex. Flanged Screw K50 X 16
    Hex. Flanged Screw K50 X 16
  • 12
    207663044 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 13
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 14
    391302000 Flat Washer
    Flat Washer
  • 15
    293830037 Rubber Washer
    Rubber Washer
  • 16
    224061121 Flat Washer
    Flat Washer
  • 17
    207151644 Hex. Screw M5 X 16
    Hex. Screw M5 X 16
  • 18
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 19
    391301700 Washer
    Washer
  • 20
    250000284 Torx Screw M6 x 25
    Torx Screw M6 x 25
  • 20
    250000261 Torx Screw M6 X 16. Europe
    Torx Screw M6 X 16. Europe
  • 22
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 22
    233261414 Hex. Flanged Elastic Nut M6. Europe
    Hex. Flanged Elastic Nut M6. Europe
  • 23
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 24
    705002276 LH Grill
    LH Grill
  • 24
    705002277 RH Grill
    RH Grill
  • 25
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 26
    715000752 Yellow, Central Pannel. Yellow
    Yellow, Central Pannel. Yellow
  • 26
    715001461 Central Pannel. White North America, White International
    Central Pannel. White North America, White International
  • 26
    715001463 Central Pannel. White Europe
    Central Pannel. White Europe
  • 27
    705003556 Dashboard
    Dashboard
  • 28
    705002353 Cap. North America, International
    Cap. North America, International
  • 29
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 30
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 31
    250000284 Torx Screw M6 x 25
    Torx Screw M6 x 25
  • 32
    224061201 Flat Washer
    Flat Washer
  • 33
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 34
    705003668 Oblong Grommet
    Oblong Grommet
  • 35
    705002958 LH Lateral Panel
    LH Lateral Panel
  • 36
    705002959 RH Lateral Panel
    RH Lateral Panel
  • 37
    293830005 Rubber Plug
    Rubber Plug
  • 38
    705000321 Oval Washer
    Oval Washer
  • 39
    705003264 Grommet
    Grommet
  • 40
    705000321 Oval Washer
    Oval Washer
