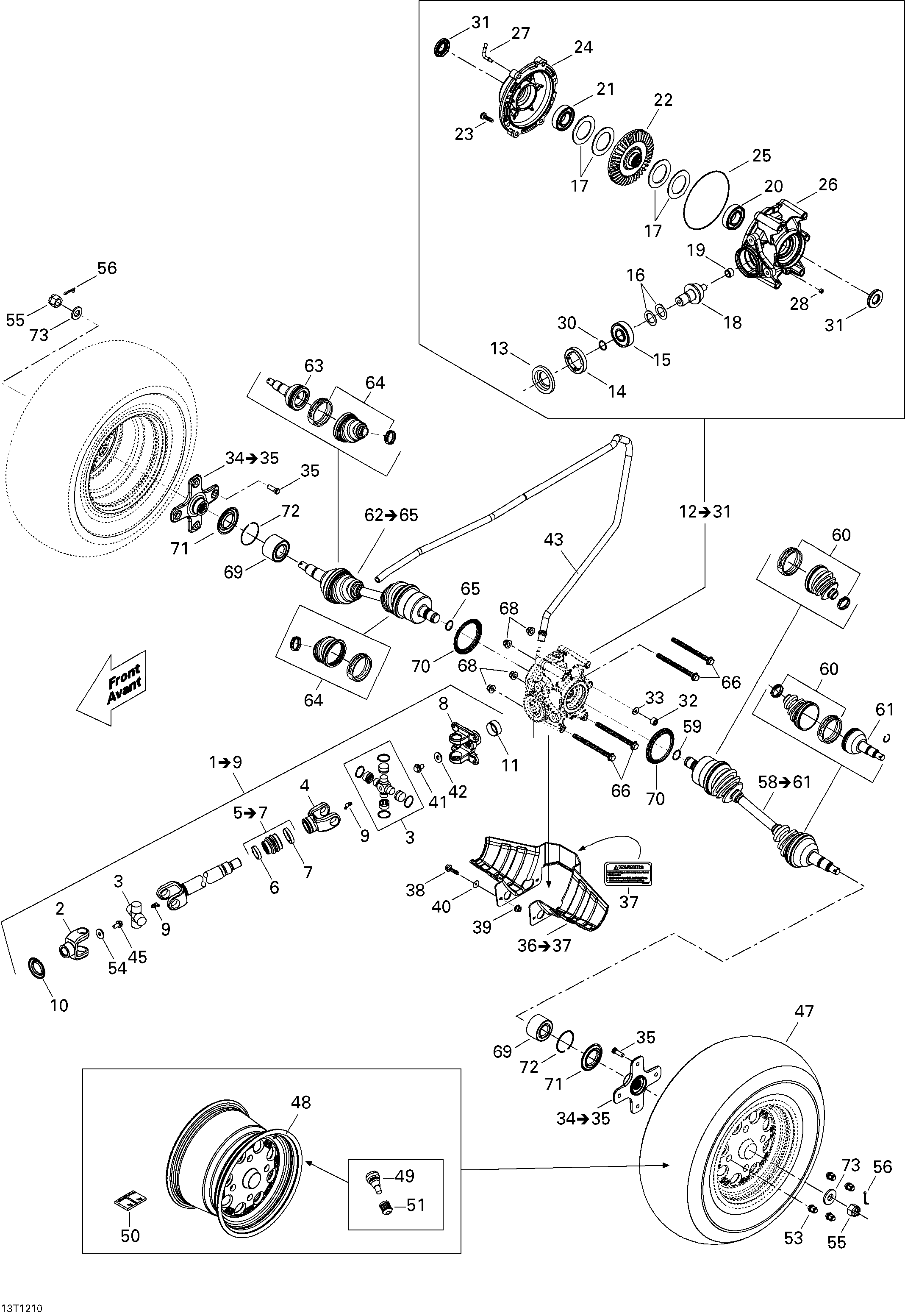

08- Drive System, Rear для BRP Renagade 500EFI STD - 2012
-
№АртикулНазвание
-
1703500767 Rear Propeller Shaft Kit. Includes 1 to 11Rear Propeller Shaft Kit. Includes 1 to 11
-
2705501372 Differential Fixed JointDifferential Fixed Joint
-
3703000022 Unit Pack KitUnit Pack Kit
-
4705501072 Sliding JointSliding Joint
-
5703500255 Rubber Boot KitRubber Boot Kit
-
6293650138 Oetiker ClampOetiker Clamp
-
7293650138 Oetiker ClampOetiker Clamp
-
8705500526 Disc JointDisc Joint
-
9705500841 Grease FittingGrease Fitting
-
10705501123 ProtectorProtector
-
11705400036 Wear RingWear Ring
-
12705501569 Rear Differential Ass'y. Includes 12 to 31Rear Differential Ass'y. Includes 12 to 31
-
13705400027 Oil SealOil Seal
-
14705500987 NutNut
-
15705500260 Ball BearingBall Bearing
-
16703500049 Pinion Shim KitPinion Shim Kit
-
16705501163 Pinion Gear Shim 2.12mmPinion Gear Shim 2.12mm
-
17703500548 Differential Shim KitDifferential Shim Kit
-
18705501570 10Teeth Pinion10Teeth Pinion
-
19705501408 Needle BearingNeedle Bearing
-
20705500749 Ball BearingBall Bearing
-
21705501389 Ball BearingBall Bearing
-
22705501403 36Teeth Pinion36Teeth Pinion
-
23705500892 ScrewScrew
-
24705501393 Rear CoverRear Cover
-
25705500265 SealSeal
-
26705501395 Pinion Rear CoverPinion Rear Cover
-
27705500893 Vent ValveVent Valve
-
28705500894 Drain PlugDrain Plug
-
30705500267 O-RingO-Ring
-
31705501196 Oil SealOil Seal
-
32250400041 Screw PlugScrew Plug
-
33705500506 Copper WasherCopper Washer
-
34705501131 Wheel Hub Ass'y. Includes 34 to 35Wheel Hub Ass'y. Includes 34 to 35
-
35250300034 Wheel StudWheel Stud
-
36703500722 Protector Kit. Includes 36 to 37Protector Kit. Includes 36 to 37
-
37704900009 Warning Decal, TrailerWarning Decal, Trailer
-
37704901489 Warning Decal, Maximum TowingWarning Decal, Maximum Towing
-
38207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
39233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40391302000 Flat WasherFlat Washer
-
41250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
42250200102 Flat Washer M12Flat Washer M12
-
43415080200 Hose, PolyurethaneHose, Polyurethane
-
45250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
47705500820 Rear Tire. EuropeRear Tire. Europe
-
47705500926 Rear Tire. InternationalRear Tire. International
-
47705500926 Rear Tire. North AmericaRear Tire. North America
-
48705500837 Rear RimRear Rim
-
49705400193 Rim Valve with CapRim Valve with Cap
-
50705501385 1/2 OZ Weight1/2 OZ Weight
-
51293000110 Valve CapValve Cap
-
53250100082 Chrome Wheel Nut M10 X 1.25Chrome Wheel Nut M10 X 1.25
-
54250200102 Flat Washer M12Flat Washer M12
-
55250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
56250400036 Cotter PinCotter Pin
-
58705500979 LH CV Joint Ass'y. Includes 58 to 61LH CV Joint Ass'y. Includes 58 to 61
-
59705500845 CirclipCirclip
-
60705500870 Boot KitBoot Kit
-
61705500980 CV JointCV Joint
-
62705500983 RH CV Joint Ass'y. Includes 62 to 65RH CV Joint Ass'y. Includes 62 to 65
-
63705500980 CV JointCV Joint
-
64705500870 Boot KitBoot Kit
-
65705500845 CirclipCirclip
-
66250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
68233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
69293350040 Cone BearingCone Bearing
-
70705501124 Wear RingWear Ring
-
71705501121 Wear SleeveWear Sleeve
-
72293370019 CirclipCirclip
-
73250200049 Spring WasherSpring Washer
