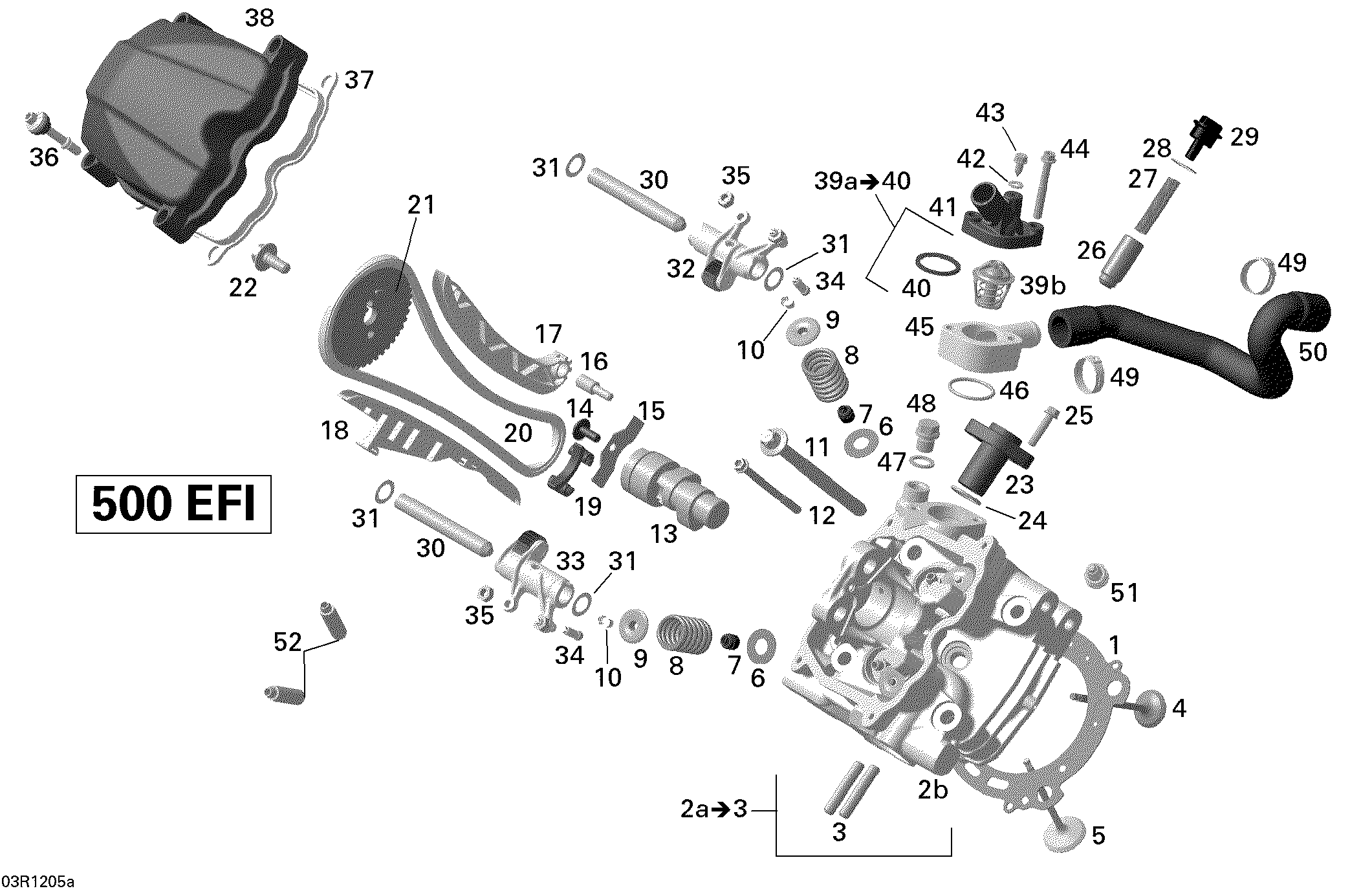

01- Cylinder Head, Front для BRP Renagade 500EFI STD - 2012
-
№АртикулНазвание
-
1420630850 Cylinder Head GasketCylinder Head Gasket
-
2a420623941 Cylinder Front Ass'y. Includes 2a to 3Cylinder Front Ass'y. Includes 2a to 3
-
3420941014 Stud M8 x 26Stud M8 x 26
-
4420254351 Intake Valve, 31 mmIntake Valve, 31 mm
-
5420254361 Exhaust Valve, 27 mmExhaust Valve, 27 mm
-
6420627770 Thrust WasherThrust Washer
-
7420230515 Valve Stem SealValve Stem Seal
-
8420239295 Valve SpringValve Spring
-
9420254132 Valve Spring RetainerValve Spring Retainer
-
10420254120 Cotter ValveCotter Valve
-
11420641550 Torx Screw M10 X 140Torx Screw M10 X 140
-
12420641228 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
13420620747 CamshaftCamshaft
-
14420241525 Torx Screw M6 X 16Torx Screw M6 X 16
-
15420627743 Holding StripHolding Strip
-
16420240941 Bearing Screw M6Bearing Screw M6
-
17420436015 Chain Tension GuideChain Tension Guide
-
18420236581 Chain GuideChain Guide
-
19420236350 Chain GuideChain Guide
-
20420297062 Silent ChainSilent Chain
-
21420254433 Camshaft Sprocket, 42 TeethCamshaft Sprocket, 42 Teeth
-
22420241721 Hex. Collar Screw M8 X 20Hex. Collar Screw M8 X 20
-
23420236510 Chain Tensioner HousingChain Tensioner Housing
-
24420430370 O-RingO-Ring
-
25420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
26420236520 Chain Tensioner PlungerChain Tensioner Plunger
-
27420238120 SpringSpring
-
28420250890 O-RingO-Ring
-
29420641150 Plug ScrewPlug Screw
-
30420229712 Pin #12, Small, M6 X 90Pin #12, Small, M6 X 90
-
31420944382 ShimShim
-
32420254905 Rocker Arm InletRocker Arm Inlet
-
33420254915 Rocker Arm ExhaustRocker Arm Exhaust
-
34420241335 Adjustment Screw M6 X 0.75Adjustment Screw M6 X 0.75
-
35420242910 Hex. Nut M6Hex. Nut M6
-
36420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
37420630260 GasketGasket
-
38420610395 Valve CoverValve Cover
-
39a420222494 Thermostat 65° With Gasket Ass'y. Includes 39a to 40Thermostat 65° With Gasket Ass'y. Includes 39a to 40
-
40420650300 Thermostat GasketThermostat Gasket
-
41420222691 Thermostat CoverThermostat Cover
-
42420650255 Gasket RingGasket Ring
-
43420441621 Screw M5 X 16Screw M5 X 16
-
44420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
45420222890 Connection SocketConnection Socket
-
46420631300 O-RingO-Ring
-
47420250640 Copper WasherCopper Washer
-
48420841921 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
49420251573 Gear ClampGear Clamp
-
50420822352 Water TubeWater Tube
-
51707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
52420254374 Valve GuideValve Guide
