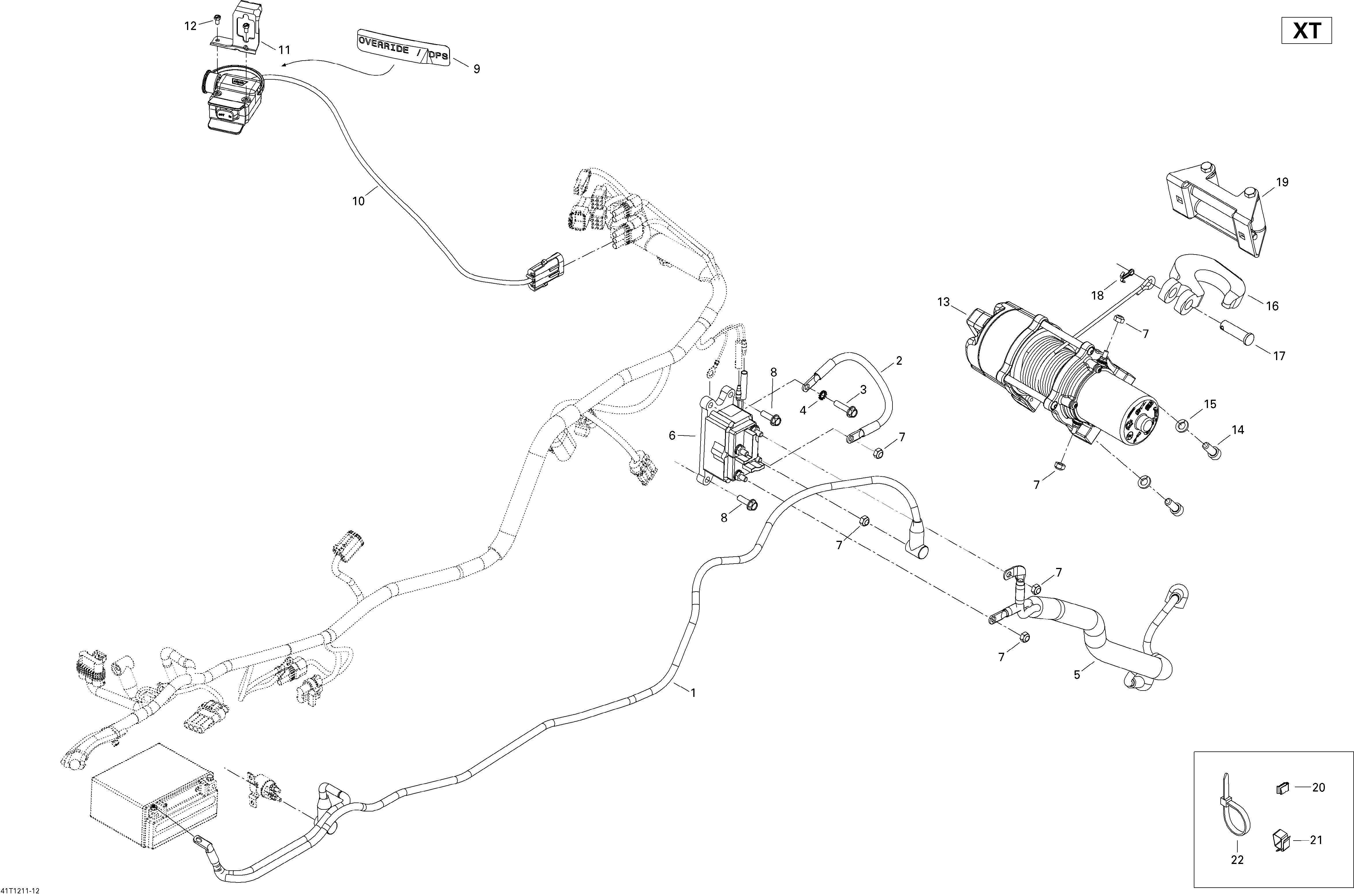

10- Electrical Accessories XT для BRP Outlander STD, XT, 800R EFI - 2012
-
№АртикулНазвание
-
1710001748 Battery Positive CableBattery Positive Cable
-
2710002561 Negative CableNegative Cable
-
3210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
4250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
5710002560 Winch CablesWinch Cables
-
6710001000 Winch SolenoidWinch Solenoid
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
9704901835 DPS Label. EuropeDPS Label. Europe
-
10710002724 Winch InterrupterWinch Interrupter
-
11710002631 Winch Interrupter SupportWinch Interrupter Support
-
12250000153 Hex. Cap Screw 6-32 X 1/4''Hex. Cap Screw 6-32 X 1/4''
-
13705003296 WinchWinch
-
14205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
15234181401 Lock Washer 8 mmLock Washer 8 mm
-
16705002329 HookHook
-
17250400021 Clevis PinClevis Pin
-
18250400022 Cotter PinCotter Pin
-
19715000011 Winch RollerWinch Roller
-
20710000992 ClipClip
-
21414227300 ClipClip
-
22414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
22293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
22293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
22293750041 Tie-rap 627 mmTie-rap 627 mm
