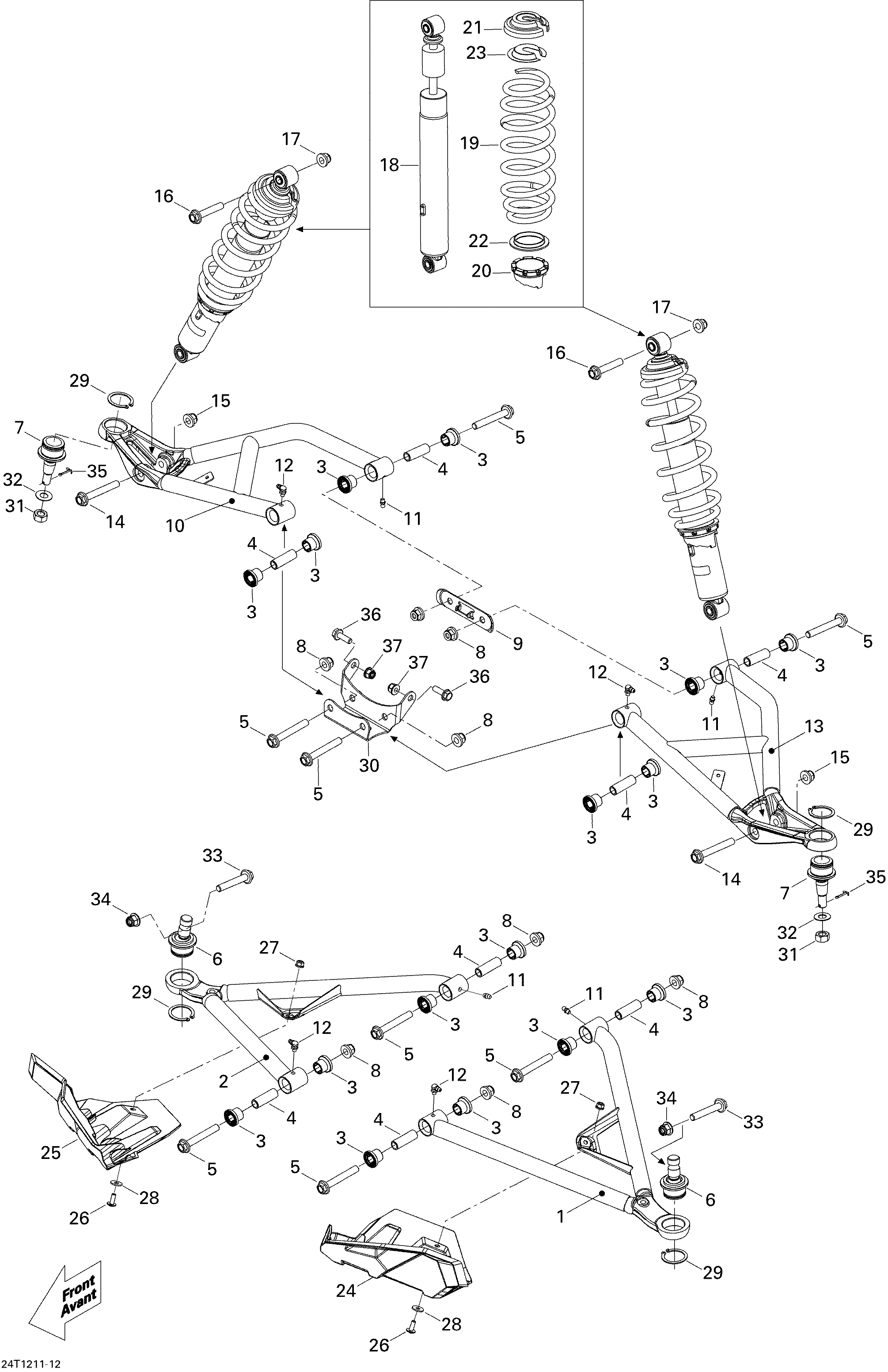

07- Front Suspension для BRP Outlander STD, XT, 800R EFI - 2012

  • №
    Артикул
    Название
  • 1
    706200955 LH Lower Arm
    LH Lower Arm
  • 2
    706200984 RH Lower Arm
    RH Lower Arm
  • 3
    703500875 Bushing Kit. Includes 4
    Bushing Kit. Includes 4
  • 4
    703500875 Bushing Kit. Includes 3
    Bushing Kit. Includes 3
  • 5
    207607046 Hex. Flanged Screw M10 X 70
    Hex. Flanged Screw M10 X 70
  • 6
    706201393 Ball Joint
    Ball Joint
  • 7
    706201394 Ball Joint
    Ball Joint
  • 8
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 9
    706200998 Front Suspension Cross Plate
    Front Suspension Cross Plate
  • 10
    706201527 RH Upper Arm
    RH Upper Arm
  • 11
    408200700 Grease Fitting
    Grease Fitting
  • 12
    293550056 Grease Fitting 90°
    Grease Fitting 90°
  • 13
    706201526 LH Upper Arm
    LH Upper Arm
  • 14
    207607587 Flanged Hex. Screw M10 X 75
    Flanged Hex. Screw M10 X 75
  • 15
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 16
    207605546 Flanged Hex. Screw M10 X 55
    Flanged Hex. Screw M10 X 55
  • 17
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 18
    706201170 Shock Absorber
    Shock Absorber
  • 19
    706201171 Black Spring. STD
    Black Spring. STD
  • 19
    706201173 Black Spring. XT
    Black Spring. XT
  • 20
    505070150 Adjustment Cam
    Adjustment Cam
  • 21
    706200881 Spring Stopper
    Spring Stopper
  • 22
    503187500 Spring Guide
    Spring Guide
  • 23
    706200785 Cap
    Cap
  • 24
    706201303 LH Protector
    LH Protector
  • 25
    706201304 RH Protector
    RH Protector
  • 26
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 27
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 28
    234062670 Flat Washer
    Flat Washer
  • 29
    293370035 Circlip
    Circlip
  • 30
    705202285 Upper Front Holder
    Upper Front Holder
  • 31
    250100099 Nut M12
    Nut M12
  • 32
    706200281 Hardened Washer
    Hardened Washer
  • 33
    207606044 Hex. Flange Screw M10 X 60
    Hex. Flange Screw M10 X 60
  • 34
    233201434 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 35
    211400017 Cotter Pin
    Cotter Pin
  • 36
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 37
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
