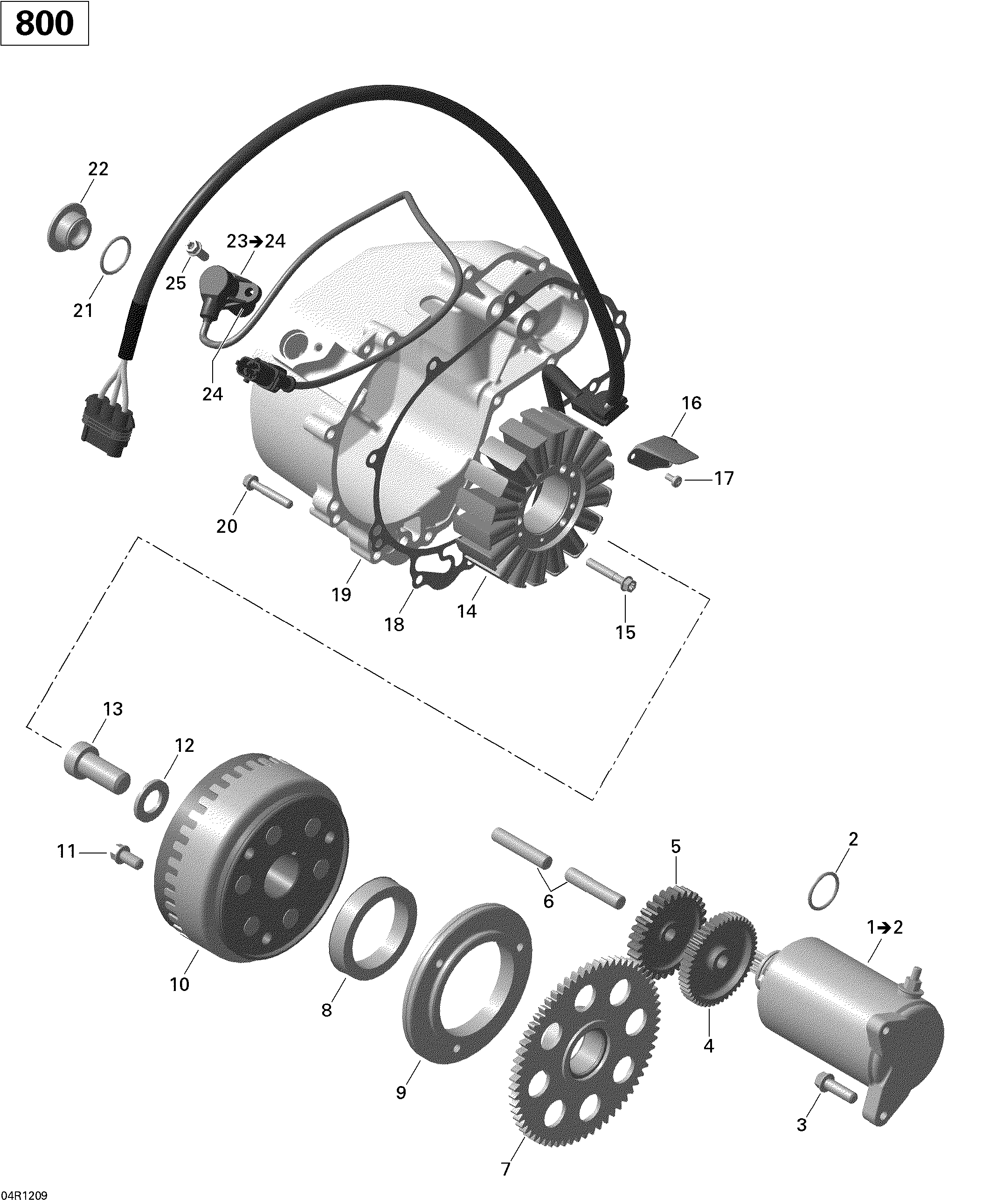

03- Magneto And Electric Starter Outlander для BRP Outlander STD, XT, 800R EFI - 2012
-
№АртикулНазвание
-
1420684560 Starter Ass'y. Includes 1 to 2Starter Ass'y. Includes 1 to 2
-
2420250140 O-RingO-Ring
-
3420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
4420634741 Double GearDouble Gear
-
5420634605 Gear, 30 TeethGear, 30 Teeth
-
6420229302 Location PinLocation Pin
-
7420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
8420659112 Sprag ClutchSprag Clutch
-
9420659261 Sprag Clutch HousingSprag Clutch Housing
-
10420296906 Flywheel. Outlander STDFlywheel. Outlander STD
-
10420685647 Flywheel. Outlander XTFlywheel. Outlander XT
-
10420685647 Flywheel. Outlander XT-PFlywheel. Outlander XT-P
-
11420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
12420627270 ShimShim
-
13420241549 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
14420685920 Stator Plate. Outlander STDStator Plate. Outlander STD
-
14420685632 Stator Plate. Outlander XTStator Plate. Outlander XT
-
14420685632 Stator Plate. Outlander XT-PStator Plate. Outlander XT-P
-
15420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
16420251880 Cable Inner CoverCable Inner Cover
-
17420240195 Tapping Screw M4 X 8Tapping Screw M4 X 8
-
18420651200 GasketGasket
-
19420611132 CoverCover
-
20420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
21420430782 O-RingO-Ring
-
22420241630 Screw PlugScrew Plug
-
23420966570 Crankshaft Position Sensor Ass'y. Includes 23 to 24Crankshaft Position Sensor Ass'y. Includes 23 to 24
-
24420431580 O-RingO-Ring
-
25420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
