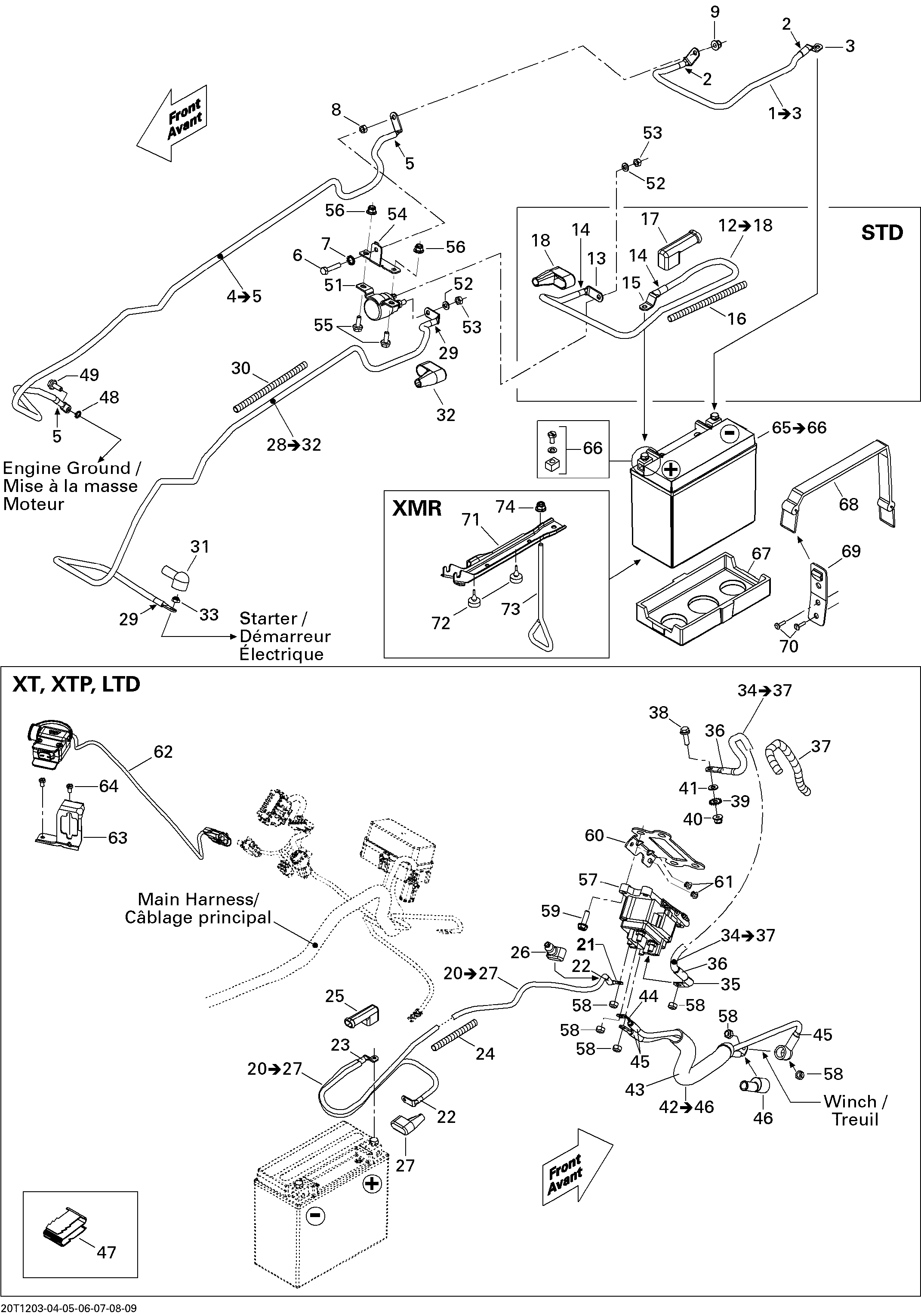

10- Electrical System для BRP Outlander MAX 500EFI STD & XT - 2012
-
№АртикулНазвание
-
1710000830 Ground Cable Ass'y, Battery/Frame. Includes 1 to 3Ground Cable Ass'y, Battery/Frame. Includes 1 to 3
-
2710000483 Shrink TubingShrink Tubing
-
3710000518 Open BarrelOpen Barrel
-
4710000844 Ground Cable. MAX, XMR, Includes 4 to 5Ground Cable. MAX, XMR, Includes 4 to 5
-
5710000483 Shrink TubingShrink Tubing
-
6207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
7234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
8232061414 Hex. Nut M6Hex. Nut M6
-
9233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
12710001822 Positive Cable Ass'y. STD, Includes 12 to 18Positive Cable Ass'y. STD, Includes 12 to 18
-
14710000483 Shrink TubingShrink Tubing
-
16710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
17710001829 Protector CapProtector Cap
-
18710001817 Protector CapProtector Cap
-
20710001824 Positive Cable Ass'y. MAX XT, XTP, XMR, , LTD, Includes 20 to 27Positive Cable Ass'y. MAX XT, XTP, XMR, , LTD, Includes 20 to 27
-
21710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
22710000483 Shrink TubingShrink Tubing
-
23275500578 Shrink TubingShrink Tubing
-
24710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
25710001829 Protector CapProtector Cap
-
26710001828 Protector CapProtector Cap
-
27710001817 Protector CapProtector Cap
-
28710001818 Positive Cable. Includes 28 to 32Positive Cable. Includes 28 to 32
-
29710000483 Shrink TubingShrink Tubing
-
30710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
31710000526 Protector CapProtector Cap
-
32710001817 Protector CapProtector Cap
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
34710000455 Negative Cable Ass'y. XT, XTP, XMR, LTD, Includes 34 to 37Negative Cable Ass'y. XT, XTP, XMR, LTD, Includes 34 to 37
-
35710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
36710000483 Shrink TubingShrink Tubing
-
37710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
38207662044 Hex. Flanged Screw M6 X 20. XT, XTP, XMR, LTD,Hex. Flanged Screw M6 X 20. XT, XTP, XMR, LTD,
-
39250200041 Lock Washer Serrated M6. XT, XTP, XMR, LTD,Lock Washer Serrated M6. XT, XTP, XMR, LTD,
-
40233261414 Hex. Flanged Elastic Nut M6. XT, XTP, XMR, LTD,Hex. Flanged Elastic Nut M6. XT, XTP, XMR, LTD,
-
41224061121 Flat Washer. XT, XTP, XMR, LTD,Flat Washer. XT, XTP, XMR, LTD,
-
42710001615 Winch Cable Ass'y. XT, XTP, XMR, LTD, Includes 42 to 46Winch Cable Ass'y. XT, XTP, XMR, LTD, Includes 42 to 46
-
43409901600 Tubing 19 mmTubing 19 mm
-
44710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
45710000483 Shrink TubingShrink Tubing
-
46515175919 Protector CapProtector Cap
-
47710000992 Clip. XT, XTP, XMR, LTD,Clip. XT, XTP, XMR, LTD,
-
48234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
49207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
51710001364 Starter RelayStarter Relay
-
52234161601 Lock Washer Helical M6Lock Washer Helical M6
-
53232061600 Hex. Nut M6Hex. Nut M6
-
54710001260 Solenoid SupportSolenoid Support
-
55207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
56233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
57710001000 Winch Solenoid. XT, XTP, XMR, LTD,Winch Solenoid. XT, XTP, XMR, LTD,
-
58232561434 Elastic Stop Nut M6. XT, XTP, XMR, LTD,Elastic Stop Nut M6. XT, XTP, XMR, LTD,
-
59210262080 Hex. Forming Screw M6 X 20. XT, XTP, XMR, LTD,Hex. Forming Screw M6 X 20. XT, XTP, XMR, LTD,
-
60710001596 Bracket Winch Relay. XT, XTP, XMR, LTD,Bracket Winch Relay. XT, XTP, XMR, LTD,
-
61390406500 Pop Rivet 3/16''. XT, XTP, XMR, LTD,Pop Rivet 3/16''. XT, XTP, XMR, LTD,
-
62710002724 Winch Interrupter. XT, XTP, XMR, LTD,Winch Interrupter. XT, XTP, XMR, LTD,
-
63710002631 Winch Interrupter Support. XT, XTP, XMR, LTD,Winch Interrupter Support. XT, XTP, XMR, LTD,
-
64250000153 Hex. Cap Screw 6-32 X 1/4''. XT, XTP, XMR, LTD,Hex. Cap Screw 6-32 X 1/4''. XT, XTP, XMR, LTD,
-
65410301203 Battery Ass'y, 18 Amperes. Includes 65 to 66Battery Ass'y, 18 Amperes. Includes 65 to 66
-
66295500849 Battery Fastener KitBattery Fastener Kit
-
67710000279 Insulator PadInsulator Pad
-
68293850097 Retainer StrapRetainer Strap
-
69293850030 Strap ClipStrap Clip
-
70390402400 Pop Rivet 3/16''Pop Rivet 3/16''
