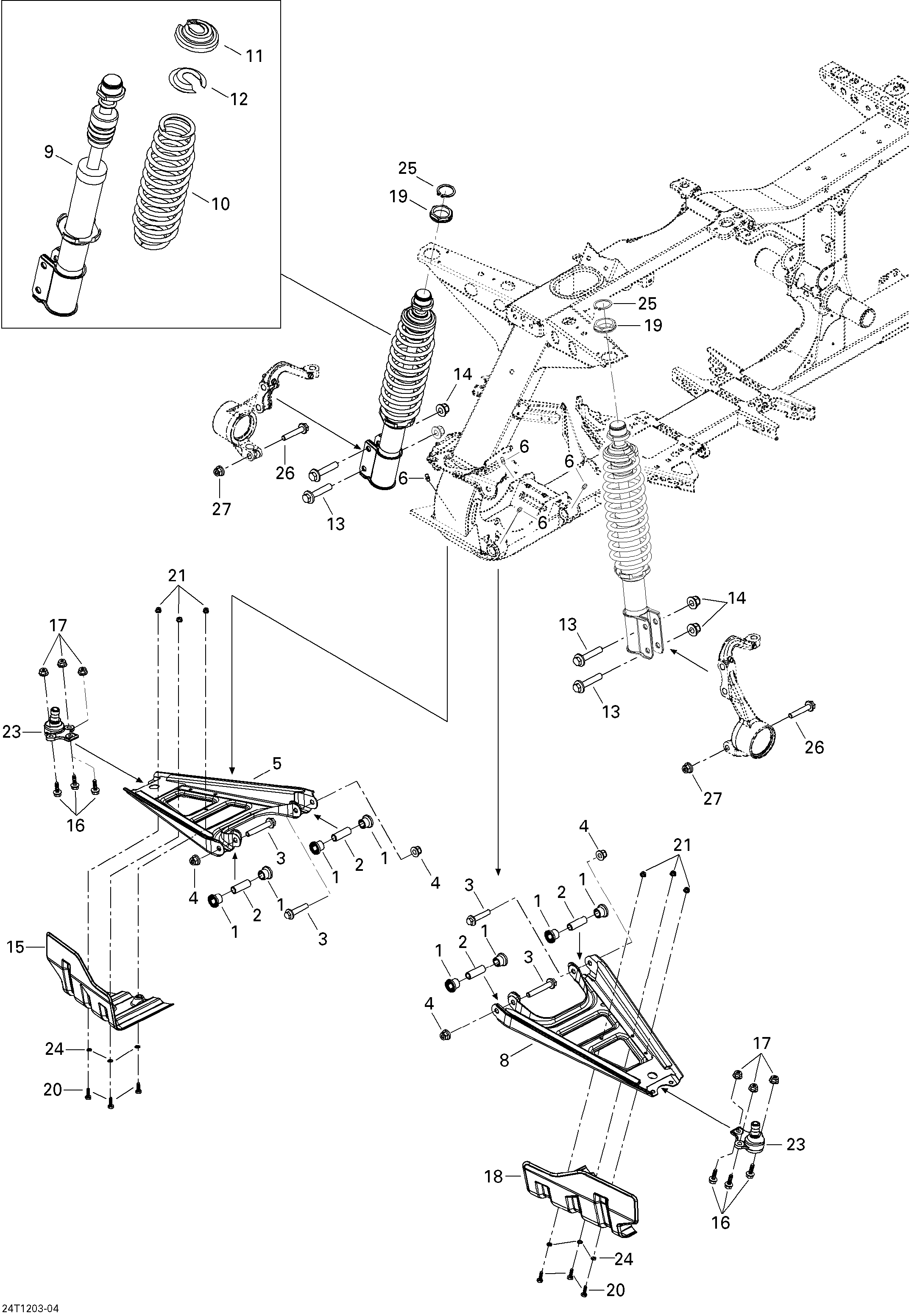

07- Front Suspension для BRP Outlander MAX 500EFI STD & XT - 2012

  • №
    Артикул
    Название
  • 1
    706200181 Cushion
    Cushion
  • 2
    706200678 Inner Bushing
    Inner Bushing
  • 3
    207607046 Hex. Flanged Screw M10 X 70
    Hex. Flanged Screw M10 X 70
  • 4
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 5
    706201050 Suspension Arm, Black
    Suspension Arm, Black
  • 6
    408200700 Grease Fitting
    Grease Fitting
  • 8
    706201050 Suspension Arm, Black
    Suspension Arm, Black
  • 9
    706201108 Front Shock
    Front Shock
  • 10
    706200824 Front Spring. XT
    Front Spring. XT
  • 10
    706200825 Front Spring. STD
    Front Spring. STD
  • 11
    706200882 Stopper Spring
    Stopper Spring
  • 12
    706200793 Cap
    Cap
  • 13
    207626046 Hex. Flanged Screw M12 X 60
    Hex. Flanged Screw M12 X 60
  • 14
    233221414 Hex. Flanged Elastic Nut M12
    Hex. Flanged Elastic Nut M12
  • 15
    706200214 RH Protector
    RH Protector
  • 16
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 17
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 18
    706200213 LH Protector
    LH Protector
  • 19
    706200443 Nut
    Nut
  • 20
    207151644 Hex. Screw M5 X 16
    Hex. Screw M5 X 16
  • 21
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 23
    706200444 Joint Attachment
    Joint Attachment
  • 24
    391301700 Washer
    Washer
  • 25
    293370009 Circlip 32 mm
    Circlip 32 mm
  • 26
    207604544 Hex. Flanged Screw M10 X 45
    Hex. Flanged Screw M10 X 45
  • 27
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
