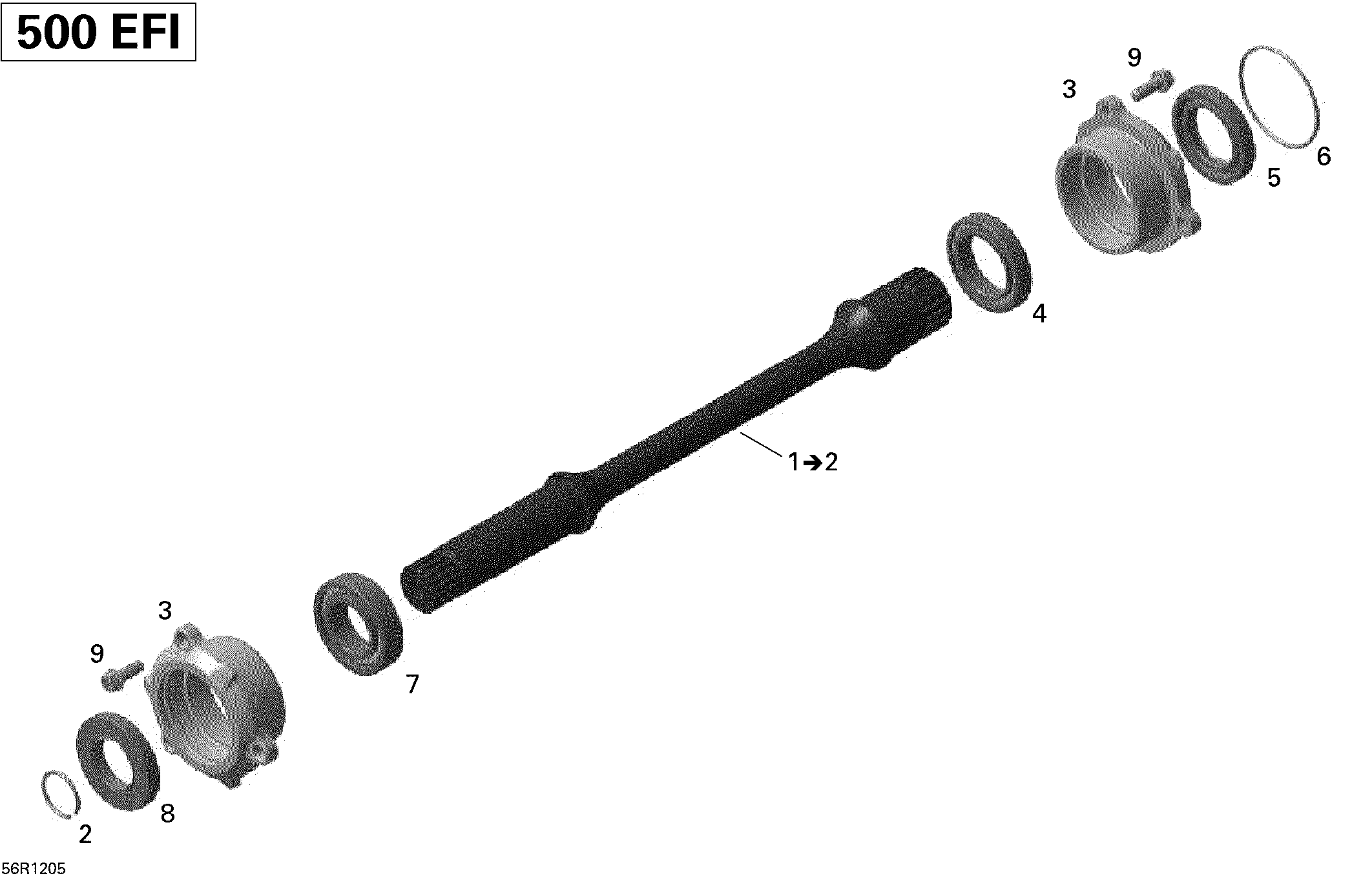

08- Drive Shaft для BRP Outlander MAX 500EFI STD & XT - 2012
-
№АртикулНазвание
-
1420620517 Drive Shaft Ass'y. Includes 1 to 2Drive Shaft Ass'y. Includes 1 to 2
-
2420245010 CirclipCirclip
-
3420611221 Bearing CoverBearing Cover
-
4420632275 Ball BearingBall Bearing
-
5420850055 Oil SealOil Seal
-
6420230305 O-RingO-Ring
-
7420232341 Ball BearingBall Bearing
-
8420430589 Oil SealOil Seal
-
9420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
