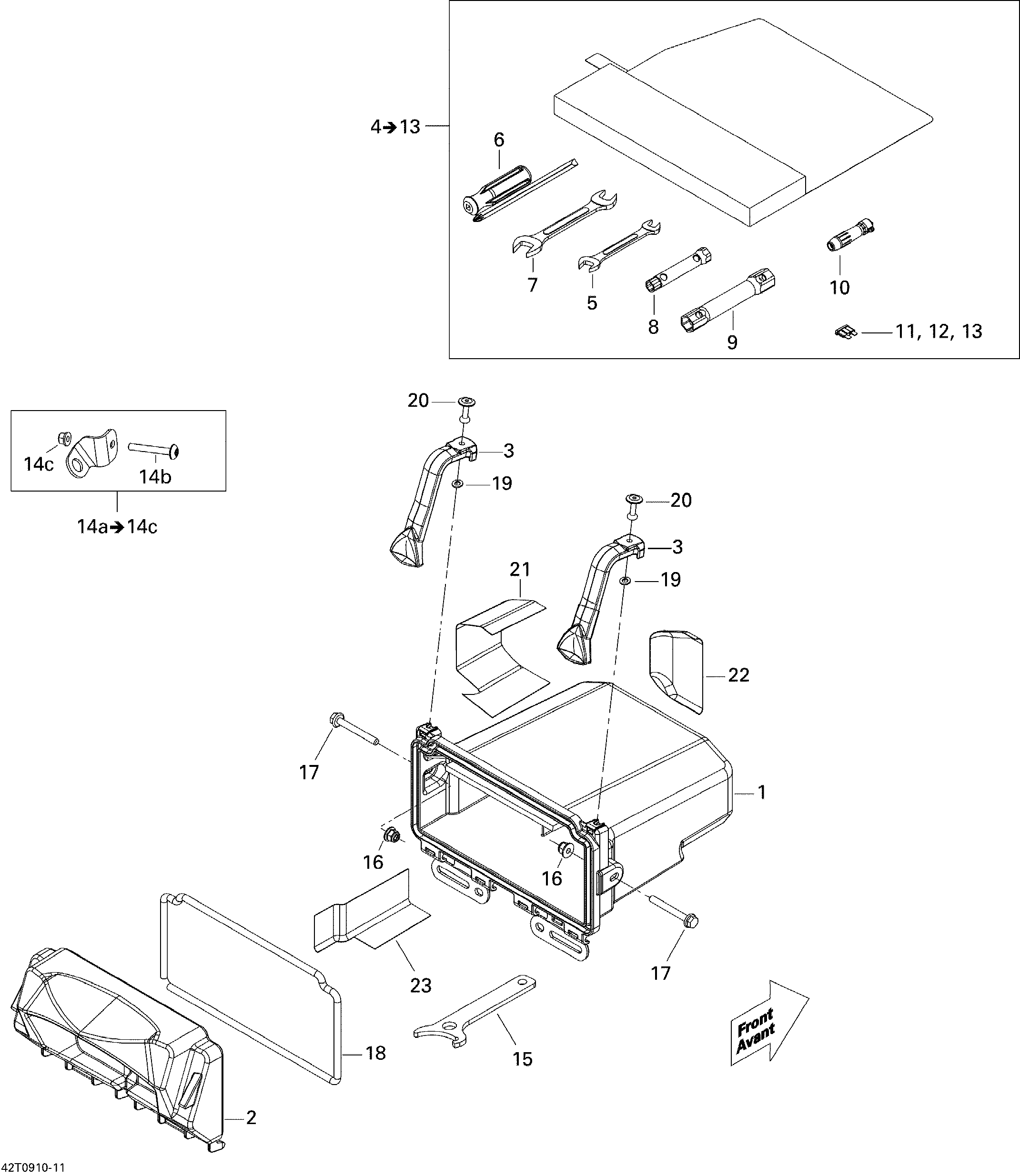

09- Rear Cargo Box для BRP Renegade 800R EFI STD - 2009
-
№АртикулНазвание
-
1708200074 Storage BoxStorage Box
-
2708200076 Storage Box CoverStorage Box Cover
-
3517302448 Panel LatchPanel Latch
-
4704700096 Tool Kit. Includes 4 to 13Tool Kit. Includes 4 to 13
-
5529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
6529000004 Driver ScrewDriver Screw
-
7529000003 Fork Wrench 15/17 mmFork Wrench 15/17 mm
-
8529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
9295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
10704700003 Pressure GaugePressure Gauge
-
11410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
12409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
13278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
14a708200079 Flag Support Kit. Includes 14a to 14cFlag Support Kit. Includes 14a to 14c
-
14b250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
14c233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
15529000035 Adjustement WrenchAdjustement Wrench
-
16233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
17207665034 Hex. Flanged ScrewHex. Flanged Screw
-
18708200077 Neoprene SealNeoprene Seal
-
19250200081 Flat WasherFlat Washer
-
20293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
21708200087 Front Reflective SheetFront Reflective Sheet
-
22708200088 Reflective SheetReflective Sheet
-
23708200083 Rear Reflective SheetRear Reflective Sheet
