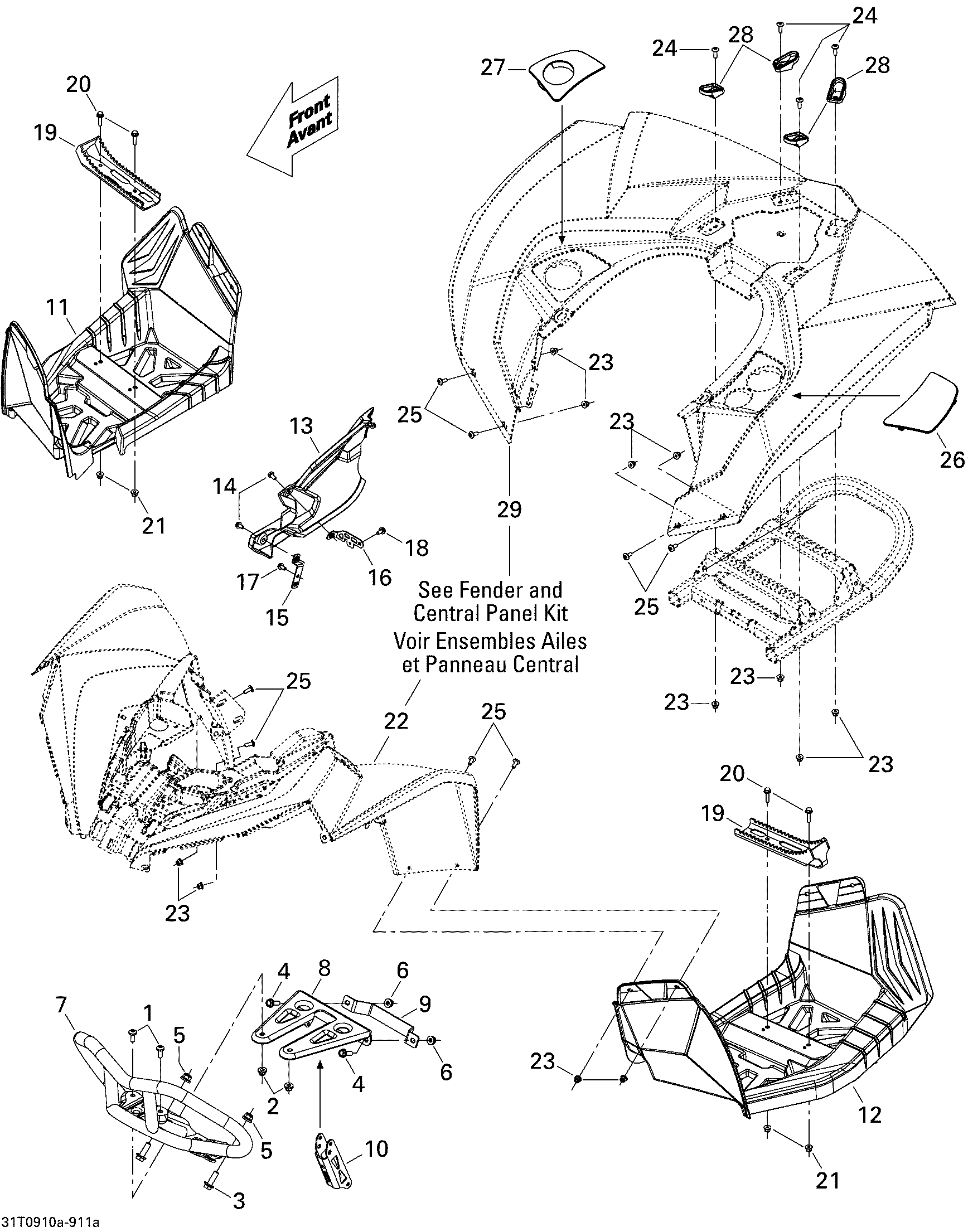

09- Body And Accessories 1 для BRP Renegade 800R EFI STD - 2009

  • №
    Артикул
    Название
  • 1
    250000117 Torx Screw M8 X 20, Scotch Grip
    Torx Screw M8 X 20, Scotch Grip
  • 2
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 3
    207603044 Hex. Flanged Screw M10 X 30
    Hex. Flanged Screw M10 X 30
  • 4
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 5
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 6
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 7
    705003300 Front Bumper
    Front Bumper
  • 8
    705002279 Attache
    Attache
  • 9
    705002520 Bumper Bracket, Black
    Bumper Bracket, Black
  • 10
    705002282 Support
    Support
  • 11
    705002237 RH Footboard
    RH Footboard
  • 12
    705002238 LH Footboard
    LH Footboard
  • 13
    705002534 Engine Cover
    Engine Cover
  • 14
    210261280 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 15
    705002666 Engine Cover Support
    Engine Cover Support
  • 16
    705002667 Engine Cover Support
    Engine Cover Support
  • 17
    210261280 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 18
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 19
    705002326 Footrest
    Footrest
  • 20
    207662584 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 21
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 23
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 24
    250000284 Torx Screw M6 x 25
    Torx Screw M6 x 25
  • 25
    250000261 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 26
    705001910 LH Cap, Black
    LH Cap, Black
  • 27
    705002420 Neck Cap
    Neck Cap
  • 28
    705002342 Hook
    Hook
