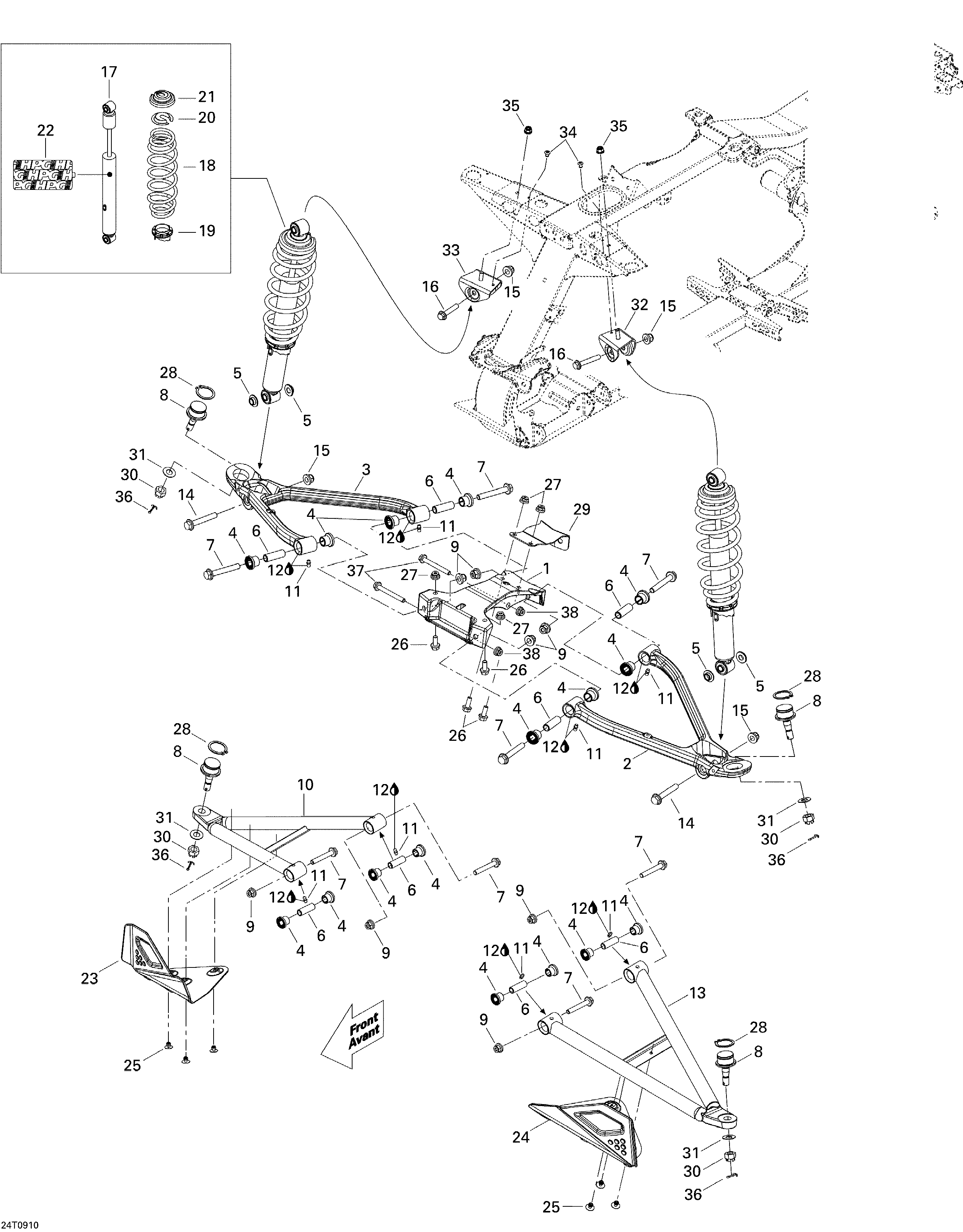

07- Front Suspension 800 для BRP Renegade 800R EFI STD - 2009

  • №
    Артикул
    Название
  • 1
    706200476 Upper Arm Bracket
    Upper Arm Bracket
  • 2
    706200763 LH Upper Arm
    LH Upper Arm
  • 3
    706200764 RH Upper Arm
    RH Upper Arm
  • 4
    706200181 Cushion
    Cushion
  • 5
    706200677 Spacer Bushing
    Spacer Bushing
  • 6
    706200678 Inner Bushing
    Inner Bushing
  • 7
    207607046 Hex. Flanged Screw M10 X 70
    Hex. Flanged Screw M10 X 70
  • 8
    706200653 Ball Joint
    Ball Joint
  • 9
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 10
    706200612 RH Suspension Arm, Black
    RH Suspension Arm, Black
  • 11
    408200700 Grease Fitting
    Grease Fitting
  • 12
    293550010 Synthetic Grease, 400 G
    Synthetic Grease, 400 G
  • 13
    706200604 LH Suspension Arm, black
    LH Suspension Arm, black
  • 14
    207606546 Hex. Flanged Screw M10 X 65
    Hex. Flanged Screw M10 X 65
  • 15
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 16
    207605544 Hex. Flanged Screw M10 X 55
    Hex. Flanged Screw M10 X 55
  • 17
    706200420 Front Shock. 800R EFI
    Front Shock. 800R EFI
  • 18
    706200775 Paint Spring. Red
    Paint Spring. Red
  • 18
    706200829 Paint Spring. Yellow
    Paint Spring. Yellow
  • 19
    706000294 Adjuster Ring
    Adjuster Ring
  • 20
    706200881 Spring Stopper
    Spring Stopper
  • 21
    503191610 Cap
    Cap
  • 22
    704901412 Decal H.P.G.. 800R EFI
    Decal H.P.G.. 800R EFI
  • 23
    706200616 RH Protector
    RH Protector
  • 24
    706200615 LH Protector
    LH Protector
  • 25
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 26
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 27
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 28
    293370009 Circlip 32 mm
    Circlip 32 mm
  • 29
    706200405 Upper Arm Bracket
    Upper Arm Bracket
  • 30
    250100099 Nut M12
    Nut M12
  • 31
    706200281 Hardened Washer
    Hardened Washer
  • 32
    706200735 LH Upper Bracket
    LH Upper Bracket
  • 33
    706200736 RH Upper Bracket
    RH Upper Bracket
  • 34
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 35
    233281416 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 36
    211400017 Cotter Pin
    Cotter Pin
  • 37
    207687044 Hex. Flanged Screw M8 X 70
    Hex. Flanged Screw M8 X 70
  • 38
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
