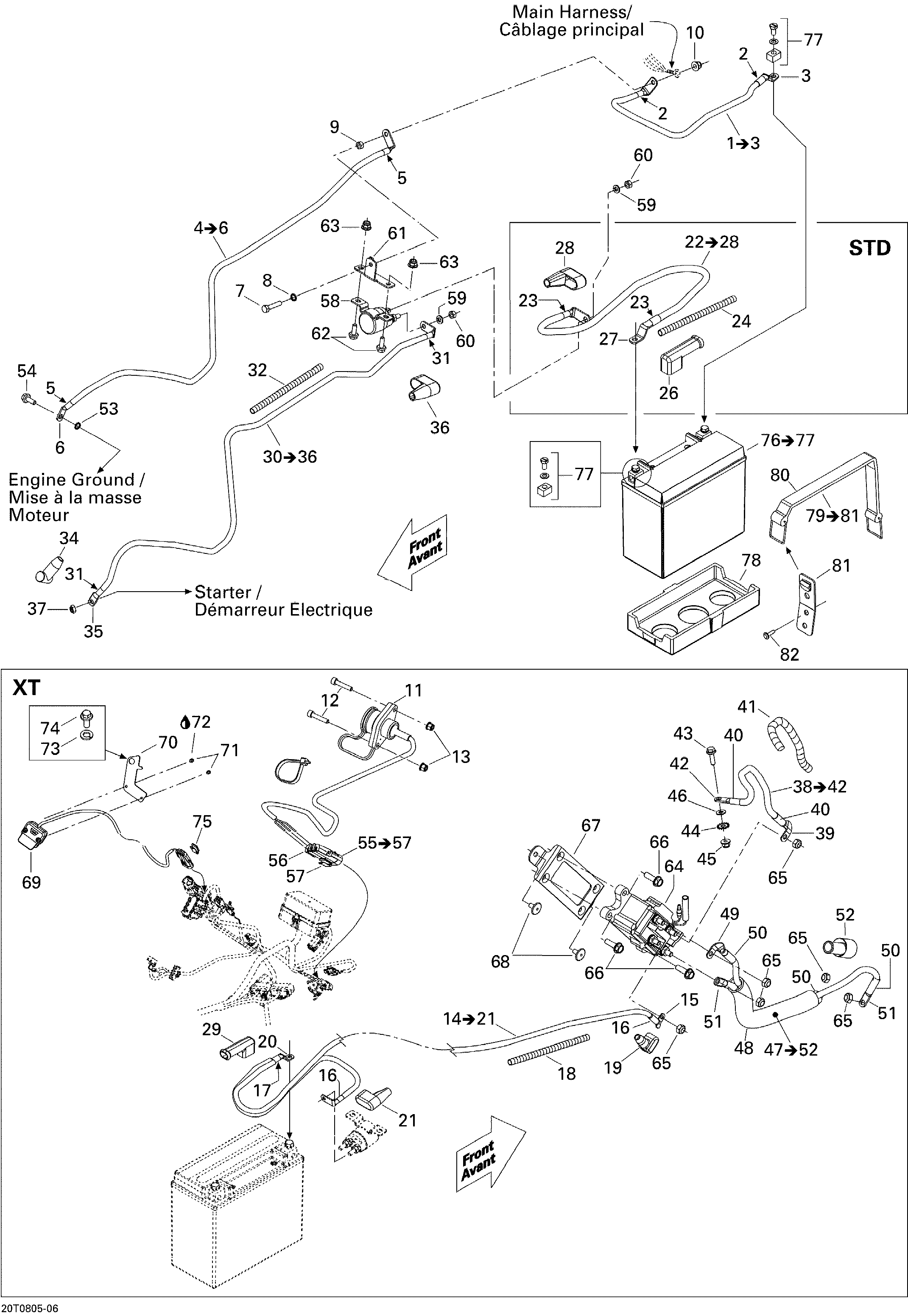

10- Electrical System XT для BRP Outlander 400 EFI XT - 2008

  • №
    Артикул
    Название
  • 1
    710000830 Ground Cable, Battery/frame. Includes 1 to 3
    Ground Cable, Battery/frame. Includes 1 to 3
  • 2
    710000483 Shrink Tubing
    Shrink Tubing
  • 3
    710000518 Open Barrel
    Open Barrel
  • 4
    710001443 Ground Cable. Includes 4 to 6
    Ground Cable. Includes 4 to 6
  • 5
    710000483 Shrink Tubing
    Shrink Tubing
  • 6
    710000540 Open Barrel
    Open Barrel
  • 7
    207162544 Hex. Screw M6 X 25
    Hex. Screw M6 X 25
  • 8
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 9
    232061414 Hex. Nut M6
    Hex. Nut M6
  • 10
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 11
    710001023 Winch Connector. XT
    Winch Connector. XT
  • 12
    205052588 Socket Head Screw M5 X 25. XT
    Socket Head Screw M5 X 25. XT
  • 13
    233251414 Hex. Flanged Elastic Nut M5. XT
    Hex. Flanged Elastic Nut M5. XT
  • 14
    710000832 Positive Cable. XT, Includes 14 to 21
    Positive Cable. XT, Includes 14 to 21
  • 15
    710000476 Open Barrel, 6.6 mm. XT
    Open Barrel, 6.6 mm. XT
  • 16
    710000483 Shrink Tubing. XT
    Shrink Tubing. XT
  • 17
    275500578 Shrink Tubing. XT
    Shrink Tubing. XT
  • 18
    710000497 Protector Tube, 9 mm. XT
    Protector Tube, 9 mm. XT
  • 19
    710000522 Protector Cap. XT
    Protector Cap. XT
  • 20
    710000519 Open Barrel. XT
    Open Barrel. XT
  • 21
    710000902 Protector Cap. XT
    Protector Cap. XT
  • 29
    710000516 Protector Cap. XT
    Protector Cap. XT
  • 30
    710000380 Positive Cable, Starter Relay/starter. Includes 30 to 36
    Positive Cable, Starter Relay/starter. Includes 30 to 36
  • 31
    710000483 Shrink Tubing
    Shrink Tubing
  • 32
    710000497 Protector Tube, 9 mm
    Protector Tube, 9 mm
  • 34
    710000526 Protector Cap
    Protector Cap
  • 35
    710000530 Open Barrel
    Open Barrel
  • 36
    710000902 Protector Cap
    Protector Cap
  • 37
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 38
    710000455 Negative Cable. XT, Includes 38 to 42
    Negative Cable. XT, Includes 38 to 42
  • 39
    710000476 Open Barrel, 6.6 mm. XT
    Open Barrel, 6.6 mm. XT
  • 40
    710000483 Shrink Tubing. XT
    Shrink Tubing. XT
  • 41
    710000497 Protector Tube, 9 mm. XT
    Protector Tube, 9 mm. XT
  • 42
    710000530 Open Barrel. XT
    Open Barrel. XT
  • 43
    207662044 Hex. Flanged Screw M6 X 20. XT
    Hex. Flanged Screw M6 X 20. XT
  • 44
    250200041 Lock Washer Serrated M6. XT
    Lock Washer Serrated M6. XT
  • 45
    233261414 Hex. Flanged Elastic Nut M6. XT
    Hex. Flanged Elastic Nut M6. XT
  • 46
    224061121 Flat Washer. XT
    Flat Washer. XT
  • 47
    710001251 Winch Cables. XT, Includes 47 to 52
    Winch Cables. XT, Includes 47 to 52
  • 48
    409901600 Tubing, 19 mm. XT
    Tubing, 19 mm. XT
  • 49
    710000476 Open Barrel, 6.6 mm. XT
    Open Barrel, 6.6 mm. XT
  • 50
    710000483 Shrink Tubing. XT
    Shrink Tubing. XT
  • 51
    710000530 Open Barrel. XT
    Open Barrel. XT
  • 52
    515175919 Protector Cap. XT
    Protector Cap. XT
  • 53
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 54
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 55
    710001059 Connector Ass'y. XT, Includes 55 to 57
    Connector Ass'y. XT, Includes 55 to 57
  • 56
    278000281 Female Terminal Housing, 3 Circuits. XT
    Female Terminal Housing, 3 Circuits. XT
  • 57
    710000992 Clip. XT
    Clip. XT
  • 58
    710001364 Starter Relay
    Starter Relay
  • 59
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 60
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 61
    710001260 Solenoid Support
    Solenoid Support
  • 62
    207661244 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 63
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 64
    710001000 Winch Solenoid. XT
    Winch Solenoid. XT
  • 65
    232561414 Elastic Stop Nut M6. XT
    Elastic Stop Nut M6. XT
  • 66
    210262080 Hex. Forming Screw M6 X 20. XT
    Hex. Forming Screw M6 X 20. XT
  • 67
    710001261 Relay Support. XT
    Relay Support. XT
  • 68
    390406500 Pop Rivet 3/16''. XT
    Pop Rivet 3/16''. XT
  • 69
    710001001 Winch Interrupter. XT
    Winch Interrupter. XT
  • 70
    710000755 Winch Interrupter Support. XT
    Winch Interrupter Support. XT
  • 71
    250000153 Hex. Cap Screw 6-32 X 1/4''. XT
    Hex. Cap Screw 6-32 X 1/4''. XT
  • 72
    293800060 Loctite 243, 10 ml. XT
    Loctite 243, 10 ml. XT
  • 73
    234101601 Helicoidal Lock Washer M10. XT
    Helicoidal Lock Washer M10. XT
  • 74
    250000029 Hex. Screw M10 X 16. XT
    Hex. Screw M10 X 16. XT
  • 75
    409014200 Clip. XT
    Clip. XT
  • 76
    410301203 Battery, 18 Amperes. Includes 76 to 77
    Battery, 18 Amperes. Includes 76 to 77
  • 77
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 78
    710000279 Insulator Pad
    Insulator Pad
  • 79
    710001033 Strap Ass'y. Includes 79 to 81
    Strap Ass'y. Includes 79 to 81
  • 80
    293850097 Rubber Strap
    Rubber Strap
  • 81
    293850030 Strap Clip
    Strap Clip
  • 82
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
