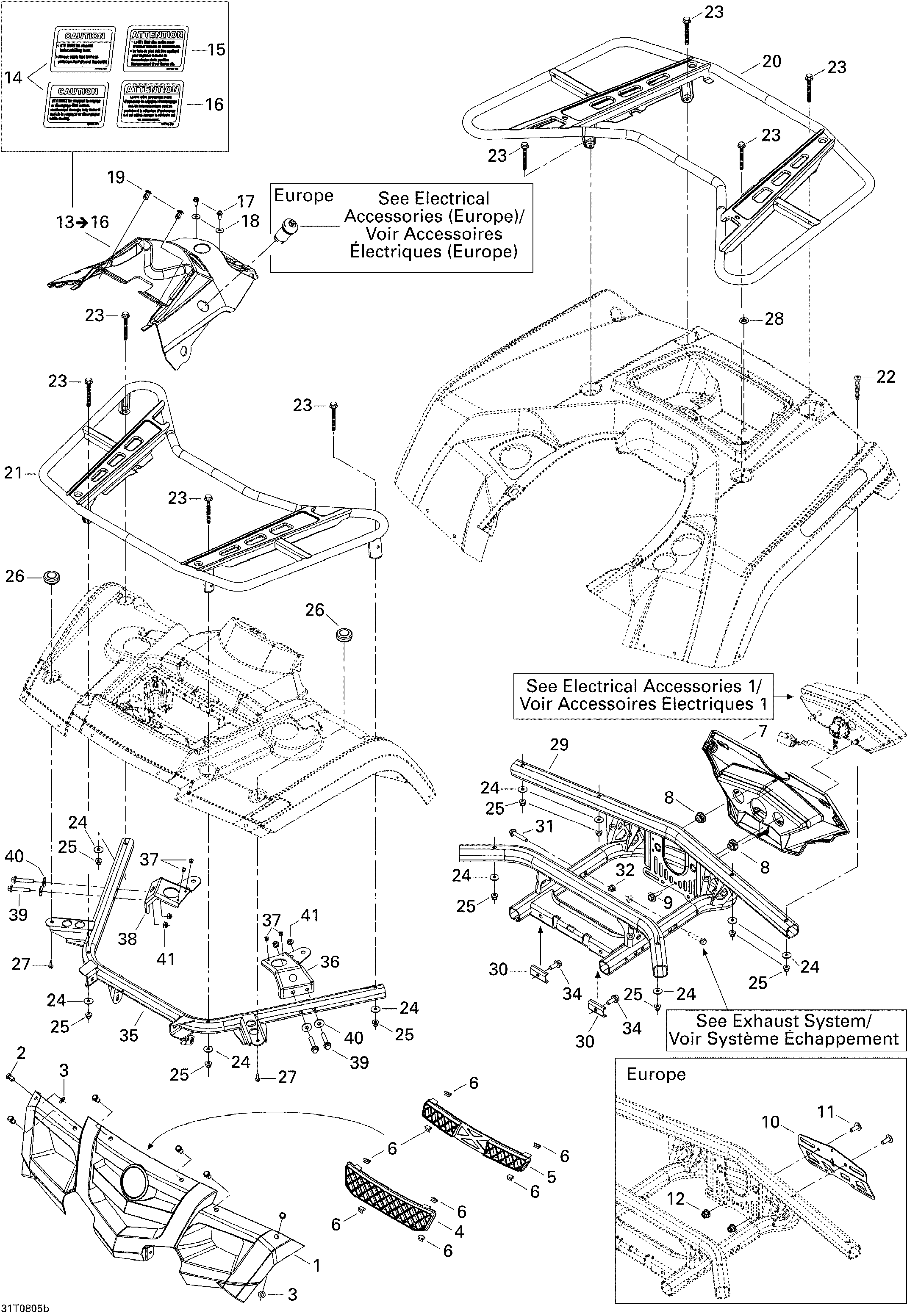

09- Body And Accessories 2 для BRP Outlander 400 EFI XT - 2008
-
№АртикулНазвание
-
1705001313 Front Fascia, Red. Viper RedFront Fascia, Red. Viper Red
-
1705001991 Front Fascia, Yellow. YellowFront Fascia, Yellow. Yellow
-
1705001992 Front Fascia, Green. Laurentian GreenFront Fascia, Green. Laurentian Green
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3506151252 WasherWasher
-
4705001679 Lower GrillLower Grill
-
5705001901 Upper GrillUpper Grill
-
6517302674 ClipClip
-
7705002464 Rear FaciaRear Facia
-
8705001119 GrommetGrommet
-
9250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
10705002499 Support. EuropeSupport. Europe
-
11250000261 Torx Screw M6 X 16. EuropeTorx Screw M6 X 16. Europe
-
12233261414 Hex. Flanged Elastic Nut M6. EuropeHex. Flanged Elastic Nut M6. Europe
-
13703500668 Dash-board, Red. Includes 13 to 16, Viper RedDash-board, Red. Includes 13 to 16, Viper Red
-
13703500674 Dash-board, Green. Includes 13 to 16, Laurentian GreenDash-board, Green. Includes 13 to 16, Laurentian Green
-
13703500670 Dash-board, Yellow. Includes 13 to 16, YellowDash-board, Yellow. Includes 13 to 16, Yellow
-
13703500671 Dash-board, Red. Includes 13 to 16, Viper Red (Europe)Dash-board, Red. Includes 13 to 16, Viper Red (Europe)
-
13703500672 Dash-board, Green. Includes 13 to 16, Laurentian Green (Europe)Dash-board, Green. Includes 13 to 16, Laurentian Green (Europe)
-
13703500673 Dash-board, Yellow. Includes 13 to 16, Yellow (Europe)Dash-board, Yellow. Includes 13 to 16, Yellow (Europe)
-
14704900434 Caution Label, Lever And 4wd SwitchCaution Label, Lever And 4wd Switch
-
15704900475 Caution Label, Shifting LeverCaution Label, Shifting Lever
-
16704900476 Caution Label, 4wd SwitchCaution Label, 4wd Switch
-
17210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
18391302000 Flat WasherFlat Washer
-
19293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
20705001780 Rear Luggage RackRear Luggage Rack
-
21705001769 Front Luggage RackFront Luggage Rack
-
22250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
23207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
24224061201 Flat WasherFlat Washer
-
25233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26705002042 Rubber CapRubber Cap
-
27365901100 Hex. Screw 12 X 3/4Hex. Screw 12 X 3/4
-
28414859400 CapCap
-
29705002506 SupportSupport
-
30705002668 U ReinforcementU Reinforcement
-
31207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
32233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
34207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
35705001455 Front SupportFront Support
-
36705000692 LH Anchor PlateLH Anchor Plate
-
37390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
38705000693 RH Anchor PlateRH Anchor Plate
-
39207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
40234082410 Flat Washer 8 mmFlat Washer 8 mm
-
41232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
