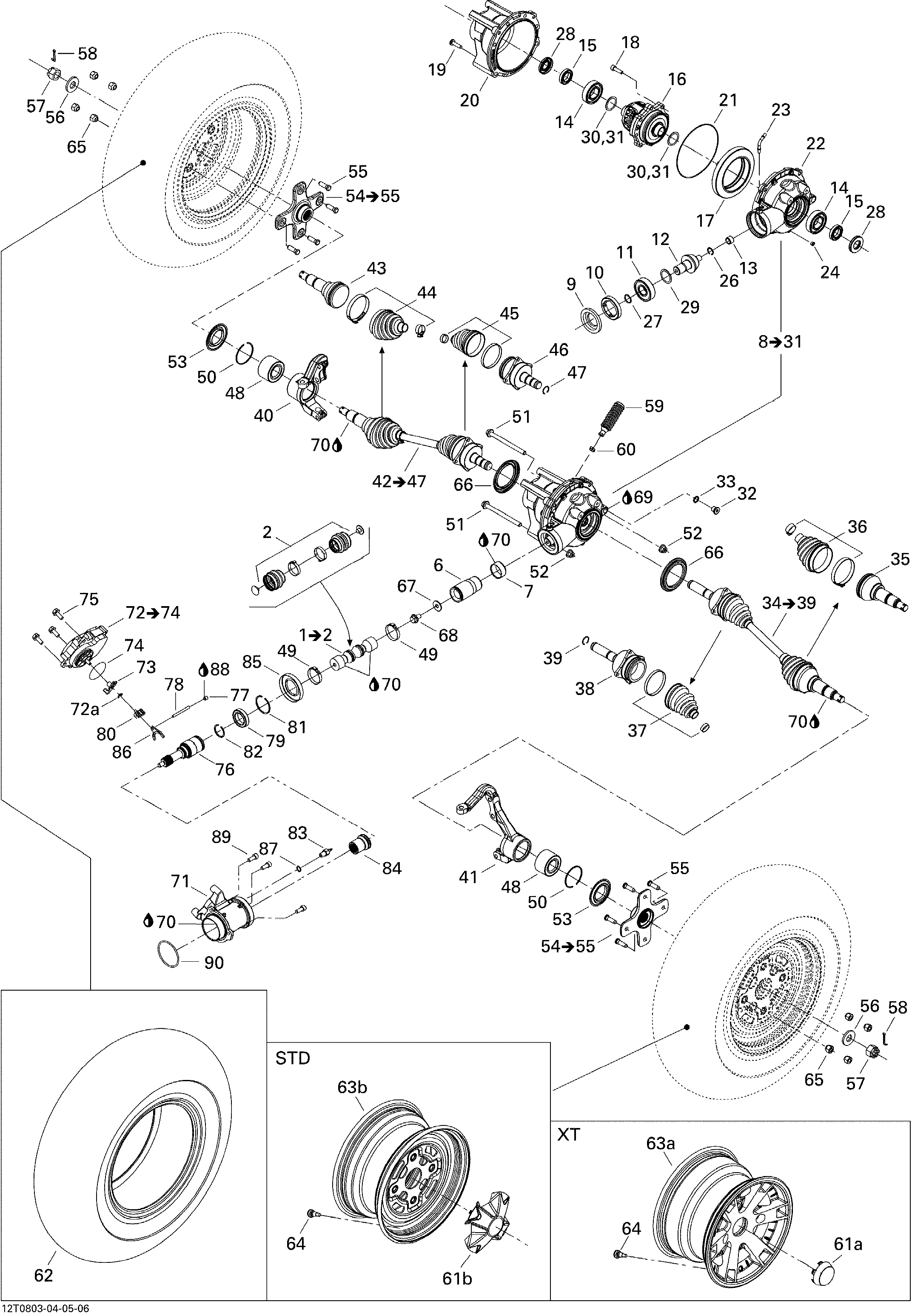

07- Drive System, Front XT для BRP Outlander 400 EFI XT - 2008
-
№АртикулНазвание
-
1705400337 Front Drive Axle Ass'y. Include 1 to 2Front Drive Axle Ass'y. Include 1 to 2
-
2703500255 Rubber Boot KitRubber Boot Kit
-
6705400149 Coupling SleeveCoupling Sleeve
-
7705400036 Wear RingWear Ring
-
8705400574 Front Differential Ass'y. Includes 8 to 31Front Differential Ass'y. Includes 8 to 31
-
9705400027 Oil SealOil Seal
-
10705500789 NutNut
-
11705500260 Ball BearingBall Bearing
-
12705500268 Gear, 10 TeethGear, 10 Teeth
-
13705500261 Needle BearingNeedle Bearing
-
14705500259 Ball BearingBall Bearing
-
15293350044 Ball BearingBall Bearing
-
16705400407 DifferentialDifferential
-
17705400192 Gear, 36 TeethGear, 36 Teeth
-
18705400101 Ring Gear ScrewRing Gear Screw
-
19705500892 ScrewScrew
-
20705400297 Front CoverFront Cover
-
21705500265 SealSeal
-
22705400299 Front Cover, PinionFront Cover, Pinion
-
23705500893 Vent ValveVent Valve
-
24705500894 Drain PlugDrain Plug
-
26705500269 Retaining RingRetaining Ring
-
27705500267 O-RingO-Ring
-
28705500255 Oil SealOil Seal
-
29703500049 Pinion Shim KitPinion Shim Kit
-
29705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
30703500288 Differential Shim KitDifferential Shim Kit
-
31703500050 Differential Shim KitDifferential Shim Kit
-
32250400041 Screw PlugScrew Plug
-
33705500506 Copper WasherCopper Washer
-
34705400508 RH CV Joint. Includes 34 to 39RH CV Joint. Includes 34 to 39
-
35705500560 CV JointCV Joint
-
36705400511 Wheel Boot KitWheel Boot Kit
-
37705400512 Differential Boot KitDifferential Boot Kit
-
38705400513 RH Plunging JointRH Plunging Joint
-
39705400042 CirclipCirclip
-
40705400341 LH KnuckleLH Knuckle
-
41705400345 RH KnuckleRH Knuckle
-
42705400510 LH CV Joint. Includes 42 to 47LH CV Joint. Includes 42 to 47
-
43705500560 CV JointCV Joint
-
44705400511 Wheel Boot KitWheel Boot Kit
-
45705400512 Differential Boot KitDifferential Boot Kit
-
46705400514 LH Plunging JointLH Plunging Joint
-
47705400042 CirclipCirclip
-
48293350040 Cone BearingCone Bearing
-
49293650138 Oetiker ClampOetiker Clamp
-
50293370019 CirclipCirclip
-
51230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
52233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
53705500899 Wear SleeveWear Sleeve
-
54705400591 Wheel Hub Ass'y. Includes 54 to 55Wheel Hub Ass'y. Includes 54 to 55
-
55250300034 Wheel StudWheel Stud
-
56250200049 Spring WasherSpring Washer
-
57250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
58250400036 Cotter PinCotter Pin
-
59705400552 Rubber BellowRubber Bellow
-
60293650042 Oetiker ClampOetiker Clamp
-
61a705400504 Wheel Cap. XTWheel Cap. XT
-
62705400326 Front Tire. XT EuropeFront Tire. XT Europe
-
62705400606 Front Tire. XTFront Tire. XT
-
63a705400440 Front Rim. XTFront Rim. XT
-
64705400193 Rim ValveRim Valve
-
65250100082 Chrome Wheel Nut M10 X 1.25. XTChrome Wheel Nut M10 X 1.25. XT
-
66705400578 Wear SleeveWear Sleeve
-
67250200014 Flat WasherFlat Washer
-
68250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
69293600011 Pump Oil, 75W90, 12 X 6 OzPump Oil, 75W90, 12 X 6 Oz
-
70293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
71705400169 HousingHousing
-
72705400581 Actuator Ass'y. Includes 72 to 74Actuator Ass'y. Includes 72 to 74
-
72a415129176 CirclipCirclip
-
73705400274 ForkFork
-
74293300117 O-RingO-Ring
-
75250000137 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
76705400172 Union ShaftUnion Shaft
-
77206580890 Pressure Screw M8 X 8Pressure Screw M8 X 8
-
78250400025 Dowell PinDowell Pin
-
79705400249 Ball BearingBall Bearing
-
80705400538 SliderSlider
-
81293370029 CirclipCirclip
-
82293370030 CirclipCirclip
-
83710000324 SwitchSwitch
-
84705400389 Coupling SleeveCoupling Sleeve
-
85293250138 Oil SealOil Seal
-
86705400387 Shifter PlateShifter Plate
-
87705600310 Copper WasherCopper Washer
-
88293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
89250000136 Socket Screw M8 X 20, Scotch GripSocket Screw M8 X 20, Scotch Grip
-
90293300091 O-RingO-Ring
