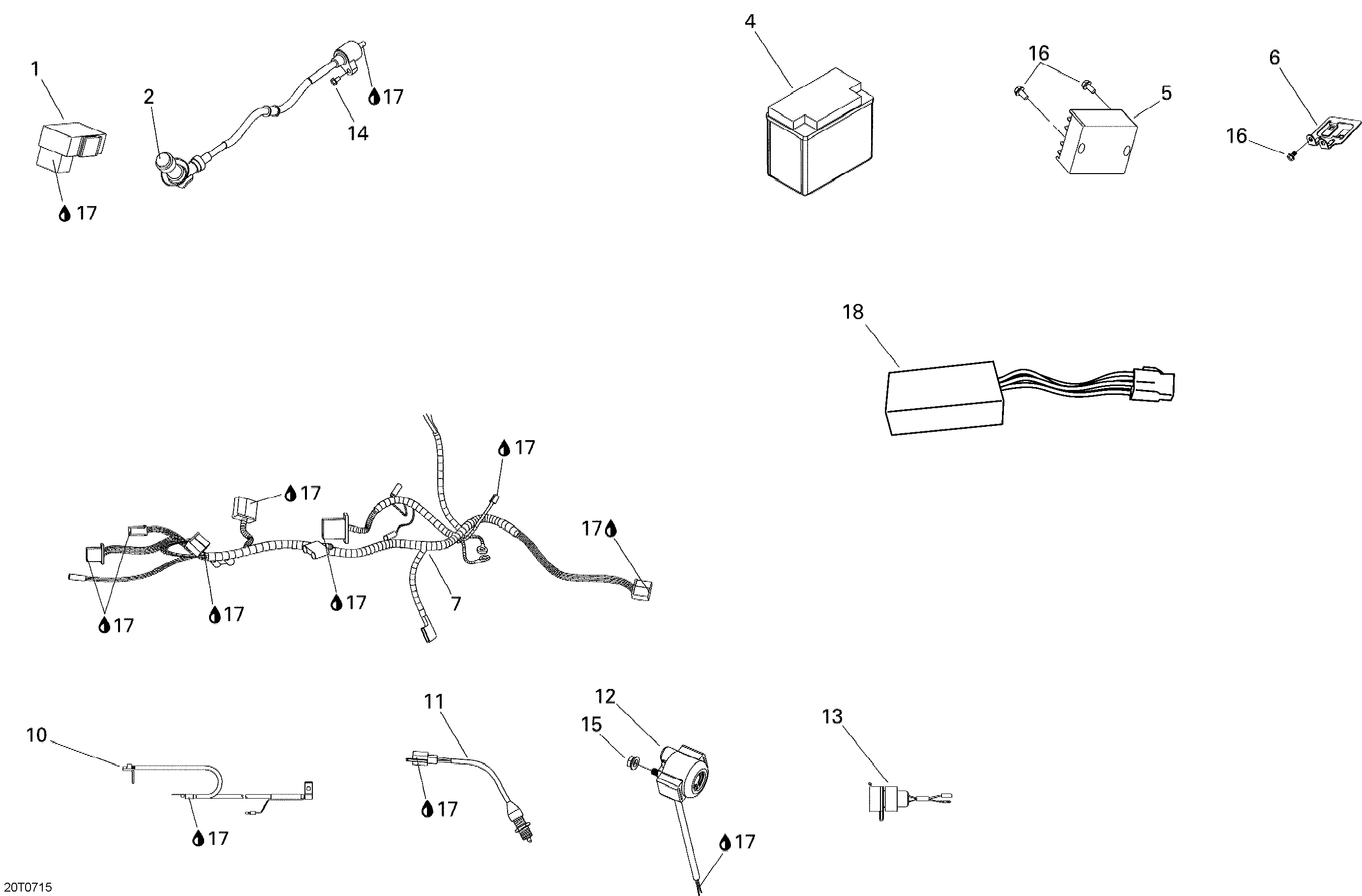

10- Electrical Components для BRP DS 250 NA / Inter - 2007
-
№АртикулНазвание
-
1S30400RCB000 Cdi Unit Ass'yCdi Unit Ass'y
-
2S3051ARB1000 Ignition CoilIgnition Coil
-
4715900031 Battery 12 AmpBattery 12 Amp
-
5S31600RCA000 RectifierRectifier
-
6S31601RCA000 Rectifier SupportRectifier Support
-
7S32100RCB000 Electrical Harness Ass'yElectrical Harness Ass'y
-
10S32412RB1000 Ground CableGround Cable
-
11S35350RCA000 Rear Stop Switch AssyRear Stop Switch Assy
-
12S3585ARCA000 Starter Solenoid And Positive CableStarter Solenoid And Positive Cable
-
13S38600RA1000 DC Power Outlet, 12 VoltsDC Power Outlet, 12 Volts
-
14S90112GK8000 Flanged Bolt M5 X 22Flanged Bolt M5 X 22
-
15S9405006070 Flanged Nut 6 mmFlanged Nut 6 mm
-
16S958010601607 Flanged Bolt M6 X 16Flanged Bolt M6 X 16
-
17293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
18S37270RA1000 Coolant Temperature Control UnitCoolant Temperature Control Unit
