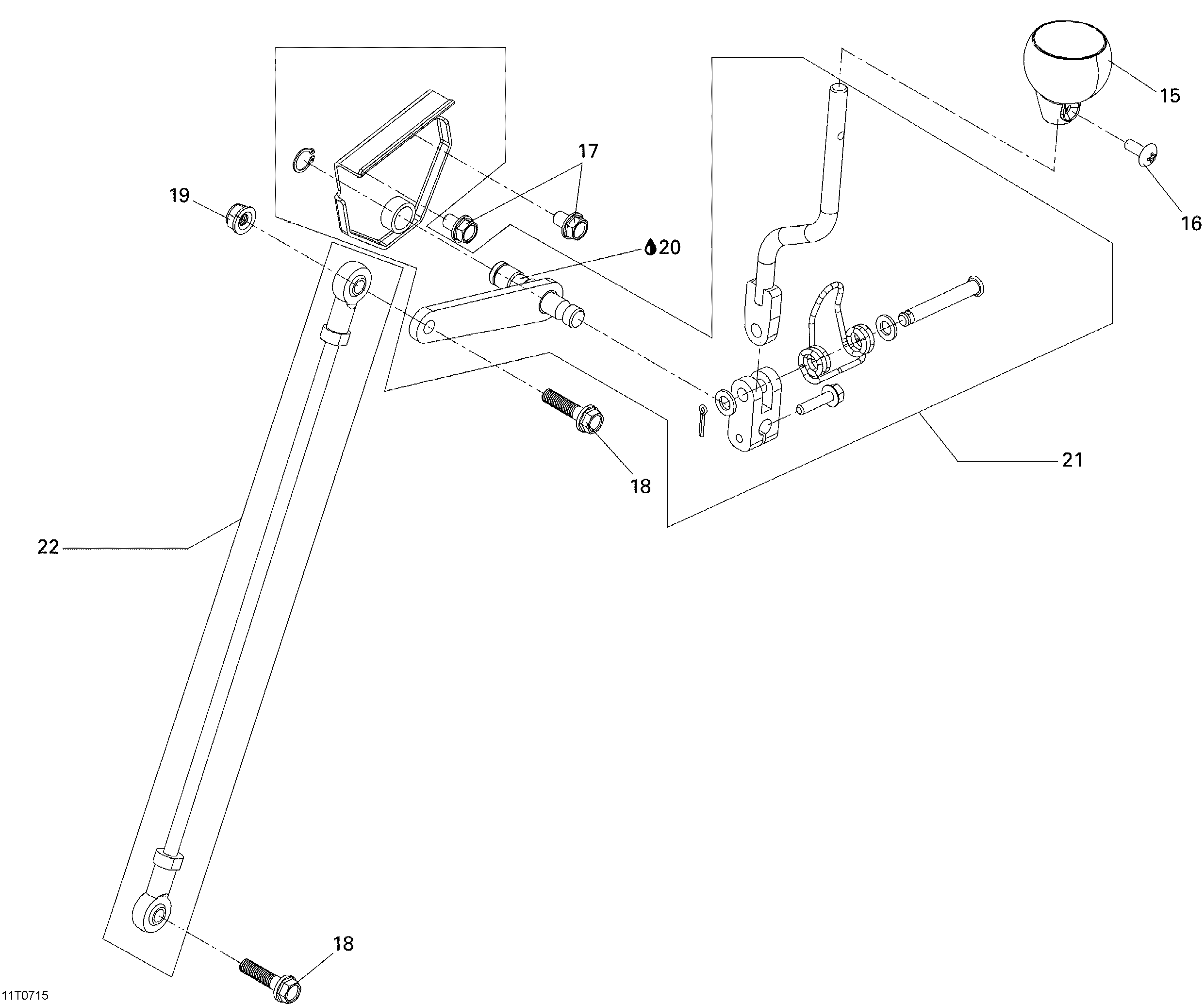

05- Gear Shift для BRP DS 250 NA / Inter - 2007
-
№АртикулНазвание
-
15S24640RCA000 Plastic HandlePlastic Handle
-
16S90115G02000 Bolt M6 X 16Bolt M6 X 16
-
17S958010801207 Flanged Bolt M8 X 12Flanged Bolt M8 X 12
-
18S958010803007 Flanged Bolt M8 X 30Flanged Bolt M8 X 30
-
19S90309M9Q000 Self-lock Nut 8 mmSelf-lock Nut 8 mm
-
20293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
21S2464ARCA000 Shifter Lever Ass'yShifter Lever Ass'y
-
22S24648RCA000 Tie-rod Ass'yTie-rod Ass'y
