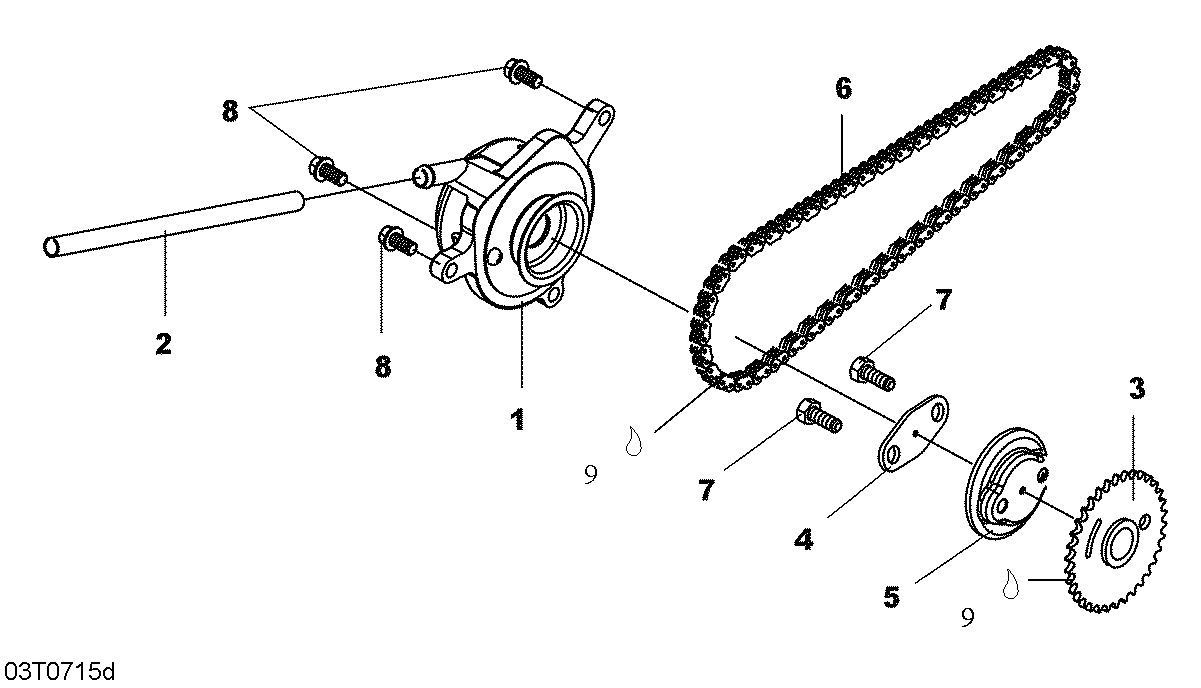

01- Breather And Timing Chain для BRP DS 250 NA / Inter - 2007
-
№АртикулНазвание
-
1S1230ARB1000 Cylinder Head Side CoverCylinder Head Side Cover
-
2S12314RCA000 Breather TubeBreather Tube
-
3S14105A31000 Cam SprocketCam Sprocket
-
4S14105X01000 Cam Sprocket WasherCam Sprocket Washer
-
5S14108M36000 Centrifugal DiskCentrifugal Disk
-
6S14401HMA000 ChainChain
-
7S90083X01000 Lock Bolt 6 mmLock Bolt 6 mm
-
8S960010601800 Flanged Hex. Screw M6 X 18Flanged Hex. Screw M6 X 18
