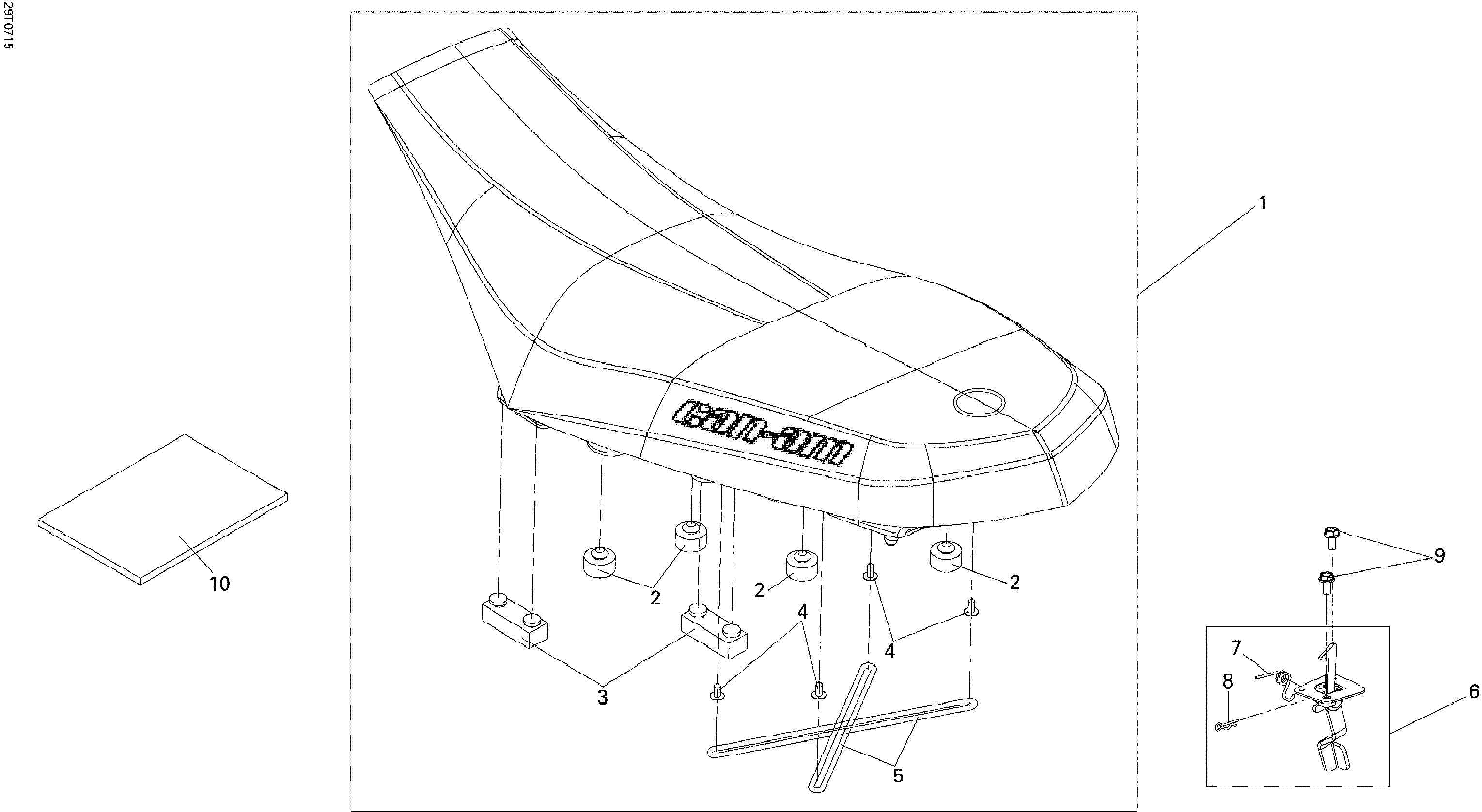

09- Seat для BRP DS 250 NA / Inter - 2007
-
№АртикулНазвание
-
1S77200RCA700 Seat Ass'ySeat Ass'y
-
2S77202RCA000 Seat Setting Rubber ASeat Setting Rubber A
-
3S77203RCA000 Seat Setting Rubber BSeat Setting Rubber B
-
4S9390335280 Tapping Screw M5 X 12Tapping Screw M5 X 12
-
5S77204RCA000 O-ringO-ring
-
6S77201RCA000 Seat Lock Catch Ass'ySeat Lock Catch Ass'y
-
9S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
-
10219000414 Europe Owners Manual, englishEurope Owners Manual, english
