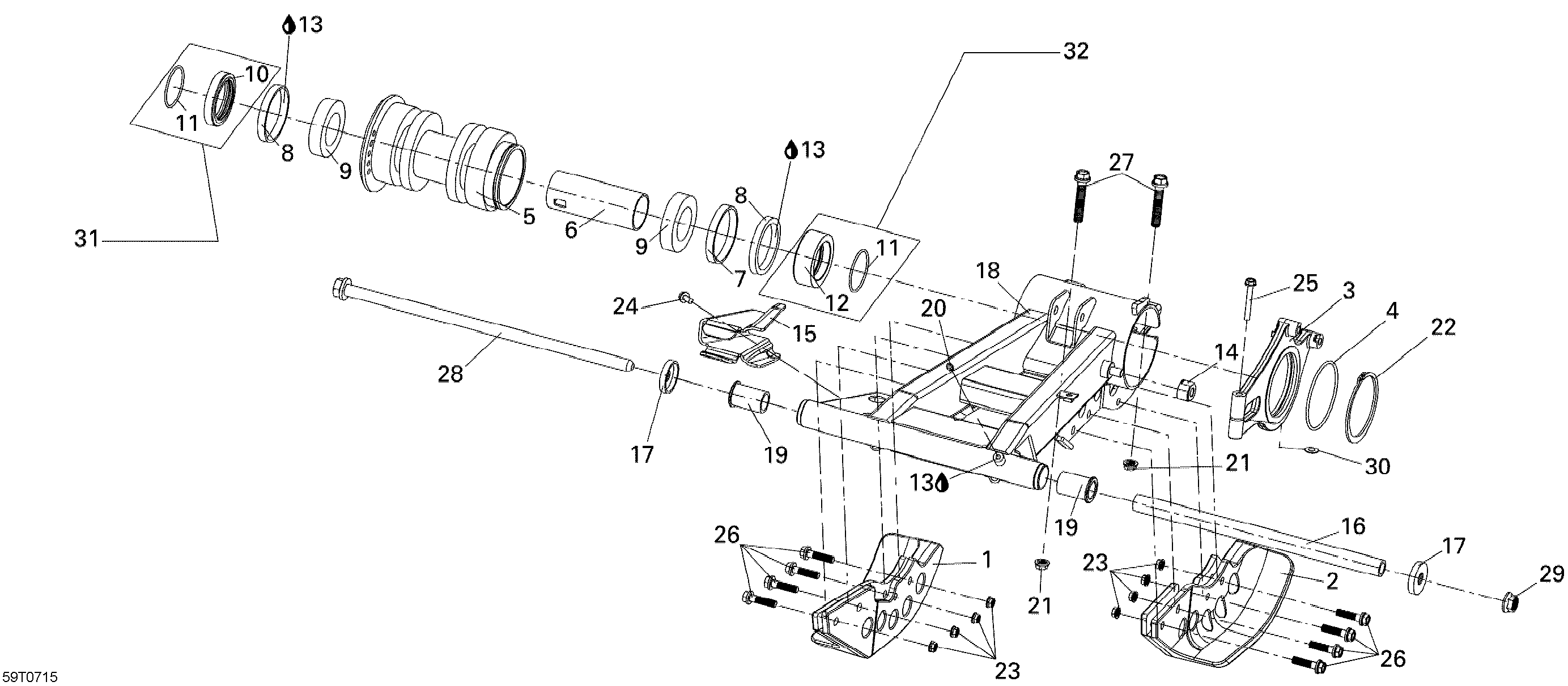

08- Rear Swing Arm для BRP DS 250 NA / Inter - 2007
-
№АртикулНазвание
-
1S40150RCA000 RH Skid PlateRH Skid Plate
-
2S40160RCA000 LH Skid PlateLH Skid Plate
-
3S42318RCA000 Rear Brake Caliper BracketRear Brake Caliper Bracket
-
4S42319RCA000 O RingO Ring
-
5S42310RCA000 Rear Axle Housing BodyRear Axle Housing Body
-
6S42311RCA000 Axle Housing SpacerAxle Housing Spacer
-
7S42312RCA000 Steel CollarSteel Collar
-
8S91206RCA000 Oil SealOil Seal
-
9S961506008310 Ball BearingBall Bearing
-
13293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
14S52201RCA000 Locking CollarLocking Collar
-
15S52205RCA000 Chain GuideChain Guide
-
16S52208RCA000 Pivot SpacerPivot Spacer
-
17S52209RCA000 Pivot Dust SealPivot Dust Seal
-
18S52200RCA000 Swing ArmSwing Arm
-
19S52210RCA000 PivotPivot
-
20408200700 Grease FittingGrease Fitting
-
21S90304RCA000 Flanged Nylon Nut 10 mmFlanged Nylon Nut 10 mm
-
22S91301RCA000 CirclipCirclip
-
23S9405008070 Flanged Nut 10 mmFlanged Nut 10 mm
-
24S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
-
25207664544 Flanged Hex Screw M6 X 45Flanged Hex Screw M6 X 45
-
26S958010803007 Flanged Bolt M8 X 30Flanged Bolt M8 X 30
-
27S964001006508 Flanged Bolt M10 X 65Flanged Bolt M10 X 65
-
28S90103RCA000 Pivot BoltPivot Bolt
-
29S90305GW090A Self Lock NutSelf Lock Nut
-
30S9410206000 WasherWasher
-
31S4011ARCA000 RH Axle Collar Ass'yRH Axle Collar Ass'y
-
32S4011BRCA000 LH Axle Collar Ass'yLH Axle Collar Ass'y
