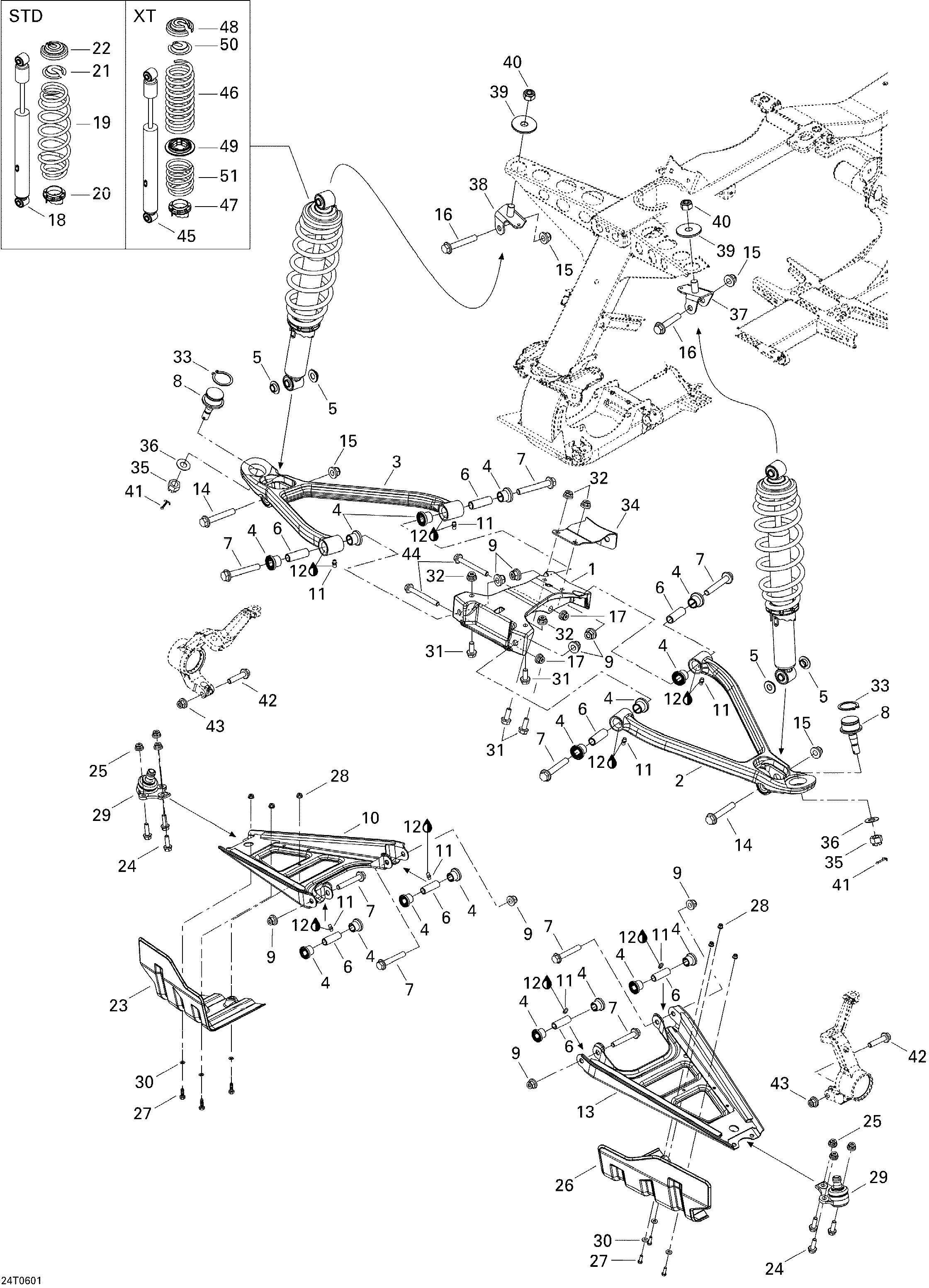

07- Front Suspension STD для BRP Outlander 800 STD 4 X 4 - 2006

‹-+›
  • №
    Артикул
    Название
  • 1
    706200476 Upper Arm Bracket
    Upper Arm Bracket
  • 2
    706200401 LH Upper Arm
    LH Upper Arm
  • 3
    706200403 RH Upper Arm
    RH Upper Arm
  • 4
    706200181 Cushion
    Cushion
  • 5
    706200423 Spacer Bushing
    Spacer Bushing
  • 6
    706200182 Inner Bushing
    Inner Bushing
  • 7
    207607046 Hex Flanged Screw M10 X 70
    Hex Flanged Screw M10 X 70
  • 8
    706200091 Ball Joint
    Ball Joint
  • 9
    233201416 Hex Flanged Elastic Nut M10
    Hex Flanged Elastic Nut M10
  • 10
    706200509 Suspension Arm, Black
    Suspension Arm, Black
  • 11
    408200700 Grease Fitting
    Grease Fitting
  • 12
    293550033 Suspension Grease, 10 X 400 G
    Suspension Grease, 10 X 400 G
  • 13
    706200509 Suspension Arm, Black
    Suspension Arm, Black
  • 14
    207606546 Hex Flanged Screw M10 X 65
    Hex Flanged Screw M10 X 65
  • 15
    233201414 Hex Flanged Elastic Nut M10
    Hex Flanged Elastic Nut M10
  • 16
    207605544 Hex Flanged Screw M10 X 55
    Hex Flanged Screw M10 X 55
  • 17
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 18
    706200408 Front Shock. STD
    Front Shock. STD
  • 19
    706200409 Front Spring. STD
    Front Spring. STD
  • 20
    706000294 Adjuster Ring. STD
    Adjuster Ring. STD
  • 21
    503140600 Spring Stopper. STD
    Spring Stopper. STD
  • 22
    503141600 Cap. STD
    Cap. STD
  • 23
    706200214 RH Protector
    RH Protector
  • 24
    207682544 Hex Flanged Screw M8 X 25
    Hex Flanged Screw M8 X 25
  • 25
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 26
    706200213 LH Protector
    LH Protector
  • 27
    207151644 Hex Screw M5 X 16
    Hex Screw M5 X 16
  • 28
    233251414 Hex Flanged Elastic Nut M5
    Hex Flanged Elastic Nut M5
  • 29
    706200444 Joint Attachment
    Joint Attachment
  • 30
    391301700 Washer
    Washer
  • 31
    207682044 Hex Flanged Screw M8 X 20
    Hex Flanged Screw M8 X 20
  • 32
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 33
    293370009 Circlip 32 mm
    Circlip 32 mm
  • 34
    706200405 Upper Arm Bracket
    Upper Arm Bracket
  • 35
    250100045 Hex Nut M12
    Hex Nut M12
  • 36
    706200281 Hard Washer
    Hard Washer
  • 37
    706200440 LH Upper Bracket
    LH Upper Bracket
  • 38
    706200441 RH Upper Bracket
    RH Upper Bracket
  • 39
    706200490 Spacer
    Spacer
  • 40
    232521416 Elastic Flanged Stop Nut M12
    Elastic Flanged Stop Nut M12
  • 41
    211400017 Cotter Pin
    Cotter Pin
  • 42
    207604544 Hex Flanged Screw M10 X 45
    Hex Flanged Screw M10 X 45
  • 43
    233201414 Hex Flanged Elastic Nut M10
    Hex Flanged Elastic Nut M10
  • 44
    207687044 Hex Flanged Screw M8 X 70
    Hex Flanged Screw M8 X 70
