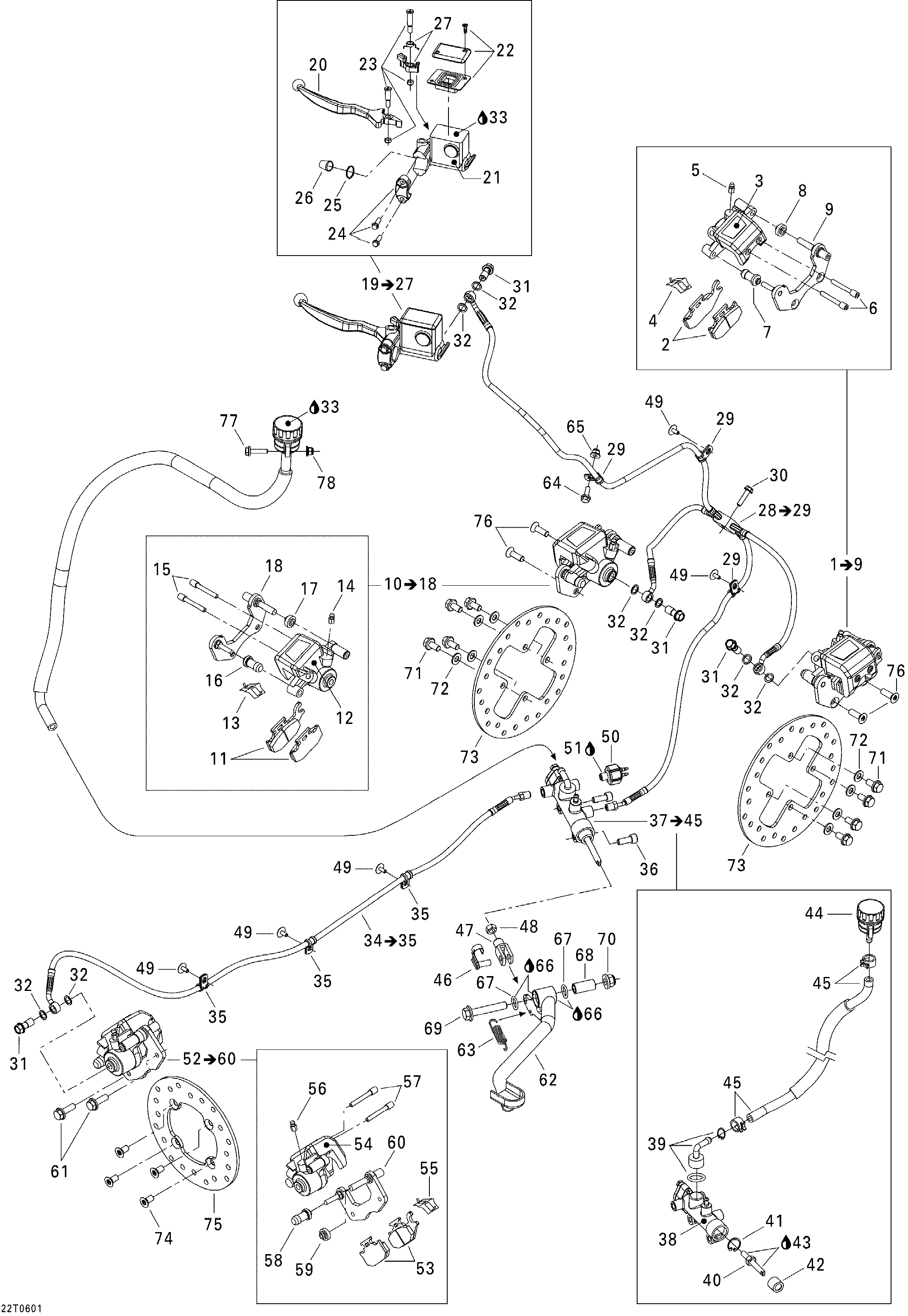

06- Hydraulic Brake для BRP Outlander 800 STD 4 X 4 - 2006

  • №
    Артикул
    Название
  • 1
    705600367 RH Caliper. Includes 1 to 9
    RH Caliper. Includes 1 to 9
  • 2
    705600349 Brake Pad Kit
    Brake Pad Kit
  • 3
    705600078 Piston Set
    Piston Set
  • 4
    705600079 Spring
    Spring
  • 5
    705600080 Bleeding Screw
    Bleeding Screw
  • 6
    705600081 Pin Set
    Pin Set
  • 7
    705600082 Compression Boot
    Compression Boot
  • 8
    705600083 Compression Boot
    Compression Boot
  • 10
    705600366 LH Caliper. Includes 10 to 18
    LH Caliper. Includes 10 to 18
  • 11
    705600350 RH Brake Pad Kit
    RH Brake Pad Kit
  • 12
    705600078 Piston Set
    Piston Set
  • 13
    705600079 Spring
    Spring
  • 14
    705600080 Bleeding Screw
    Bleeding Screw
  • 15
    705600081 Pin Set
    Pin Set
  • 16
    705600082 Compression Boot
    Compression Boot
  • 17
    705600083 Compression Boot
    Compression Boot
  • 18
    705600297 LH Caliper Support
    LH Caliper Support
  • 19
    705600242 Front Master Cylinder. Includes 19 to 27
    Front Master Cylinder. Includes 19 to 27
  • 20
    705600243 Lever Arm
    Lever Arm
  • 21
    705600244 Piston Kit
    Piston Kit
  • 22
    705600084 Boot Kit
    Boot Kit
  • 23
    705600246 Brake Lever Bolt Kit
    Brake Lever Bolt Kit
  • 24
    705600087 Bracket Kit
    Bracket Kit
  • 25
    705600088 Circlip
    Circlip
  • 26
    705600089 Compression Boot
    Compression Boot
  • 27
    705600477 Parking Kit, Brake Lever Lock
    Parking Kit, Brake Lever Lock
  • 28
    705600421 Front Hose. Includes 28 to 29
    Front Hose. Includes 28 to 29
  • 29
    705600459 Clamp
    Clamp
  • 30
    210262580 Hex Flanged Forming Screw M6 X 25
    Hex Flanged Forming Screw M6 X 25
  • 31
    705600396 Banjo Bolt
    Banjo Bolt
  • 32
    705600310 Copper Washer
    Copper Washer
  • 33
    293600063 Brake Fluid, SRF (DOT 4)
    Brake Fluid, SRF (DOT 4)
  • 33
    293600062 Brake Fluid, GTLMA (DOT 4) 12 X 354 ml
    Brake Fluid, GTLMA (DOT 4) 12 X 354 ml
  • 34
    705600383 Rear Hose. Includes 34 to 35
    Rear Hose. Includes 34 to 35
  • 35
    705600459 Clamp
    Clamp
  • 36
    250000136 Socket Screw M8 X 20, Scotch Grip
    Socket Screw M8 X 20, Scotch Grip
  • 37
    705600254 Rear Master Cylinder. Includes 37 to 45
    Rear Master Cylinder. Includes 37 to 45
  • 38
    705600255 Piston Set
    Piston Set
  • 39
    705600064 Pusher Bracket, Hose Connector
    Pusher Bracket, Hose Connector
  • 41
    705600068 Circlip
    Circlip
  • 42
    705600090 Compression Boot
    Compression Boot
  • 44
    705600182 Oil Tank, Brake Fluid Reservoir
    Oil Tank, Brake Fluid Reservoir
  • 45
    705600262 Oil Housing Hose
    Oil Housing Hose
  • 46
    250400007 Pin
    Pin
  • 47
    705600100 Yoke
    Yoke
  • 48
    232081414 Hex Nut M8
    Hex Nut M8
  • 49
    390406500 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 50
    710000734 Brake Switch
    Brake Switch
  • 51
    293800013 Loctite, Pipe Sealant, 250 ml
    Loctite, Pipe Sealant, 250 ml
  • 52
    705600397 Rear Caliper. Includes 52 to 60
    Rear Caliper. Includes 52 to 60
  • 53
    705600398 Brake Pad Kit
    Brake Pad Kit
  • 54
    705600399 Piston Set
    Piston Set
  • 55
    705600079 Spring
    Spring
  • 56
    705600080 Bleeding Screw
    Bleeding Screw
  • 57
    705600081 Pin Set
    Pin Set
  • 58
    705600082 Compression Boot
    Compression Boot
  • 59
    705600083 Compression Boot
    Compression Boot
  • 60
    705600298 LH Caliper Support
    LH Caliper Support
  • 61
    207582544 Hex Flanged Screw M8 X 25, Scotch Grip
    Hex Flanged Screw M8 X 25, Scotch Grip
  • 62
    705600555 Brake Pedal, Black
    Brake Pedal, Black
  • 63
    705600098 Break Pedal Spring
    Break Pedal Spring
  • 64
    207661644 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 65
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 66
    293550010 Synthetic Grease, 400 G
    Synthetic Grease, 400 G
  • 67
    293300053 O-Ring
    O-Ring
  • 68
    705600283 Spacer
    Spacer
  • 69
    207605544 Hex Flanged Screw M10 X 55
    Hex Flanged Screw M10 X 55
  • 70
    233201414 Hex Flanged Elastic Nut M10
    Hex Flanged Elastic Nut M10
  • 71
    207581646 Hex Flanged Screw M8 X 16, Scotch Grip
    Hex Flanged Screw M8 X 16, Scotch Grip
  • 72
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 73
    705600279 Front Brake Disc
    Front Brake Disc
  • 74
    235381646 Torx Screw M8 X 16, Scotch Grip
    Torx Screw M8 X 16, Scotch Grip
  • 75
    705600271 Brake Disc
    Brake Disc
  • 76
    250000143 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 77
    207662544 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 78
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
