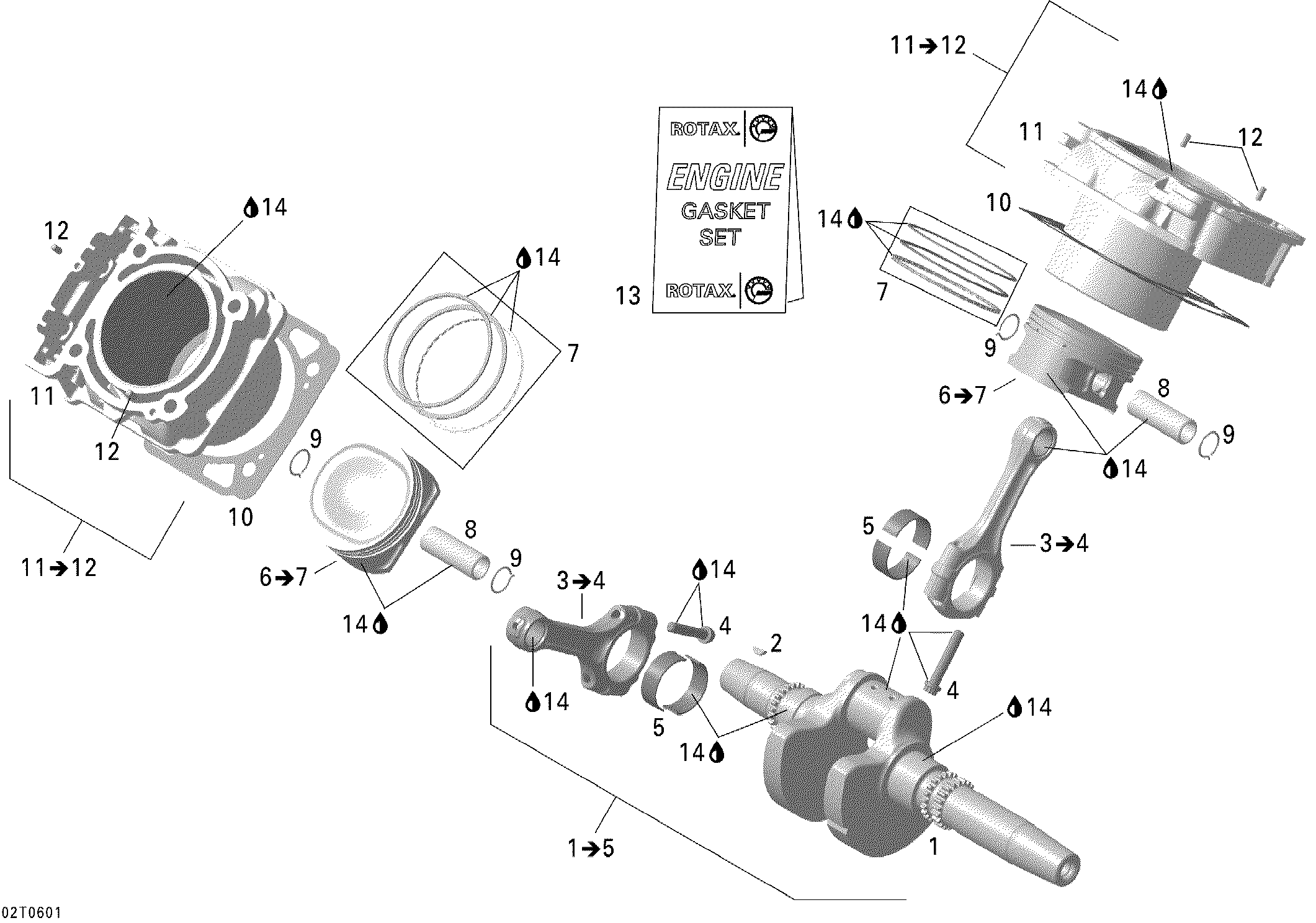

01- Crankshaft, Piston And Cylinder для BRP Outlander 800 STD 4 X 4 - 2006

  • №
    Артикул
    Название
  • 1
    420219665 Crankshaft
    Crankshaft
  • 2
    420246570 Woodruff Key
    Woodruff Key
  • 3
    420217425 Connecting Rod Ass'y. Includes 3 to 4
    Connecting Rod Ass'y. Includes 3 to 4
  • 4
    420641640 Connecting Rod Screw M8 X 1
    Connecting Rod Screw M8 X 1
  • 5
    420233980 Plain Bearing 40 X 43 X 15
    Plain Bearing 40 X 43 X 15
  • 6
    420296775 Piston Ass'y, 90.958 mm. Includes 6 to 7
    Piston Ass'y, 90.958 mm. Includes 6 to 7
  • 6
    420296776 Piston Ass'y, Oversize, 91.208 mm. Includes 6 to 7
    Piston Ass'y, Oversize, 91.208 mm. Includes 6 to 7
  • 7
    420296774 Piston Ring Set
    Piston Ring Set
  • 8
    420216270 Piston Pin
    Piston Pin
  • 9
    420845106 Piston Circlip
    Piston Circlip
  • 10
    420630210 Gasket
    Gasket
  • 11
    420613586 Cylinder Ass'y. Includes 11 to 12
    Cylinder Ass'y. Includes 11 to 12
  • 12
    420929650 Drive Pin, 5 X 10
    Drive Pin, 5 X 10
  • 13
    420684130 Gasket Set, Engine
    Gasket Set, Engine
  • 14
    293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 Liter
    Engine Oil 4 Strokes, 5w40, 12 X 1 Liter
