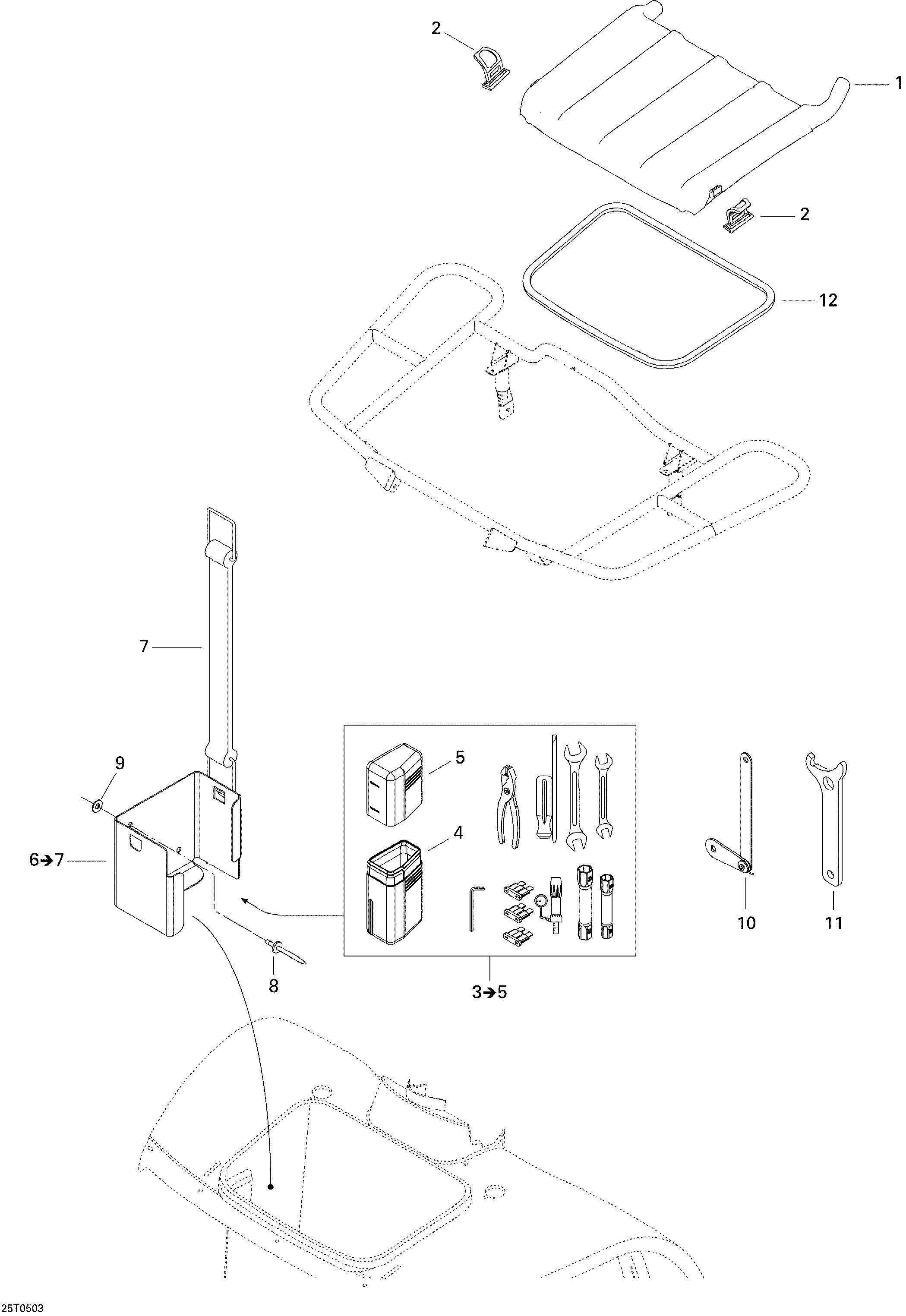

09- Front Storage Tray для BRP Traxter XL - 2005
-
№АртикулНазвание
-
1708200042 Storage CoverStorage Cover
-
2708200003 Cover LatchCover Latch
-
3704700084 Tool Kit. Includes 3 to 5Tool Kit. Includes 3 to 5
-
4708200041 Tool BoxTool Box
-
6708200007 Support Tray Ass'y. Includes 6 to 7Support Tray Ass'y. Includes 6 to 7
-
7293850080 Rubber StrapRubber Strap
-
8390402300 Pop-rivet 3/16''Pop-rivet 3/16''
-
9517225900 Flat WasherFlat Washer
-
10529035599 Transmission Wrench Ass'YTransmission Wrench Ass'Y
-
11529032900 Adjustment WrenchAdjustment Wrench
-
12293200093 Neoprene SealNeoprene Seal
