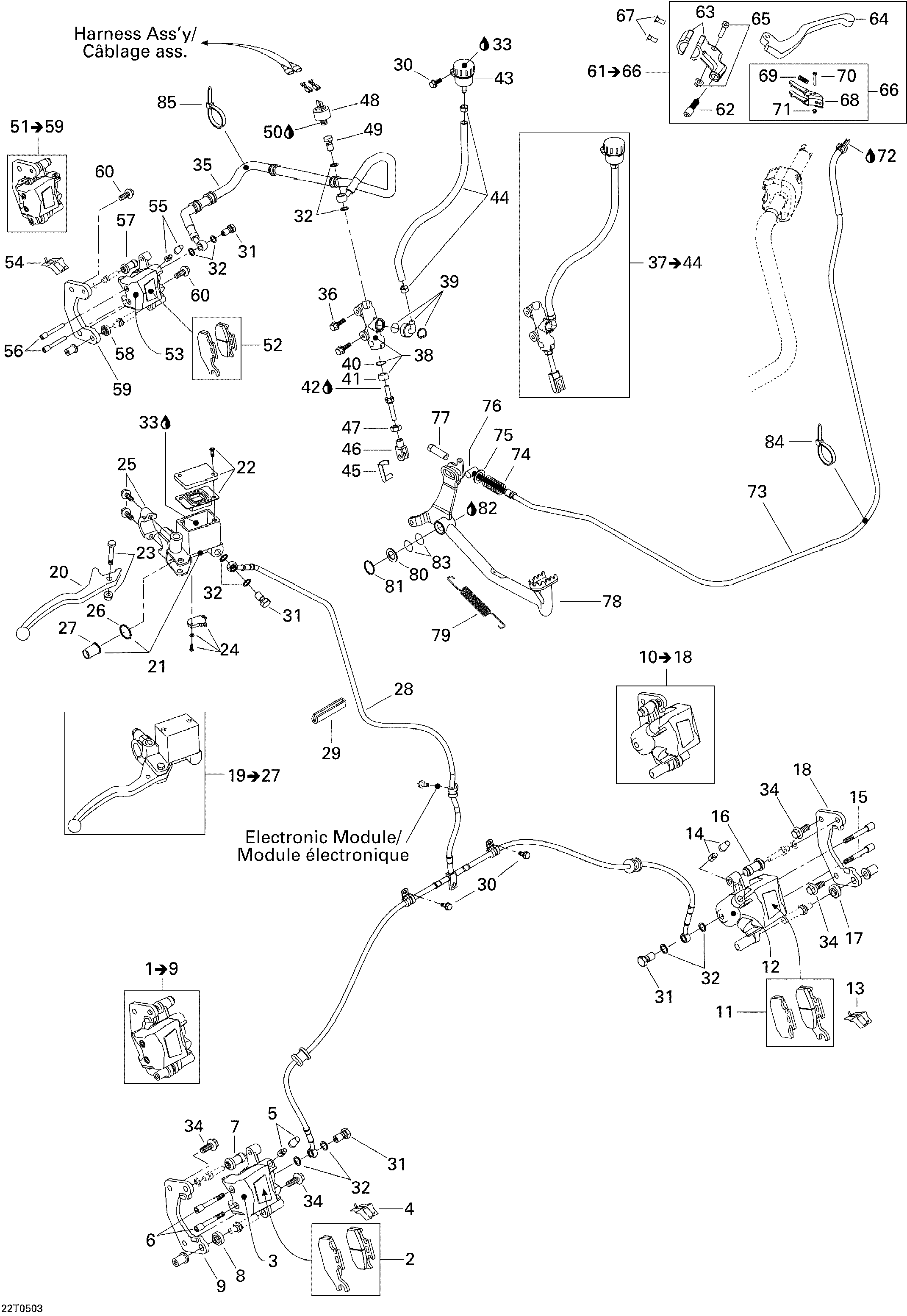

06- Brakes для BRP Traxter XL - 2005

№

Артикул

Название
1

705600118 RH Caliper. Includes 1 To 9

RH Caliper. Includes 1 To 9
2

705600004 Brake Pad Kit

Brake Pad Kit
3

705600078 Piston Set

Piston Set
4

705600079 Spring

Spring
5

705600080 Bleeder Screw

Bleeder Screw
6

705600081 Pin Set

Pin Set
7

705600082 Compression Boot

Compression Boot
8

705600083 Compression Boot

Compression Boot
9

705600149 Lining Support

Lining Support
10

705600119 LH Caliper. Includes 10 To 18

LH Caliper. Includes 10 To 18
11

705600014 Brake Pad Kit

Brake Pad Kit
12

705600078 Piston Set

Piston Set
13

705600079 Spring

Spring
14

705600080 Bleeder Screw

Bleeder Screw
15

705600081 Pin Set

Pin Set
16

705600082 Compression Boot

Compression Boot
17

705600083 Compression Boot

Compression Boot
18

705600149 Lining Support

Lining Support
19

705600120 Front Master Cylinder. Includes 19 To 27

Front Master Cylinder. Includes 19 To 27
20

705600164 Lever Arm

Lever Arm
21

705600152 Piston Kit

Piston Kit
22

705600084 Boot Kit

Boot Kit
23

705600085 Bolt Kit

Bolt Kit
24

705600148 Switch Kit

Switch Kit
25

705600087 Bracket Kit

Bracket Kit
26

705600088 Circlip

Circlip
27

705600089 Compression Boot

Compression Boot
28

705600290 Brake Hose

Brake Hose
29

414506600 Trim

Trim
30

210261680 Hex Flanged Forming Screw M6 X 16

Hex Flanged Forming Screw M6 X 16
31

705600396 Banjo Bolt

Banjo Bolt
32

414920600 Washer For Hose Connection

Washer For Hose Connection
33

293600063 Brake Fluid, Srf (dot 4)

Brake Fluid, Srf (dot 4)
33

293600062 Brake Fluid, Gtlma (dot 4) 12 X 354 ml

Brake Fluid, Gtlma (dot 4) 12 X 354 ml
34

250000057 Hex Screw M10 X 20 (Scotch Grip)

Hex Screw M10 X 20 (Scotch Grip)
35

705600292 Flexeble Hose

Flexeble Hose
36

207581646 Flanged Screw M8 X 16 (Scotch Grip)

Flanged Screw M8 X 16 (Scotch Grip)
37

705600154 Rear Master Cylinder Ass'Y. Includes 37 To 44

Rear Master Cylinder Ass'Y. Includes 37 To 44
38

705600063 Piston Set

Piston Set
39

705600064 Pusher Bracket

Pusher Bracket
40

705600068 Circlip

Circlip
41

705600090 Compression Boot

Compression Boot
43

705600182 Oil Tank

Oil Tank
44

705600169 Oil Housing Hose

Oil Housing Hose
45

250400007 Pin

Pin
46

705600100 Yoke

Yoke
47

232081414 Hex Nut M8

Hex Nut M8
48

710000734 Brake Switch

Brake Switch
49

705600092 Banjo Bolt

Banjo Bolt
50

293800013 Loctite, Pipe Sealant, 250 ml

Loctite, Pipe Sealant, 250 ml
51

705600122 Rear Caliper. Includes 51 To 59

Rear Caliper. Includes 51 To 59
52

705600150 Brake Pad Kit

Brake Pad Kit
53

705600078 Piston Set

Piston Set
54

705600079 Spring

Spring
55

705600080 Bleeder Screw

Bleeder Screw
56

705600081 Pin Set

Pin Set
57

705600082 Compression Boot

Compression Boot
58

705600083 Compression Boot

Compression Boot
59

705600149 Lining Support

Lining Support
60

250000163 Hex Screw M10 X 14 (Scotch Grip)

Hex Screw M10 X 14 (Scotch Grip)
61

705600011 Brake Handle. Includes 61 To 66

Brake Handle. Includes 61 To 66
62

250000030 Cable Screw

Cable Screw
63

705600184 Clamp Kit

Clamp Kit
64

705600186 Lever

Lever
65

705600187 Pivot Kit

Pivot Kit
66

705600188 Lever Lock Kit

Lever Lock Kit
67

205351646 Socket Head Screw M5 X 16

Socket Head Screw M5 X 16
68

705600387 Lock Lever

Lock Lever
69

705600225 Spring

Spring
70

208032291 Phillips Slotted Head Screw M3 X 22

Phillips Slotted Head Screw M3 X 22
71

232531423 Elastic Stop Nut M3

Elastic Stop Nut M3
72

293600041 Cable Lubricant, 400 G

Cable Lubricant, 400 G
73

705600099 Rear Brake Cable

Rear Brake Cable
74

705600144 Spring

Spring
75

705600145 Flat Washer

Flat Washer
76

705600146 Cable Barrel

Cable Barrel
77

705600388 Nut

Nut
78

705600125 Brake Pedal (Black)

Brake Pedal (Black)
79

705600107 Brake Pedal Spring

Brake Pedal Spring
80

503107800 Washer

Washer
81

293370012 Circlip

Circlip
82

293550010 Synthetic Grease, 400 G

Synthetic Grease, 400 G
83

293300053 O-Ring

O-Ring
84

414115200 Tie-Rap

Tie-Rap
85

293750008 Tie-Rap 350 mm

Tie-Rap 350 mm
