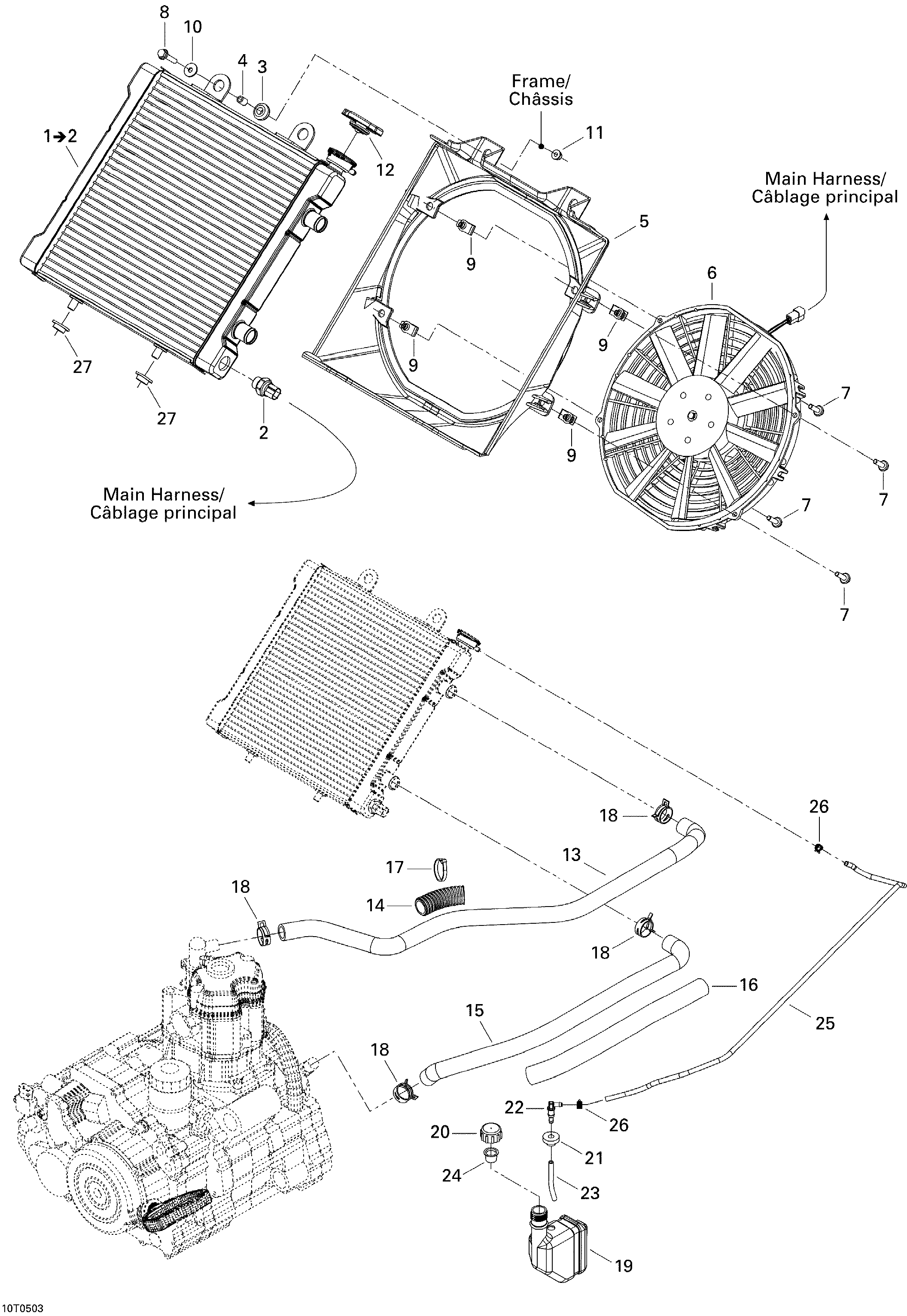

01- Cooling System для BRP Traxter XL - 2005
-
№АртикулНазвание
-
1709200109 Radiator Ass'Y. Includes 1 to 2Radiator Ass'Y. Includes 1 to 2
-
2709200089 Temperature SensorTemperature Sensor
-
3293720053 GrommetGrommet
-
4293900019 BushingBushing
-
5709200111 Outer ShroudOuter Shroud
-
6709200112 Fan Ass'YFan Ass'Y
-
7207562044 Flanged Screw M6 X 20 (Scotch Grip)Flanged Screw M6 X 20 (Scotch Grip)
-
8207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10391302000 Flat WasherFlat Washer
-
11233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
12709200033 Pressure CapPressure Cap
-
13709200052 Radiator Inlet HoseRadiator Inlet Hose
-
14709200031 Protection ShieldProtection Shield
-
15709200054 Outlet HoseOutlet Hose
-
16709200032 Protection ShieldProtection Shield
-
17414115200 Tie-RapTie-Rap
-
18293650109 Norma Spring ClampNorma Spring Clamp
-
19709200099 Coolant TankCoolant Tank
-
20709200009 Tank CapTank Cap
-
21570135100 GrommetGrommet
-
22414580600 Elbow Male ConnectorElbow Male Connector
-
23415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
24709200034 Protection CapProtection Cap
-
25415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
26414554800 Universal Spring ClampUniversal Spring Clamp
-
27709200115 BushingBushing
