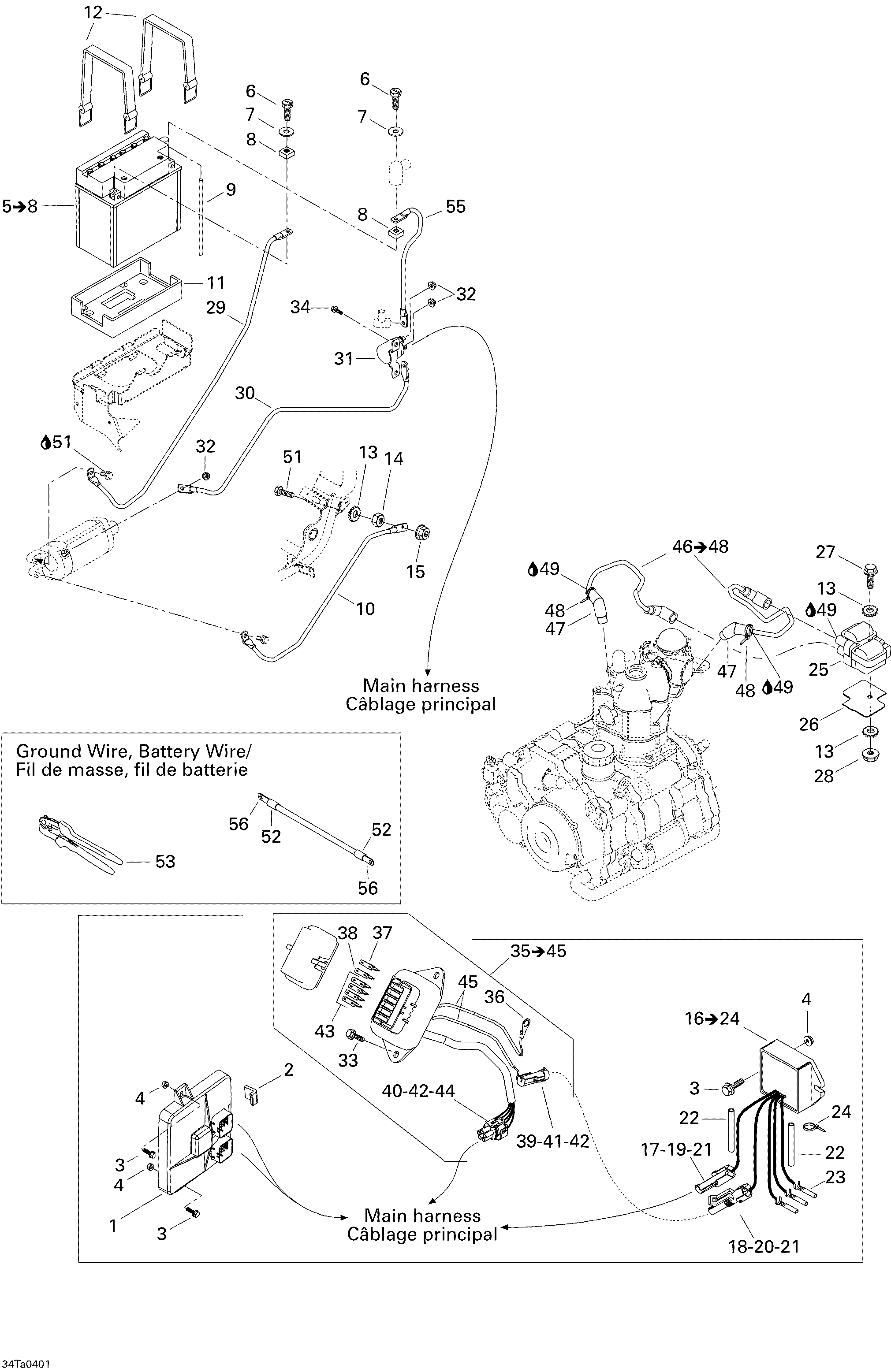

10- Battery And Electrical Accessories для BRP Traxter Max Std & Max XT - 2004

  • №
    Артикул
    Название
  • 1
    710000315 Electronic module
    Electronic module
  • 2
    278001166 Module protector
    Module protector
  • 3
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 4
    233261414 Elastic flanged stop nut M6
    Elastic flanged stop nut M6
  • 5
    278001756 Battery. INCLUDES 5 TO 8
    Battery. INCLUDES 5 TO 8
  • 6
    211000045 Hex. screw
    Hex. screw
  • 7
    211200018 Flat washer 6 mm
    Flat washer 6 mm
  • 8
    211100022 Nut M6
    Nut M6
  • 9
    415110000 Polyurethane Hose 5.2 mm
    Polyurethane Hose 5.2 mm
  • 10
    710000022 Ground cable
    Ground cable
  • 11
    278001746 Battery lower pad
    Battery lower pad
  • 12
    293850080 Rubber strap
    Rubber strap
  • 13
    234461608 External tooth lock washer 6 mm
    External tooth lock washer 6 mm
  • 14
    232061414 Nut M6
    Nut M6
  • 15
    233261414 Elastic flanged stop nut M6
    Elastic flanged stop nut M6
  • 16
    710000100 Voltage Regulator. INCLUDES 16 TO 24
    Voltage Regulator. INCLUDES 16 TO 24
  • 17
    278000222 Male terminal
    Male terminal
  • 18
    278000223 Female terminal
    Female terminal
  • 19
    278000161 Female terminal housing (1 circuit)
    Female terminal housing (1 circuit)
  • 20
    278000219 Male terminal housing (1 circuit)
    Male terminal housing (1 circuit)
  • 21
    278000218 Wire seal
    Wire seal
  • 22
    409901300 Vinyl temp
    Vinyl temp
  • 23
    710000034 Female terminal
    Female terminal
  • 24
    293750001 Tie rap
    Tie rap
  • 25
    278001546 Ignition Coil
    Ignition Coil
  • 26
    710000073 Insulator pad
    Insulator pad
  • 27
    207665044 Hex. flanged screw M6 x 50
    Hex. flanged screw M6 x 50
  • 28
    233261414 Elastic flanged stop nut M6
    Elastic flanged stop nut M6
  • 29
    710000211 Ground cable
    Ground cable
  • 30
    710000136 Positive cable
    Positive cable
  • 31
    515176011 Starter relay
    Starter relay
  • 32
    232561600 Elastic stop nut M6
    Elastic stop nut M6
  • 33
    210261680 Hex. screw M6 x 16
    Hex. screw M6 x 16
  • 34
    250000061 Hex. tapping screw ?''-20 x ?''
    Hex. tapping screw ?''-20 x ?''
  • 35
    710000579 Fuse holder. INCLUDES 35 TO 45
    Fuse holder. INCLUDES 35 TO 45
  • 36
    278001392 Open barrel
    Open barrel
  • 37
    410917200 Fuse 30 amp.
    Fuse 30 amp.
  • 38
    409003900 Fuse 20 amp.
    Fuse 20 amp.
  • 39
    409004300 Male terminal
    Male terminal
  • 40
    409007300 Female terminal
    Female terminal
  • 41
    278000161 Female terminal housing (1 Circuit)
    Female terminal housing (1 Circuit)
  • 42
    278000218 Wire seal
    Wire seal
  • 710000048 Wire seal
    Wire seal
  • 43
    278000343 Fuse 15 amp.
    Fuse 15 amp.
  • 44
    710000106 Female terminal housing (5 circuits)
    Female terminal housing (5 circuits)
  • 45
    710000482 Shrink tubing
    Shrink tubing
  • 46
    710000039 Spark plug wire. INCLUDES 46 TO 48
    Spark plug wire. INCLUDES 46 TO 48
  • 47
    710000041 Spark plug cap
    Spark plug cap
  • 48
    293750001 Tie rap 94 mm
    Tie rap 94 mm
  • 49
    293550004 Dielectric grease,150 g
    Dielectric grease,150 g
  • 50
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 51
    207162044 Hex. screw M6 x 20
    Hex. screw M6 x 20
  • 52
    278001692 Heat Shrink
    Heat Shrink
  • 53
    529035730 Crimp plier
    Crimp plier
  • 54
    278001680 Ground Cable Battery (no. 6) (Meter)
    Ground Cable Battery (no. 6) (Meter)
  • 55
    278001690 Red Cable Battery (no. 6) (Meter)
    Red Cable Battery (no. 6) (Meter)
  • 56
    278001682 Flat Terminal (Small Hole)
    Flat Terminal (Small Hole)
  • 278001683 Terminal 45° (Small Hole)
    Terminal 45° (Small Hole)
  • 278001684 Terminal 90° (Small Hole)
    Terminal 90° (Small Hole)
  • 278001685 Flat Terminal (Big Hole)
    Flat Terminal (Big Hole)
  • 278001686 Terminal 45° (Big Hole)
    Terminal 45° (Big Hole)
  • 278001687 Terminal 90° (Big Hole)
    Terminal 90° (Big Hole)
  • 278001688 Flat Terminal
    Flat Terminal
  • 278001776 Terminal 30° (2 holes)
    Terminal 30° (2 holes)
