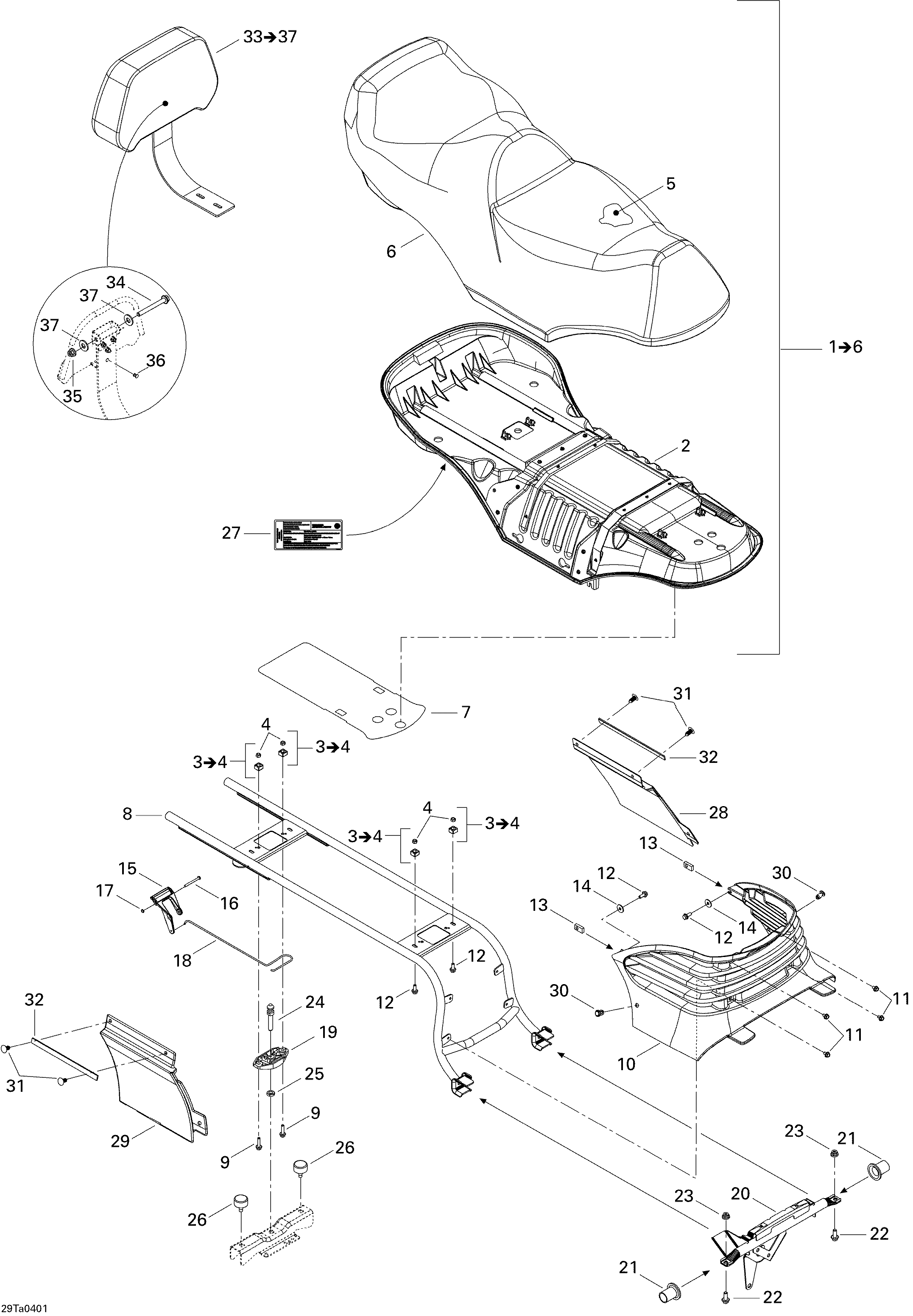

09- Seat для BRP Traxter Max Std & Max XT - 2004

  • №
    Артикул
    Название
  • 1
    708000321 Seat ass'y (viper red). INCLUDES 1 TO 6
    Seat ass'y (viper red). INCLUDES 1 TO 6
  • 708000339 Seat ass'y XT (yellow)
    Seat ass'y XT (yellow)
  • 708000340 Seat ass'y (Laurentian green)
    Seat ass'y (Laurentian green)
  • 3
    708000046 Nut housing ass'y. INCLUDES 3 TO 4
    Nut housing ass'y. INCLUDES 3 TO 4
  • 4
    232561414 Hex elastic nut M6
    Hex elastic nut M6
  • 6
    708000243 Seat cover (viper red)
    Seat cover (viper red)
  • 708000246 Seat cover XT (yellow)
    Seat cover XT (yellow)
  • 708000248 Seat cover (Laurentian green)
    Seat cover (Laurentian green)
  • 7
    708000160 Reflective sheet
    Reflective sheet
  • 8
    708000173 Seat support
    Seat support
  • 9
    207662544 Hex flanged screw M6 x 25
    Hex flanged screw M6 x 25
  • 10
    705000707 Engine cover (grey)
    Engine cover (grey)
  • 11
    210261080 Hex forming flanged screw M6 x 10
    Hex forming flanged screw M6 x 10
  • 12
    207661644 Hex flanged screw M6 x 16
    Hex flanged screw M6 x 16
  • 13
    708000042 Nut housing M6
    Nut housing M6
  • 14
    224061201 Flat washer
    Flat washer
  • 15
    708000010 Latch lever
    Latch lever
  • 16
    293150062 Rivet 3/16''
    Rivet 3/16''
  • 17
    389804300 Push Nut
    Push Nut
  • 18
    708000015 Spring
    Spring
  • 19
    708000034 Latch base
    Latch base
  • 20
    708000177 Pivot seat
    Pivot seat
  • 21
    708000019 Seat bushing
    Seat bushing
  • 22
    207682044 Hex flanged screw M8 x 20
    Hex flanged screw M8 x 20
  • 23
    233281414 Hex flanged elastic nut M8
    Hex flanged elastic nut M8
  • 24
    291000945 Seat stud
    Seat stud
  • 25
    232100600 Hex jam nut M10
    Hex jam nut M10
  • 26
    708000006 Rubber stopper
    Rubber stopper
  • 27
    704900625 Emission label
    Emission label
  • 28
    705000669 L.h. panel (viper red)
    L.h. panel (viper red)
  • 705000694 L.h. panel XT (yellow)
    L.h. panel XT (yellow)
  • 705000880 L.h. panel (Laurentian green)
    L.h. panel (Laurentian green)
  • 29
    705000670 R.h. panel (viper red)
    R.h. panel (viper red)
  • 705000695 R.h. panel XT (yellow)
    R.h. panel XT (yellow)
  • 705000881 R.h. panel (Laurentian green)
    R.h. panel (Laurentian green)
  • 30
    293150089 Plastic Tuflok rivet
    Plastic Tuflok rivet
  • 31
    293730010 Dart
    Dart
  • 32
    293250087 Gasket
    Gasket
  • 33
    708000301 Backrest ass'y. INCLUDES 33 TO 37
    Backrest ass'y. INCLUDES 33 TO 37
  • 34
    207089544 Hex screw M8 x 95
    Hex screw M8 x 95
  • 35
    233281414 Elastic flanged nut M8
    Elastic flanged nut M8
  • 36
    293150104 Pop rivet 3/16''
    Pop rivet 3/16''
  • 37
    706200281 Hard washer
    Hard washer
