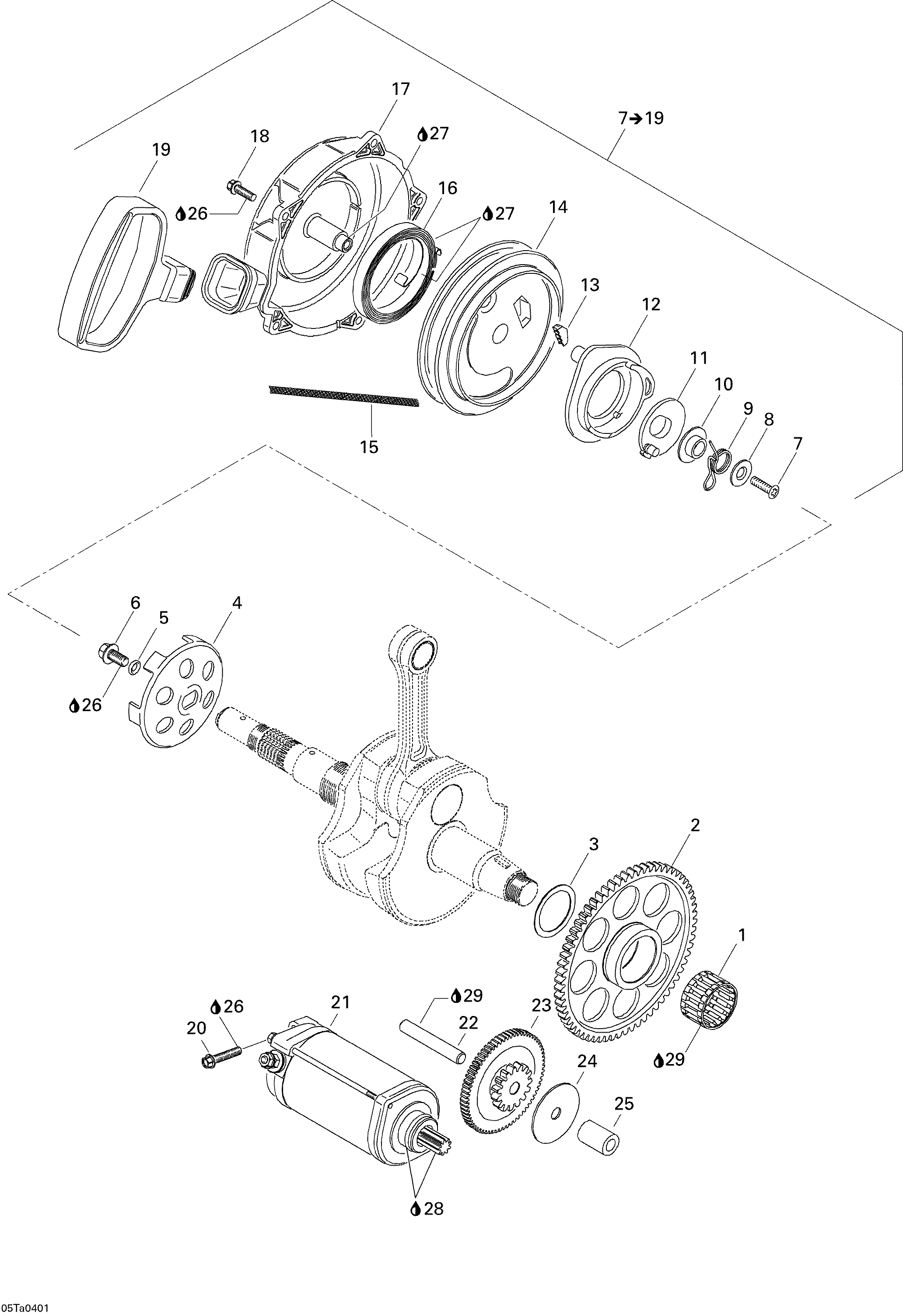

04- Rewind Starter, Electric Starter для BRP Traxter Max Std & Max XT - 2004

№

Артикул

Название
1

420632190 Needle cage

Needle cage
2

420634941 Ring gear (65 teeth)

Ring gear (65 teeth)
3

420244290 Thrust washer

Thrust washer
4

420852501 Starting pulley

Starting pulley
5

420650710 O-ring

O-ring
6

420241720 Hex. flanged screw M8 x 20

Hex. flanged screw M8 x 20
7

420296150 Rewind Starter Ass'y. INCLUDES 7 TO 19

Rewind Starter Ass'y. INCLUDES 7 TO 19
7A

420241730 Screw plastite M6 x 20

Screw plastite M6 x 20
8

420244320 Flat washer

Flat washer
9

420938989 Locking spring

Locking spring
10

420847927 Stage sleeve

Stage sleeve
11

420852306 Pawl lock

Pawl lock
12

420852299 Pawl

Pawl
13

420852070 Key clamp

Key clamp
14

420852283 Rope sheave

Rope sheave
15

412500100 Starter rope 2200 mm (meter)

Starter rope 2200 mm (meter)
16

420939115 Rewind Spring

Rewind Spring
17

420211960 Starter rope housing

Starter rope housing
18

420241861 Hex. flanged screw M6 x 20

Hex. flanged screw M6 x 20
19

420852515 Starting grip

Starting grip
20

420241941 Hex. flanged screw M6 x 30

Hex. flanged screw M6 x 30
21

420296125 Electric starter ass'y

Electric starter ass'y
21

420266295 Brush Kit (Not shown)

Brush Kit (Not shown)
21

420250140 Starter O-ring (Not shown)

Starter O-ring (Not shown)
21

420250130 Starter Seal (Not shown)

Starter Seal (Not shown)
22

420229470 Cylindrical pin 10 x 65

Cylindrical pin 10 x 65
23

420634970 Double gear 15/67 teeth

Double gear 15/67 teeth
24

420227620 Thrust washer

Thrust washer
25

420847485 Spacer

Spacer
26

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml
27

420899763 Molykote PG 54, 10 g

Molykote PG 54, 10 g
28

711297616 Grease, 60g

Grease, 60g
