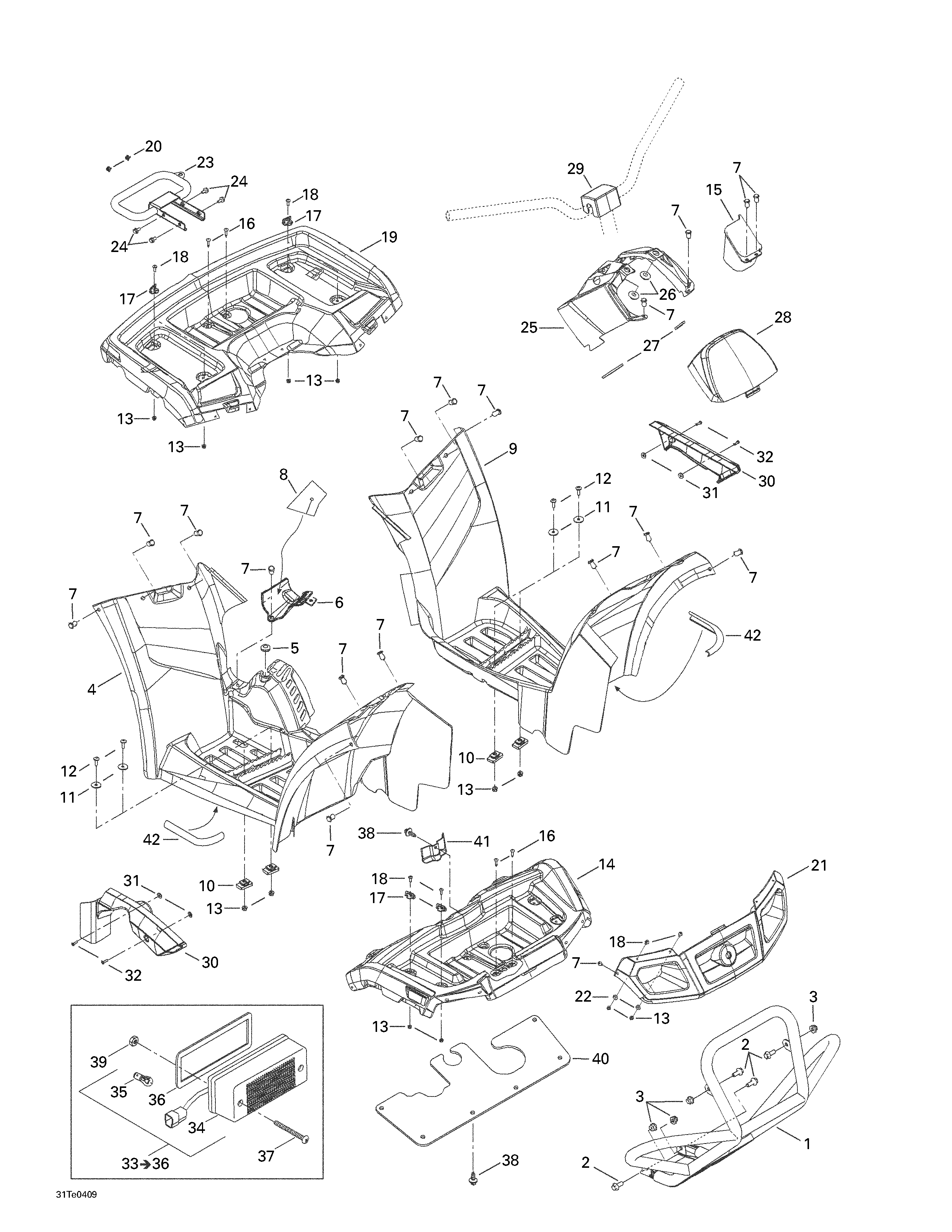

09- Body And Accessories для BRP Rally 175 - 2004

-
№АртикулНазвание
-
1705000346 Front BumperFront Bumper
-
2207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
3233281414 Elastic Flanged NutElastic Flanged Nut
-
4705000899 R.H. Foot-Well (Laurentian Green B-241)R.H. Foot-Well (Laurentian Green B-241)
-
705000515 R.H. Foot-Well (Viper Red B-176)R.H. Foot-Well (Viper Red B-176)
-
705000516 R.H. Foot-Well (Yellow B-190)R.H. Foot-Well (Yellow B-190)
-
5293720062 GrommetGrommet
-
6705000410 Chain CoverChain Cover
-
7293150089 Plastique RivetPlastique Rivet
-
8705000563 Reflective SheetReflective Sheet
-
9705000900 L.H. Foot-Well (Laurentian Green B-241)L.H. Foot-Well (Laurentian Green B-241)
-
705000521 L.H. Foot-Well (Viper Red B-176)L.H. Foot-Well (Viper Red B-176)
-
705000522 L.H. Foot-Well (Yellow B-190)L.H. Foot-Well (Yellow B-190)
-
10705000407 Rubber StopperRubber Stopper
-
11250200029 Washer M6Washer M6
-
12210263080 Hex. Forming Screw M6 x 30Hex. Forming Screw M6 x 30
-
13233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
14705000867 Front Luggage RackFront Luggage Rack
-
15705000451 CupCup
-
16250000081 Screw M6 x 25Screw M6 x 25
-
17705000560 HookHook
-
18211000123 Screw M6 x 20Screw M6 x 20
-
19705000351 Rear Luggage RackRear Luggage Rack
-
20250100035 Jack Nut M5Jack Nut M5
-
21705000868 Front Fascia (Viper Red B-176)Front Fascia (Viper Red B-176)
-
705000869 Front Fascia (Yellow B-190)Front Fascia (Yellow B-190)
-
705000901 Front Fascia (Laurentian Green B-241)Front Fascia (Laurentian Green B-241)
-
22224060201 Flat WasherFlat Washer
-
23705000353 Rear BumperRear Bumper
-
24207581646 Hex. Flanged Screw M8 x 16Hex. Flanged Screw M8 x 16
-
25705000902 Dash Board (Laurentian Green B-241)Dash Board (Laurentian Green B-241)
-
705000527 Dash Board (Viper Red B-176)Dash Board (Viper Red B-176)
-
705000528 Dash Board (Yellow B-190)Dash Board (Yellow B-190)
-
26705005156 Oblong WasherOblong Washer
-
27570023800 Windshield LatchWindshield Latch
-
28705000903 Console Cover (Laurentian Green B-241)Console Cover (Laurentian Green B-241)
-
705000530 Console Cover (Viper Red B-176)Console Cover (Viper Red B-176)
-
705000531 Console Cover (Yellow B-190)Console Cover (Yellow B-190)
-
29705000371 Steering CoverSteering Cover
-
30705000564 R.H. CoverR.H. Cover
-
705000565 L.H. CoverL.H. Cover
-
31293900049 SpacerSpacer
-
32211000123 Screw M6 x 20Screw M6 x 20
-
33710000102 Tail Light Housing. Includes 33 - 36.Tail Light Housing. Includes 33 - 36.
-
34710000055 Red LensRed Lens
-
35410504100 Tail Lamp BulbTail Lamp Bulb
-
36710000129 GasketGasket
-
37208656091 Screw M5 x 60Screw M5 x 60
-
38293730011 DartDart
-
39233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
40705000632 DeflectorDeflector
-
41705000883 DeflectorDeflector
-
42293250087 GasketGasket
