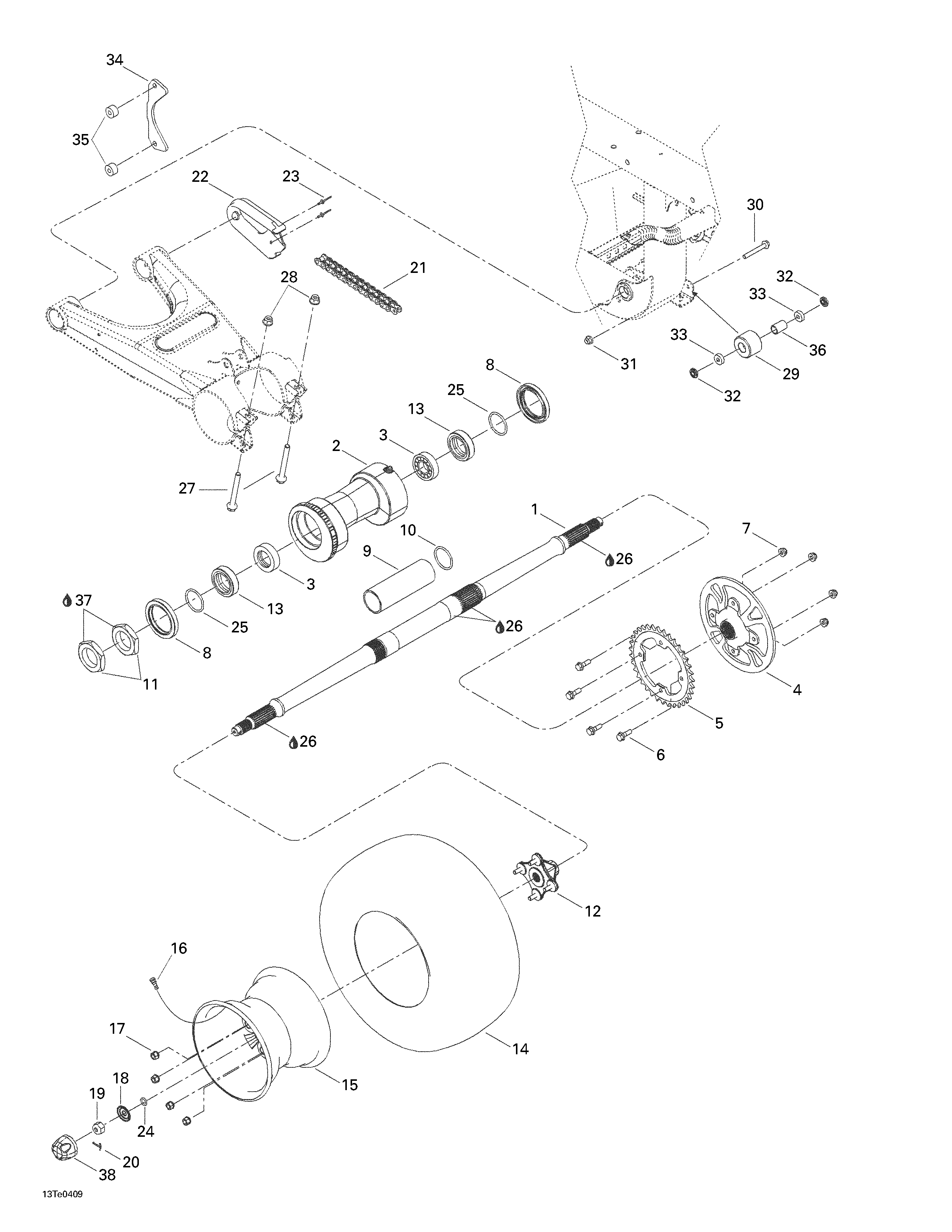

05- Drive System, Rear для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1705500220 Rear AxleRear Axle
-
2705500277 Chain TightenerChain Tightener
-
3705500275 Ball BearingBall Bearing
-
4705500217 Welded HubWelded Hub
-
5705500219 SprocketSprocket
-
6207582586 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
7233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
8293250115 Oil SealOil Seal
-
9705500291 SpacerSpacer
-
10705500292 Retainer RingRetainer Ring
-
11705500293 Locking NutLocking Nut
-
12705500341 Wheel Hub Ass'yWheel Hub Ass'y
-
13705500412 Wearing RingWearing Ring
-
14705500294 Rear TireRear Tire
-
15705500295 Rear RimRear Rim
-
16705400193 Rim ValveRim Valve
-
17250100042 Wheel NutWheel Nut
-
18705500481 Formed WasherFormed Washer
-
19232591414 Elastic Stop Nut M18Elastic Stop Nut M18
-
20250400016 Cotter PinCotter Pin
-
21705500274 ChainChain
-
22705500439 Shoe SliderShoe Slider
-
23293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
24293300082 O-RingO-Ring
-
25293300089 O-RingO-Ring
-
26293550019 Grease, 60gGrease, 60g
-
27207609044 Hex. Flanged Screw M10 x 90Hex. Flanged Screw M10 x 90
-
28233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
29705500368 Chain RollerChain Roller
-
30207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
31233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
32705500398 SpacerSpacer
-
33293350039 Ball BearingBall Bearing
-
34705500425 Chain GuideChain Guide
-
35705500426 SpacerSpacer
-
36705500397 BushingBushing
-
37293800073 Loctite 277, 10 mlLoctite 277, 10 ml
-
38705400012 Wheel CapWheel Cap
