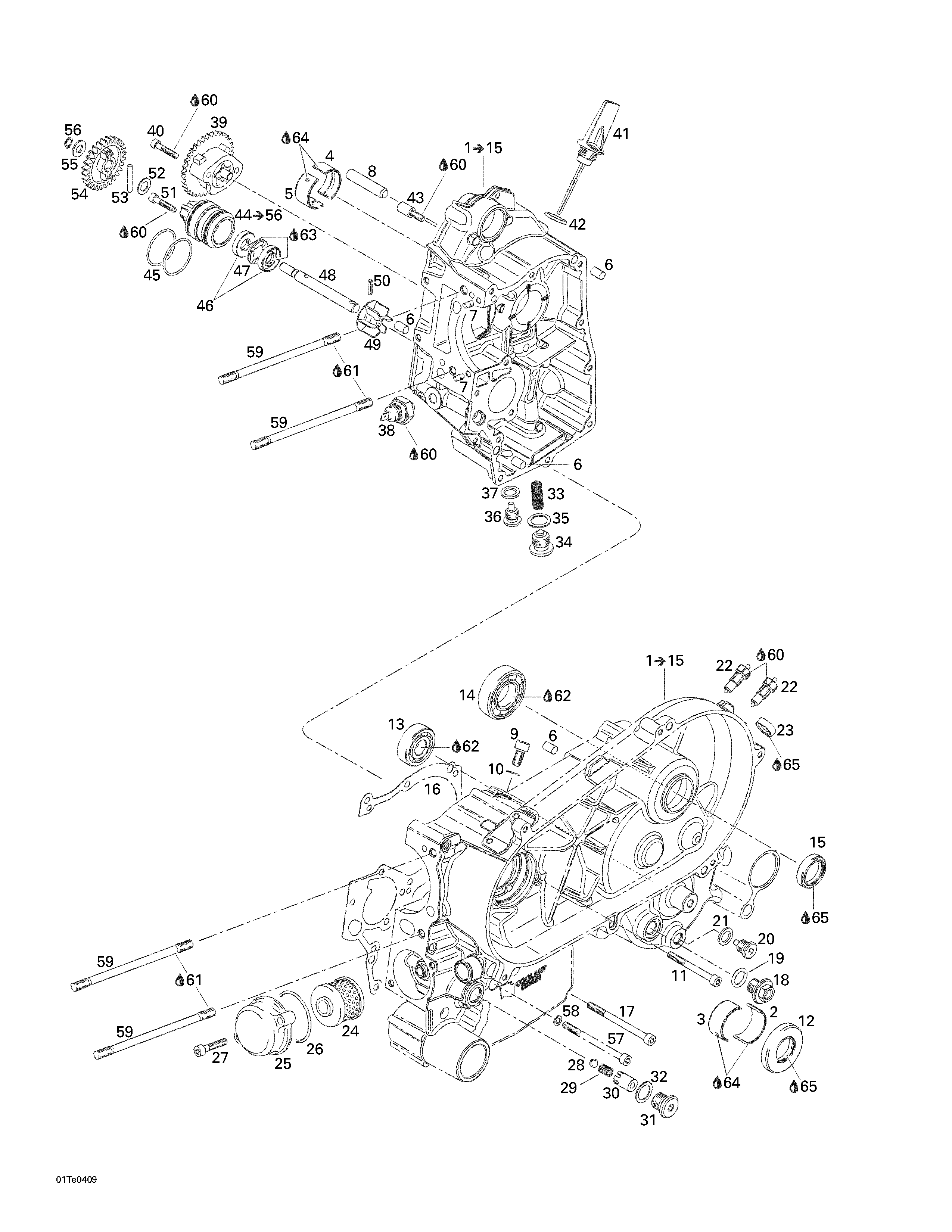

01- Crankcase, Water Pump And Oil Pump для BRP Rally 175 - 2004
-
№АртикулНазвание
-
1420296691 Crankcase Ass'y. Includes 1 - 15.Crankcase Ass'y. Includes 1 - 15.
-
2420233710 Plain BearingPlain Bearing
-
3420233712 Plain BearingPlain Bearing
-
4420233715 Plain BearingPlain Bearing
-
5420233717 Plain BearingPlain Bearing
-
6420632010 Center PinCenter Pin
-
7420929650 Drive PinDrive Pin
-
8420229301 Location PinLocation Pin
-
9205081660 Socket Screw M8 x 16Socket Screw M8 x 16
-
10420950141 Sealing RingSealing Ring
-
11420240371 Allen Screw M6 x 60Allen Screw M6 x 60
-
12420831177 Oil SealOil Seal
-
13420232293 Ball BearingBall Bearing
-
14420232768 Ball BearingBall Bearing
-
15420250950 Oil SealOil Seal
-
16420650745 GasketGasket
-
17420241501 Allen Screw M6 x 80Allen Screw M6 x 80
-
18420241660 Plug Screw M14 x 1.5Plug Screw M14 x 1.5
-
19420650350 O-RingO-Ring
-
20420841921 Plug Screw M12x 1.5Plug Screw M12x 1.5
-
21420250640 GasketGasket
-
22420241856 Contact Screw M10Contact Screw M10
-
23420250992 Oil SealOil Seal
-
24715500367 Oil Filter Rotax 256452Oil Filter Rotax 256452
-
25420211500 Oil Filter CoverOil Filter Cover
-
26420430920 O-RingO-Ring
-
27420241941 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
28420432680 Ball 8.5 mmBall 8.5 mm
-
29420239280 Compression SpringCompression Spring
-
30420256483 Pressure Retainer Valve HousingPressure Retainer Valve Housing
-
31420240230 Plug Screw M16 x 1.5Plug Screw M16 x 1.5
-
32420430622 O-RingO-Ring
-
33420256490 Oil SieveOil Sieve
-
34420240235 Plug Screw M16 x 1.5Plug Screw M16 x 1.5
-
35420430622 O-RingO-Ring
-
36420241786 Magnetic Drain PlugMagnetic Drain Plug
-
37420250640 GasketGasket
-
38420956166 Oil Pressure SwitchOil Pressure Switch
-
39420295630 Oil Pump Ass'yOil Pump Ass'y
-
40420241275 Taptite ScrewTaptite Screw
-
41420256465 Oil DipstickOil Dipstick
-
42420230890 O-RingO-Ring
-
43420240940 Bearing Screw M6Bearing Screw M6
-
44420293419 Water Pump Ass'y. Includes 44 - 56.Water Pump Ass'y. Includes 44 - 56.
-
45420430900 O-RingO-Ring
-
46420230196 Oil SealOil Seal
-
47420260710 Distance ShimDistance Shim
-
48420220355 Water Pump ShaftWater Pump Shaft
-
49420222482 Water ImpellerWater Impeller
-
50420229280 Slotted Spring PinSlotted Spring Pin
-
51420241275 Taptite Screw M5 x 25Taptite Screw M5 x 25
-
52420827590 Thrust WasherThrust Washer
-
53420232430 Needle PinNeedle Pin
-
54420634430 Water Pump GearWater Pump Gear
-
55420827405 Flat WasherFlat Washer
-
56420245570 Retaining RingRetaining Ring
-
57420241501 Allen Screw M6 x 80Allen Screw M6 x 80
-
58420230415 Seal WasherSeal Washer
-
59420640240 StudStud
-
60293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
61293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
62293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
63413707000 Molykote 111Molykote 111
-
64420297433 Molykote G-n Paste, Dow Corning, 50 gMolykote G-n Paste, Dow Corning, 50 g
-
65293550014 Grease, Super Lube, 50 gGrease, Super Lube, 50 g
