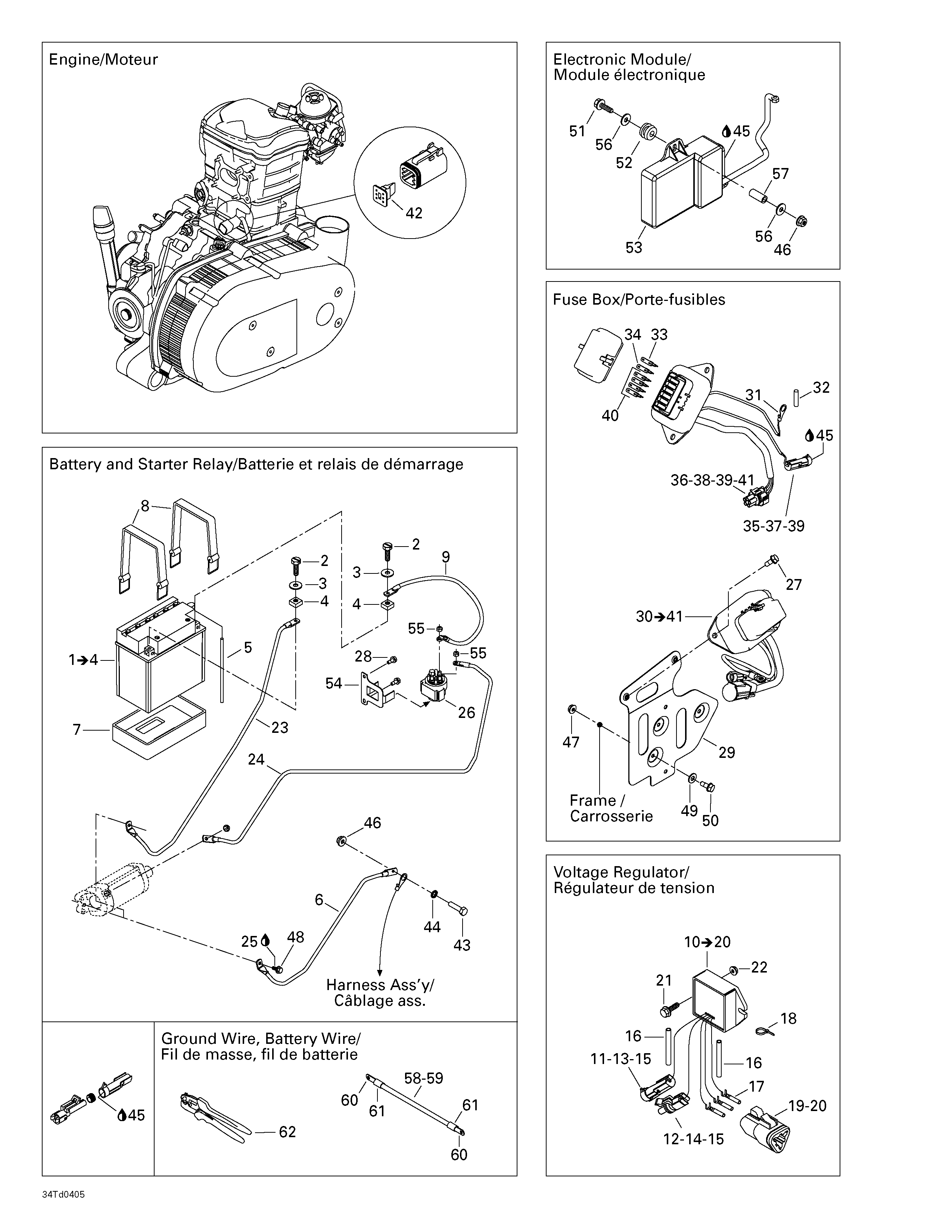

10- Battery And Electrical Accessories для BRP Quest STD - 2004
-
№АртикулНазвание
-
1278001756 Battery. Includes 1 - 4.Battery. Includes 1 - 4.
-
2211000045 Hex. ScrewHex. Screw
-
3211200018 Flat Washer 6 mmFlat Washer 6 mm
-
4211100022 Nut M6Nut M6
-
5415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
7278001746 Battery Lower PadBattery Lower Pad
-
8293850080 Rubber StrapRubber Strap
-
10710000449 Voltage Regulator. Includes 10 - 20.Voltage Regulator. Includes 10 - 20.
-
11278000222 Male TerminalMale Terminal
-
12278000223 Female TerminalFemale Terminal
-
13278000161 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
14278000219 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
15278000218 Wire SealWire Seal
-
16409901300 Vinyl Temp (meter)Vinyl Temp (meter)
-
17710000034 Female TerminalFemale Terminal
-
18293750001 Tie Rap 94 mmTie Rap 94 mm
-
19409207400 Female HousingFemale Housing
-
20409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
21207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
22233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23710000211 Ground CableGround Cable
-
25293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
26710000344 Starter RelayStarter Relay
-
27210261080 Hex. Forming Screw M6 x 10Hex. Forming Screw M6 x 10
-
28250000061 Hex. Screw M6.3 x 19Hex. Screw M6.3 x 19
-
29710000443 Module BracketModule Bracket
-
30710000579 Fuse Hoder. Includes 30 - 41.Fuse Hoder. Includes 30 - 41.
-
31278001392 Open BarrelOpen Barrel
-
32710000482 Shrink TubingShrink Tubing
-
33410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
34409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
35409004300 Male TerminalMale Terminal
-
36409007300 Female Terminal (14 auge)Female Terminal (14 auge)
-
37278000161 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
38278000218 Wire SealWire Seal
-
39710000048 Wire SealWire Seal
-
40278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
41710000106 Female Terminal Housing (5 Circuit)Female Terminal Housing (5 Circuit)
-
42278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
43207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
44234461608 Serrated Lock Washer M6Serrated Lock Washer M6
-
45293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
46233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
47233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
48207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
49234051410 Flat Washer M5Flat Washer M5
-
50207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
51207663044 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
52293720053 GrommetGrommet
-
53710000625 Electronic ModuleElectronic Module
-
54710000300 SupportSupport
-
55232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
56224060201 Flat washerFlat washer
-
57293900045 BushingBushing
-
58278001680 Ground Cable Battery (no. 6) (Meter)Ground Cable Battery (no. 6) (Meter)
-
59278001690 Red Cable Battery (no. 6) (Meter)Red Cable Battery (no. 6) (Meter)
-
60278001682 Flat Terminal (Small Hole)Flat Terminal (Small Hole)
-
278001683 Terminal 45 Deg. (Small Hole)Terminal 45 Deg. (Small Hole)
-
278001684 Terminal 90 Deg. (Small Hole)Terminal 90 Deg. (Small Hole)
-
278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
278001686 Terminal 45 Deg. (Big Hole)Terminal 45 Deg. (Big Hole)
-
278001687 Terminal 90 Deg. (Big Hole)Terminal 90 Deg. (Big Hole)
-
278001688 Flat TerminalFlat Terminal
-
278001776 Terminal 30 Deg. (2 holes)Terminal 30 Deg. (2 holes)
-
61278001692 Heat ShrinkHeat Shrink
-
62529035730 Crimp PlierCrimp Plier
