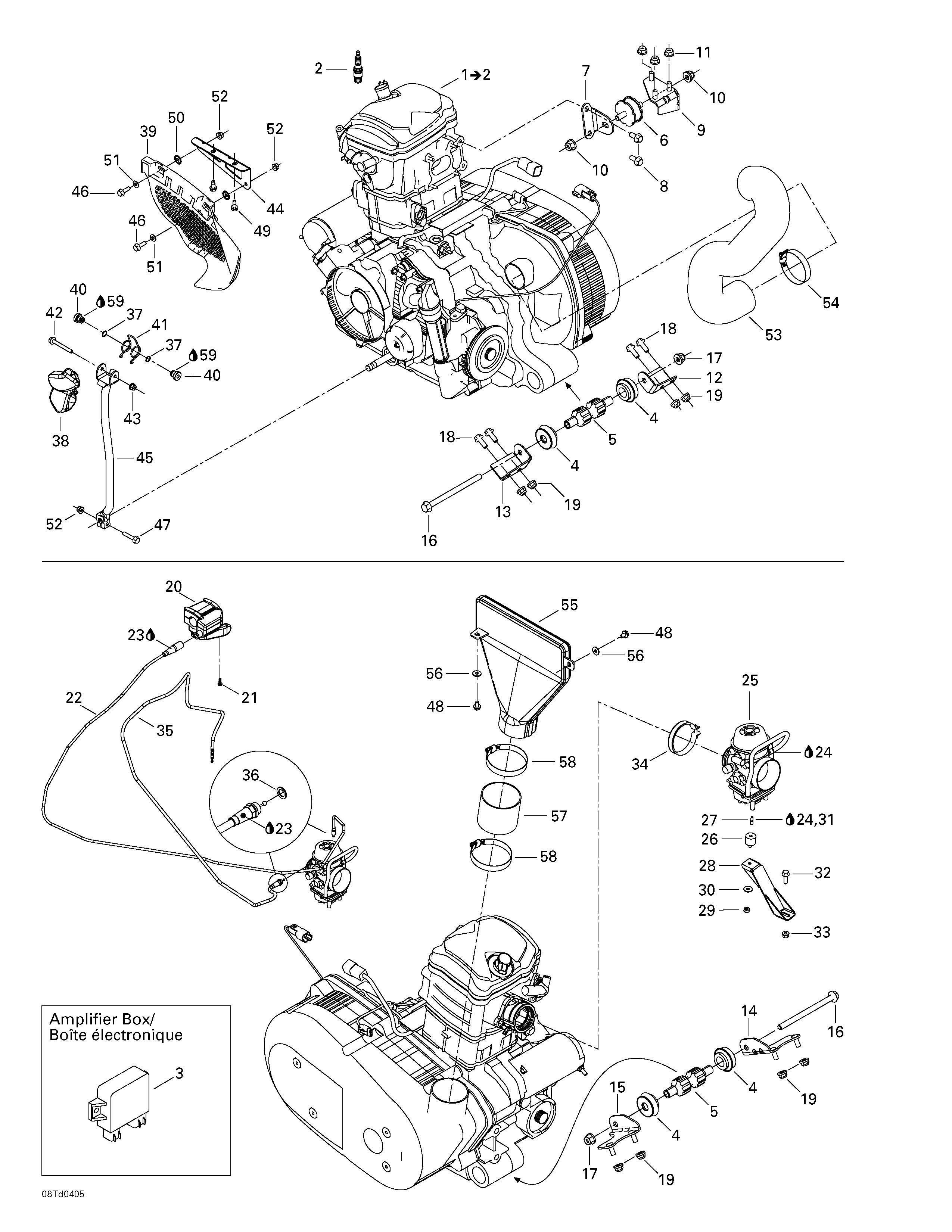

01- Engine And Engine Support для BRP Quest STD - 2004

  • №
    Артикул
    Название
  • 1
    707000345 Rotax 4 strokes engine ''514''. Includes 1 - 2.
    Rotax 4 strokes engine ''514''. Includes 1 - 2.
  • 707000344 Rotax 4 strokes engine ''610''
    Rotax 4 strokes engine ''610''
  • 2
    707000246 Spark plug
    Spark plug
  • 3
    420265820 Amplifier box
    Amplifier box
  • 4
    707000094 Anti vibration mount
    Anti vibration mount
  • 5
    707000019 Bushing support
    Bushing support
  • 6
    707000174 Mount rubber
    Mount rubber
  • 7
    707000159 Engine support
    Engine support
  • 8
    207581646 Hex flanged screw M8 x 16 (scotch grip)
    Hex flanged screw M8 x 16 (scotch grip)
  • 9
    707000161 Engine bracket
    Engine bracket
  • 10
    233201414 Hex elastic flanged nut M10
    Hex elastic flanged nut M10
  • 11
    233281414 Hex elastic flanged nut M8
    Hex elastic flanged nut M8
  • 12
    707000132 L.h. engine bracket
    L.h. engine bracket
  • 13
    707000101 R.h. engine bracket
    R.h. engine bracket
  • 14
    707000207 R.h. engine bracket
    R.h. engine bracket
  • 15
    707000210 L.h. engine bracket
    L.h. engine bracket
  • 16
    230604044 Hex elastic flanged screw M10 x 140
    Hex elastic flanged screw M10 x 140
  • 17
    233201414 Hex elastic flanged nut M10
    Hex elastic flanged nut M10
  • 18
    207682044 Hex elastic flanged screw M8 x 20
    Hex elastic flanged screw M8 x 20
  • 19
    233281414 Hex elastic flanged nut M8
    Hex elastic flanged nut M8
  • 20
    707000351 Throttle handle
    Throttle handle
  • 21
    205052588 Socket screw M5 x 25 (black)
    Socket screw M5 x 25 (black)
  • 22
    707000313 Throttle cable
    Throttle cable
  • 23
    293600041 Cable lubricant, 400 g
    Cable lubricant, 400 g
  • 24
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 25
    707200181 Mukini carburetor BSR42-7 (M-500)
    Mukini carburetor BSR42-7 (M-500)
  • 707200186 Mukini carburetor BSR42-8 (M-650)
    Mukini carburetor BSR42-8 (M-650)
  • 26
    707000248 Anti-vibration mount
    Anti-vibration mount
  • 27
    707000250 Threaded insert
    Threaded insert
  • 28
    707000252 Support
    Support
  • 29
    212000006 Hex elastic nut 10-32
    Hex elastic nut 10-32
  • 30
    391301600 Washer
    Washer
  • 31
    413708300 Glue tube, loctite 454, 20 g
    Glue tube, loctite 454, 20 g
  • 32
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 33
    233261414 Hex elastic flanged nut M6
    Hex elastic flanged nut M6
  • 34
    293650157 Clamp
    Clamp
  • 35
    707000314 Choke cable
    Choke cable
  • 36
    293300075 O-ring
    O-ring
  • 37
    293300081 O-ring
    O-ring
  • 38
    705500282 Handle shifter
    Handle shifter
  • 39
    707000139 Transmission guide
    Transmission guide
  • 40
    707000205 Pivot sleeve
    Pivot sleeve
  • 41
    705500283 Lever spring
    Lever spring
  • 42
    207665044 Hex flanged screw M6 x 50
    Hex flanged screw M6 x 50
  • 43
    233261414 Hex elastic flanged nut M6
    Hex elastic flanged nut M6
  • 44
    707000297 Guide support
    Guide support
  • 45
    707000169 Lower lever
    Lower lever
  • 46
    207662544 Hex flanged screw M6 x 25
    Hex flanged screw M6 x 25
  • 47
    207663044 Hex flanged screw M6 x 30
    Hex flanged screw M6 x 30
  • 48
    210261080 Hex flanged screw M6 x 10
    Hex flanged screw M6 x 10
  • 49
    210261680 Hex flanged screw M6 x 16
    Hex flanged screw M6 x 16
  • 50
    250200000 Serrated lock washer M6
    Serrated lock washer M6
  • 51
    224060201 Flat washer
    Flat washer
  • 52
    233261414 Hex elastic flanged nut M6
    Hex elastic flanged nut M6
  • 53
    707000152 Air intake
    Air intake
  • 54
    293650023 Tridon clamp
    Tridon clamp
  • 55
    707000153 Exhaust
    Exhaust
  • 56
    224061201 Flat washer
    Flat washer
  • 57
    707000154 Flexible adaptor
    Flexible adaptor
  • 58
    293650064 Tridon clamp
    Tridon clamp
  • 59
    293550010 Synthetic Grease, 400 g
    Synthetic Grease, 400 g
