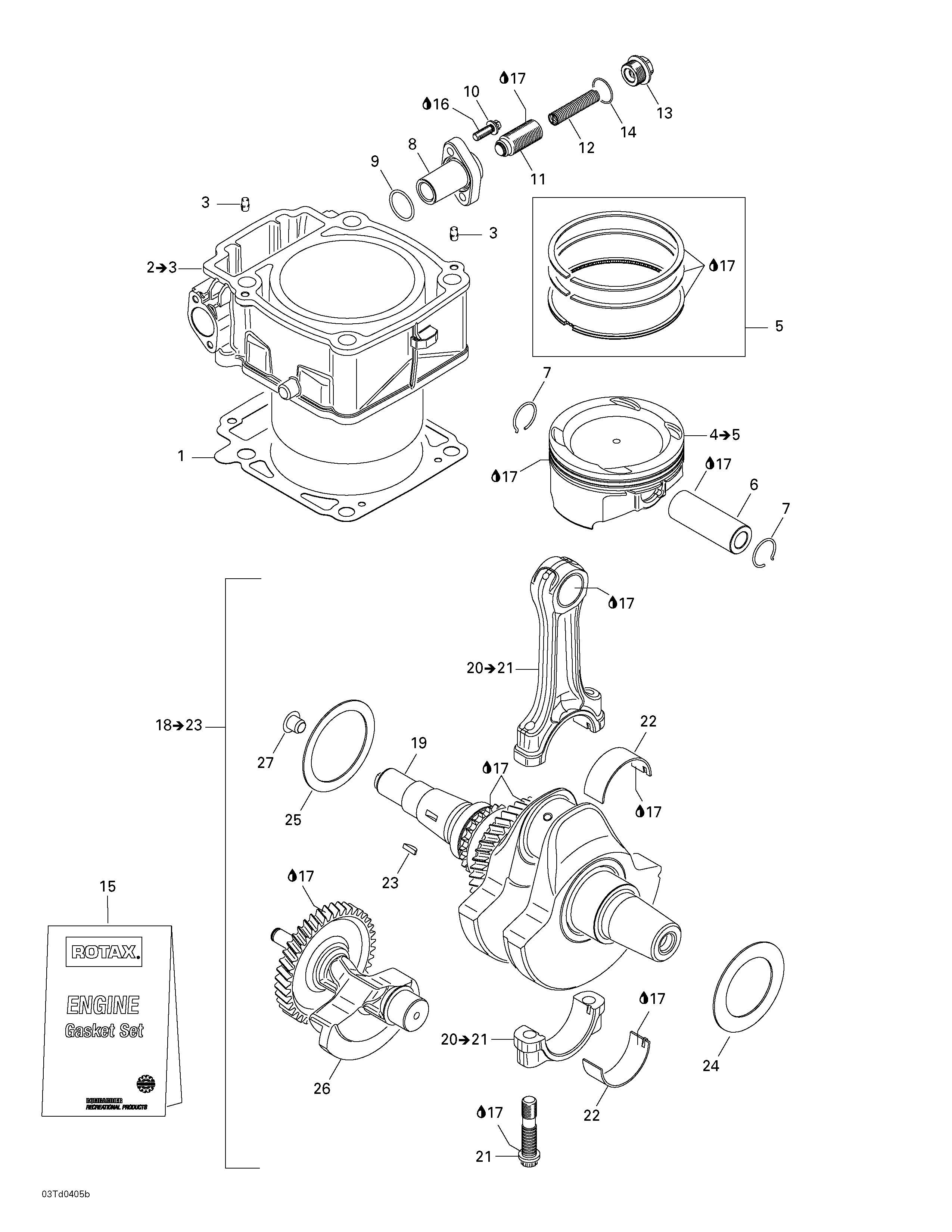

01- Crankshaft And Cylinder для BRP Quest STD - 2004
-
№АртикулНазвание
-
1420630080 GasketGasket
-
2420923947 Cylindre Ass'y. Includes 2 - 3.Cylindre Ass'y. Includes 2 - 3.
-
3420929650 Drive Pin 5 x 10Drive Pin 5 x 10
-
4420888867 Piston (M-650) Ass'y. Includes 4 - 5.Piston (M-650) Ass'y. Includes 4 - 5.
-
420296565 Piston (M-500) Ass'yPiston (M-500) Ass'y
-
420888868 Piston (Oversize) Ass'yPiston (Oversize) Ass'y
-
5420888864 Piston Ring SetPiston Ring Set
-
420888865 Piston Ring Set (Oversize)Piston Ring Set (Oversize)
-
6420216250 Piston PinPiston Pin
-
7420845580 CirclipCirclip
-
8420236510 Tensioner HousingTensioner Housing
-
9420430370 O-RingO-Ring
-
10420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
11420236520 Tensioner PlungerTensioner Plunger
-
12420238120 SpringSpring
-
13420641150 Screw PlugScrew Plug
-
14290250890 O-RingO-Ring
-
15420684120 Engine Gasket SetEngine Gasket Set
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17293600039 Engine Oil 4 strokes. 5W40, 12 x 1 literEngine Oil 4 strokes. 5W40, 12 x 1 liter
-
19420296866 Crankshaft Ass'y (M-500)Crankshaft Ass'y (M-500)
-
19420296644 Crankshaft Ass'y (M-650)Crankshaft Ass'y (M-650)
-
20420917545 Connecting Rod (M-500). Includes 20 - 21.Connecting Rod (M-500). Includes 20 - 21.
-
20420917525 Connecting Rod (M-650). Includes 20 - 21.Connecting Rod (M-650). Includes 20 - 21.
-
21420640990 Connecting ScrewConnecting Screw
-
22420933520 Half-BearingHalf-Bearing
-
23420246570 Woodruff KeyWoodruff Key
-
24420627362 ShimShim
-
25420627502 ShimShim
-
26420220785 Balancing ShaftBalancing Shaft
-
27420660300 PlugPlug
