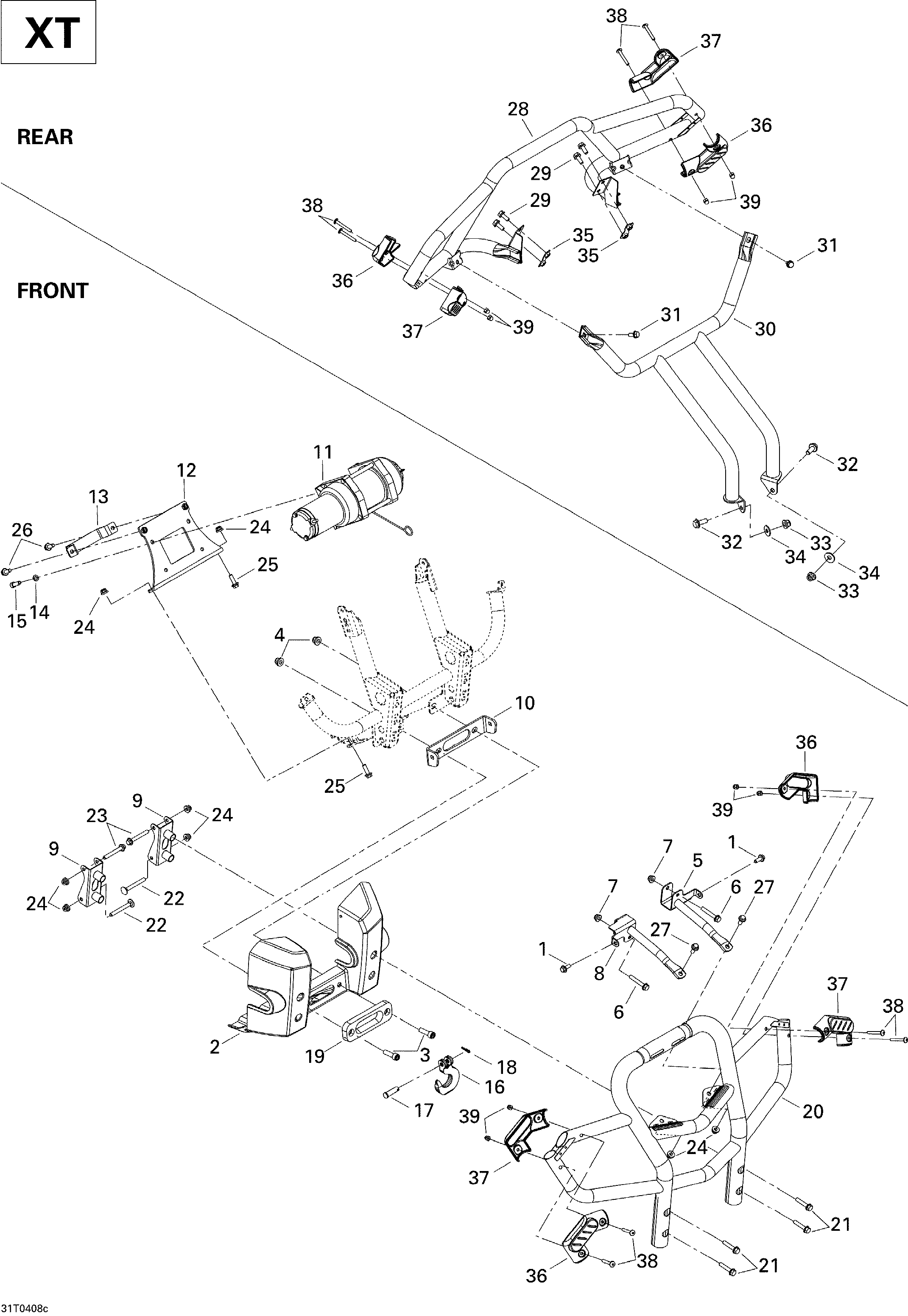

09- Body XT для BRP Outlander MAX 400 - 2004
-
№АртикулНазвание
-
1207682544 Hex Flanged Screw M8 X 25. Outlander Max XTHex Flanged Screw M8 X 25. Outlander Max XT
-
2705001076 Front Protection Plate. Outlander Max XTFront Protection Plate. Outlander Max XT
-
3205003544 Socket Screw M10 X 35. Outlander Max XTSocket Screw M10 X 35. Outlander Max XT
-
4233201414 Hex Flanged Elastic Nut M10. Outlander Max XTHex Flanged Elastic Nut M10. Outlander Max XT
-
5705001186 LH Anchoring. Outlander Max XTLH Anchoring. Outlander Max XT
-
6207685044 Hex Flanged Screw M8 X 50. Outlander Max XTHex Flanged Screw M8 X 50. Outlander Max XT
-
7233281414 Hex Flanged Elastic Nut M8. Outlander Max XTHex Flanged Elastic Nut M8. Outlander Max XT
-
8705001190 RH Anchoring. Outlander Max XTRH Anchoring. Outlander Max XT
-
9705001058 Bumper Anchoring. Outlander Max XTBumper Anchoring. Outlander Max XT
-
10705001073 Winch Bracket. Outlander Max XTWinch Bracket. Outlander Max XT
-
11705000839 Winch. Outlander Max XTWinch. Outlander Max XT
-
12705000415 Mounting Plate. Outlander Max XTMounting Plate. Outlander Max XT
-
13705000416 Winch Bracket. Outlander Max XTWinch Bracket. Outlander Max XT
-
14234181401 Lock Washer 8 mm. Outlander Max XTLock Washer 8 mm. Outlander Max XT
-
15250000041 Socket Screw 5/16-18 X 1''. Outlander Max XTSocket Screw 5/16-18 X 1''. Outlander Max XT
-
16705000618 Hook. Outlander Max XTHook. Outlander Max XT
-
17250400021 Clevis Pin. Outlander Max XTClevis Pin. Outlander Max XT
-
18250400022 Cotter Pin. Outlander Max XTCotter Pin. Outlander Max XT
-
19705000194 Cable Guide. Outlander Max XTCable Guide. Outlander Max XT
-
20705001077 Front Bumper. Outlander Max XTFront Bumper. Outlander Max XT
-
21207584044 Hex Flanged Screw M8 X 40 (Scotch Grip). Outlander Max XTHex Flanged Screw M8 X 40 (Scotch Grip). Outlander Max XT
-
22207787044 Carriage Bolt M8 X 70. Outlander Max XTCarriage Bolt M8 X 70. Outlander Max XT
-
23207686044 Hex Flanged Screw M8 X 60. Outlander Max XTHex Flanged Screw M8 X 60. Outlander Max XT
-
24233281414 Hex Flanged Elastic Nut M8. Outlander Max XTHex Flanged Elastic Nut M8. Outlander Max XT
-
25207682544 Hex Flanged Screw M8 X 25. Outlander Max XTHex Flanged Screw M8 X 25. Outlander Max XT
-
26207582044 Hex Flanged Screw M8 X 20 (Scotch Grip). Outlander Max XTHex Flanged Screw M8 X 20 (Scotch Grip). Outlander Max XT
-
27207682044 Hex Flanged Screw M8 X 20. Outlander Max XTHex Flanged Screw M8 X 20. Outlander Max XT
-
28705001079 Rear Bumper. Outlander Max XTRear Bumper. Outlander Max XT
-
29207582044 Hex Flanged Screw M8 X 20 (Scotch Grip). Outlander Max XTHex Flanged Screw M8 X 20 (Scotch Grip). Outlander Max XT
-
30705001081 Rear Lower Bumper. Outlander Max XTRear Lower Bumper. Outlander Max XT
-
31207581646 Hex Flanged Screw M8 X 16 (Scotch Grip). Outlander Max XTHex Flanged Screw M8 X 16 (Scotch Grip). Outlander Max XT
-
32207603044 Hex Flanged Screw M10 X 30. Outlander Max XTHex Flanged Screw M10 X 30. Outlander Max XT
-
33233201414 Hex Flanged Elastic Nut M10. Outlander Max XTHex Flanged Elastic Nut M10. Outlander Max XT
-
34503032900 Washer. Outlander Max XTWasher. Outlander Max XT
-
35705001075 Attachment Plate. Outlander Max XTAttachment Plate. Outlander Max XT
-
36705001042 Male Cap. Outlander Max XTMale Cap. Outlander Max XT
-
37705001043 Female Cap. Outlander Max XTFemale Cap. Outlander Max XT
-
38250000167 Pan Head Phillips Screw M6 X 45. Outlander Max XTPan Head Phillips Screw M6 X 45. Outlander Max XT
-
39232361493 Cap Nut M6. Outlander Max XTCap Nut M6. Outlander Max XT
