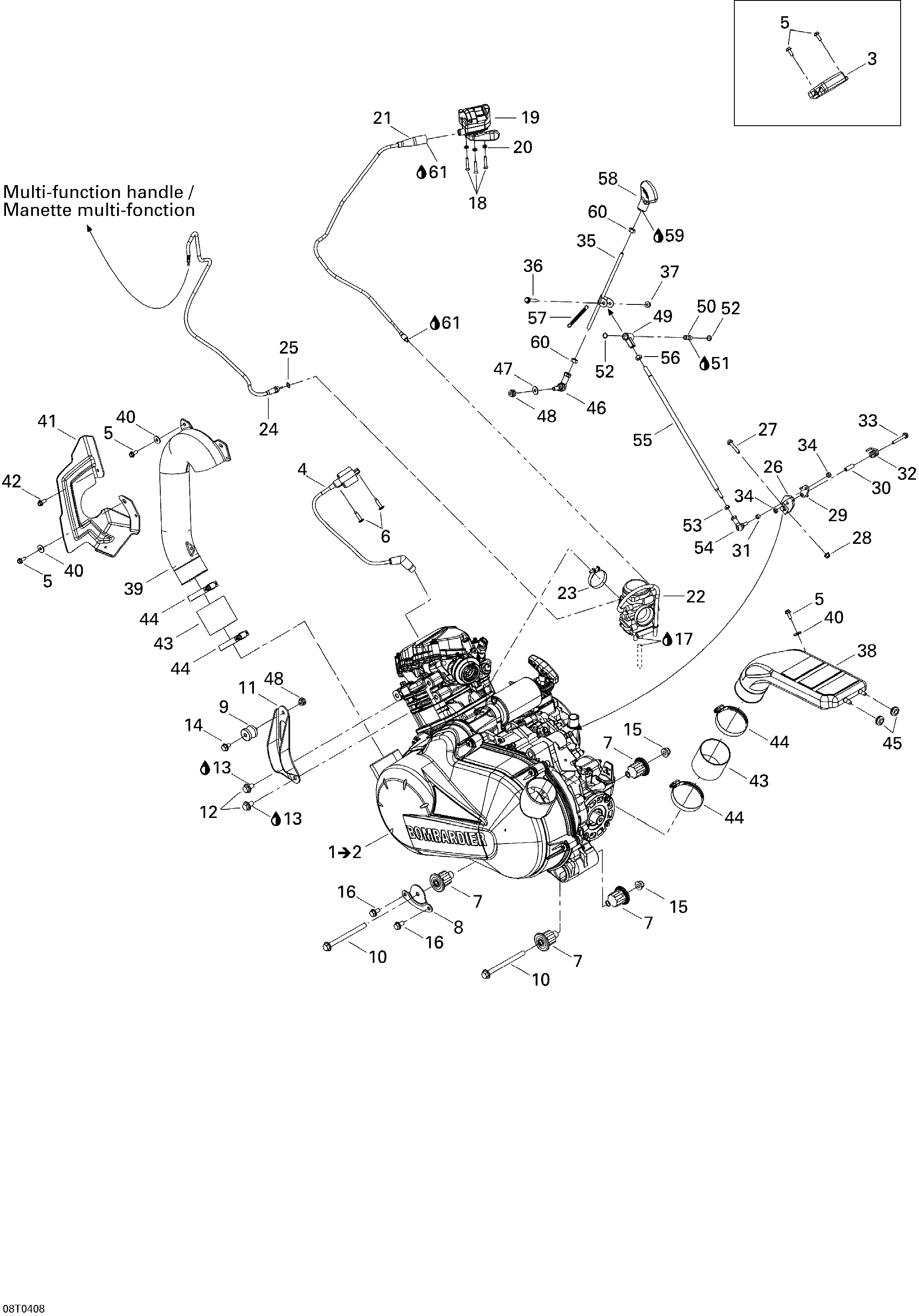

01- Engine для BRP Outlander MAX 400 - 2004
-
№АртикулНазвание
-
1707000235 Rotax 4 Strokes Engine '' 400''. M-400Rotax 4 Strokes Engine '' 400''. M-400
-
2707000246 Spark PlugSpark Plug
-
3420664285 Amplifier Box. M-400Amplifier Box. M-400
-
4420265358 Ignition CoilIgnition Coil
-
5210261680 Hex Flanged Forming Screw M6 X 16. OUT-MAXHex Flanged Forming Screw M6 X 16. OUT-MAX
-
6250000081 Torx Button Head Screw M6 X 25Torx Button Head Screw M6 X 25
-
7707000218 Anti-Vibration MountAnti-Vibration Mount
-
8707000220 LH Front Engine BracketLH Front Engine Bracket
-
9274000839 Rubber IsolatorRubber Isolator
-
10230602546 Hex Flanged Screw M10 X 125Hex Flanged Screw M10 X 125
-
11707000224 Upper Engine BracketUpper Engine Bracket
-
12207602544 Hex Flanged Screw M10 X 25Hex Flanged Screw M10 X 25
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14207581244 Hex Flanged Screw M8 X 12 (Scotch Grip)Hex Flanged Screw M8 X 12 (Scotch Grip)
-
15233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
16207581244 Hex Flanged Screw M8 X 12 (Scotch Grip)Hex Flanged Screw M8 X 12 (Scotch Grip)
-
17293800071 Loctite 454, 10 GLoctite 454, 10 G
-
18205052588 Socket Screw M5 X 25Socket Screw M5 X 25
-
19707000369 Throttle Handle. 4X4Throttle Handle. 4X4
-
20234051410 Flat Washer M5Flat Washer M5
-
21707000226 Throttle CableThrottle Cable
-
22707200190 Carburetor (Mikuni Bsr33-49). M-400&C/U/INTCarburetor (Mikuni Bsr33-49). M-400&C/U/INT
-
23293650164 Gemi ClampGemi Clamp
-
24707000228 Choke CableChoke Cable
-
25293300075 O-RingO-Ring
-
26707000295 Pre-Selective LeverPre-Selective Lever
-
27207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
28233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
29707000309 Pivot PlatePivot Plate
-
30293900050 BushingBushing
-
31293900029 BushingBushing
-
32707000310 SpringSpring
-
33207664044 Hex Flanged Screw M6 X 40Hex Flanged Screw M6 X 40
-
34232561414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
35707000258 Lever ArmLever Arm
-
36207664044 Hex Flanged Screw M6 X 40Hex Flanged Screw M6 X 40
-
37233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
38707000361 Air OutletAir Outlet
-
39707000261 Air IntakeAir Intake
-
40391302000 Flat Washer. OUT-MAXFlat Washer. OUT-MAX
-
41707000304 C.V.T. Water DeflectorC.V.T. Water Deflector
-
42414745900 Tuflock Phillips Plastic Screw M60-0630-05Tuflock Phillips Plastic Screw M60-0630-05
-
43707000154 Flexible AdaptorFlexible Adaptor
-
44293650064 Tridon ClampTridon Clamp
-
45293720053 GrommetGrommet
-
46707000278 RH Ball JointRH Ball Joint
-
47234081410 Flat Washer 8 mmFlat Washer 8 mm
-
48232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
49707000279 PivotPivot
-
50293900047 BushingBushing
-
51293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
52414583300 O-RingO-Ring
-
53232066414 LH Hex Nut M6LH Hex Nut M6
-
54707000143 LH Ball JointLH Ball Joint
-
55707000280 Threaded RodThreaded Rod
-
56232081414 Hex Nut M8Hex Nut M8
-
57707000281 SpringSpring
-
58707000284 Lever HandleLever Handle
-
59293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
60232081414 Hex Nut M8Hex Nut M8
-
61293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
