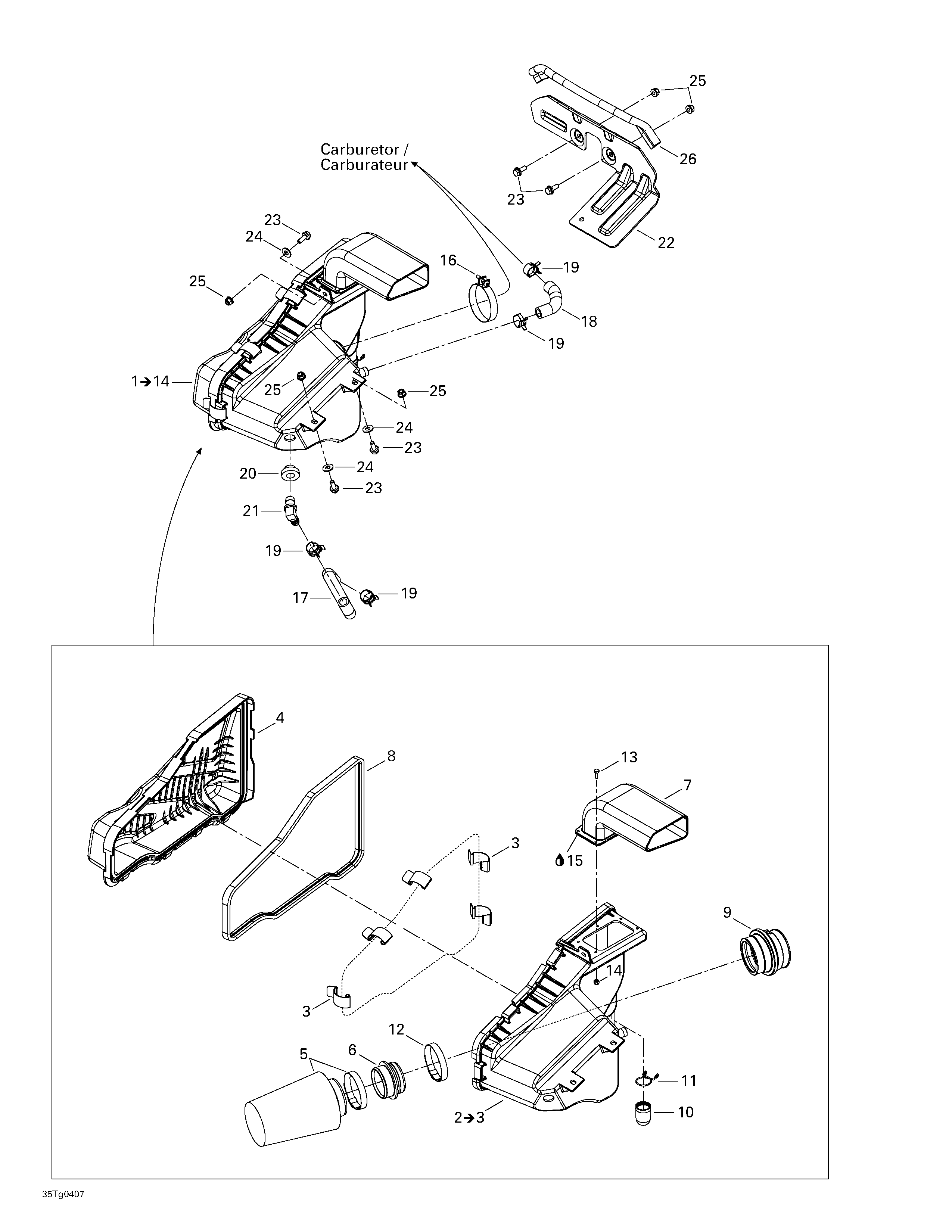

02- Air Intake Silencer для BRP Outlander MAX 400 - 2004
-
№АртикулНазвание
-
2707800115 Silencer BaseSilencer Base
-
3707800079 Bracket CoverBracket Cover
-
4707800119 Muffler CoverMuffler Cover
-
5707800120 Air FilterAir Filter
-
6707800134 Rigid AdaptorRigid Adaptor
-
7707800121 Front Intake AdaptorFront Intake Adaptor
-
8293250133 Oil SealOil Seal
-
9707800150 Intake AdaptorIntake Adaptor
-
10707800080 Drain TubeDrain Tube
-
11707800081 Retainer ClipRetainer Clip
-
12293650036 Tridon ClampTridon Clamp
-
13207141244 Hex Flanged Screw M4 X 12Hex Flanged Screw M4 X 12
-
14232541414 Hex Flanged Elastic Nut M4Hex Flanged Elastic Nut M4
-
15293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
16293650155 Gemi ClampGemi Clamp
-
17707800127 Vent HoseVent Hose
-
18707800128 Carburetor Vent HoseCarburetor Vent Hose
-
19293650110 Norma ClampNorma Clamp
-
20570273900 GrommetGrommet
-
21414523600 Elbow FittingElbow Fitting
-
22707800145 DeflectorDeflector
-
23207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
24391302000 Flat WasherFlat Washer
-
25233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
26293250047 Neoprene SealNeoprene Seal
