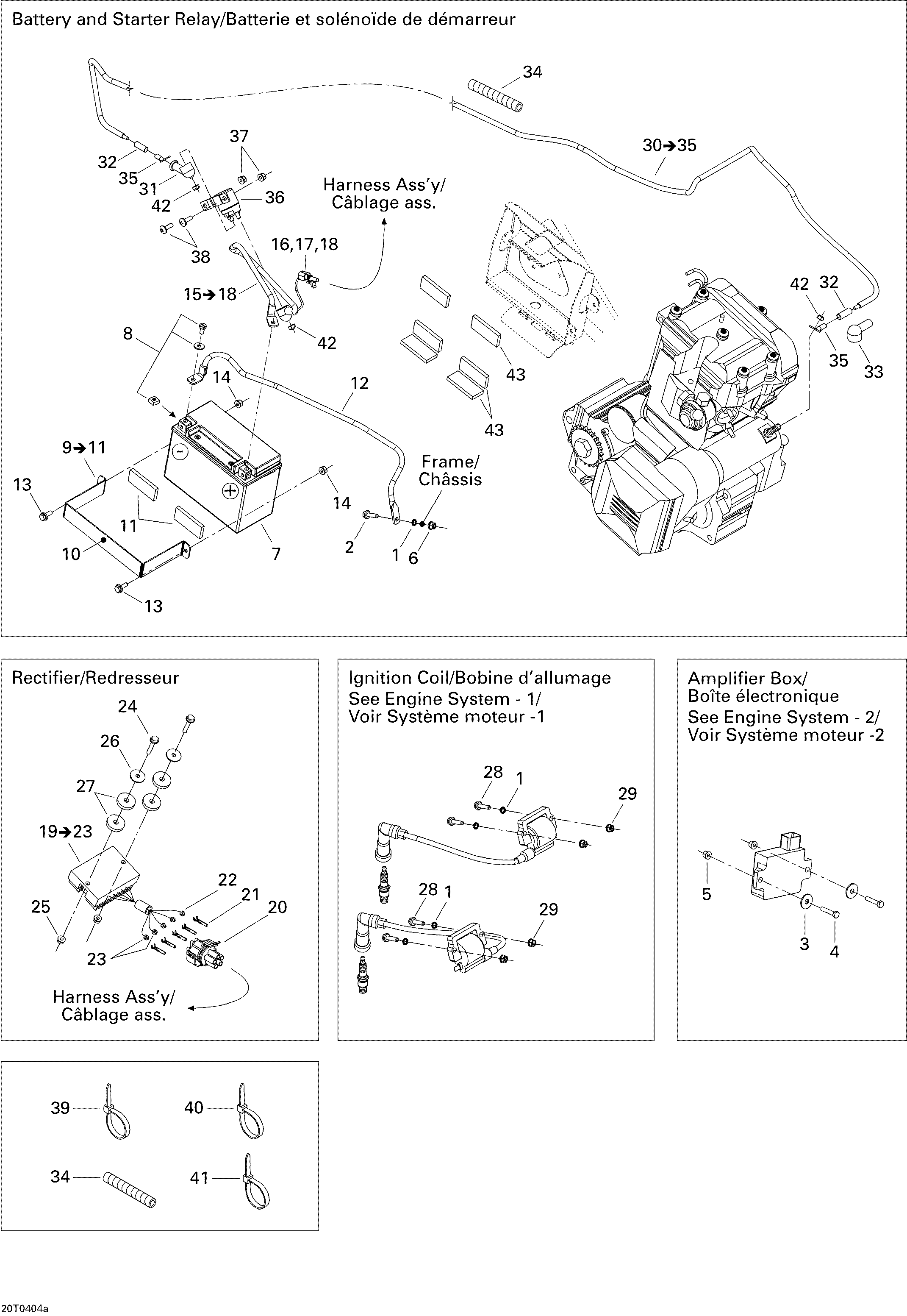

10- Electrical System 1 для BRP DS 650/DS 650 Baja/X - 2004

  • №
    Артикул
    Название
  • 1
    234461608 Serrated Lock Washer 6 mm
    Serrated Lock Washer 6 mm
  • 2
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 3
    224061201 Flat Washer
    Flat Washer
  • 4
    207152544 Hex Screw M5 X 25
    Hex Screw M5 X 25
  • 5
    233251414 Hex Elastic Flanged Nut M5
    Hex Elastic Flanged Nut M5
  • 6
    233261414 Hex Elastic Flanged Nut M6
    Hex Elastic Flanged Nut M6
  • 7
    710000283 Battery
    Battery
  • 8
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 9
    710000104 Rubber Strap Ass'y. INCLUDES ITEMS 9 TO 11
    Rubber Strap Ass'y. INCLUDES ITEMS 9 TO 11
  • 10
    710000087 Strap
    Strap
  • 11
    293830083 Protector
    Protector
  • 13
    207661644 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 14
    233261414 Hex Elastic Flanged Nut M6
    Hex Elastic Flanged Nut M6
  • 16
    278000219 Male Terminal Housing (1 Circuit)
    Male Terminal Housing (1 Circuit)
  • 17
    409007300 Female Terminal
    Female Terminal
  • 18
    710000049 Cap
    Cap
  • 19
    710000257 Rectifier Ass'Y. INCLUDES ITEMS 19 TO 23
    Rectifier Ass'Y. INCLUDES ITEMS 19 TO 23
  • 20
    710000106 Female Terminal Housing (5 Circuits)
    Female Terminal Housing (5 Circuits)
  • 21
    409007300 Female Terminal
    Female Terminal
  • 22
    278000218 Wire Seal
    Wire Seal
  • 23
    710000048 Wire Seal
    Wire Seal
  • 24
    207663544 Hex Flanged Screw M6 X 35
    Hex Flanged Screw M6 X 35
  • 25
    233261414 Hex Elastic Flanged Nut M6
    Hex Elastic Flanged Nut M6
  • 26
    224060251 Washer
    Washer
  • 27
    250200002 Rubber Washer
    Rubber Washer
  • 28
    207662544 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 29
    233261414 Hex Elastic Flanged Nut M6
    Hex Elastic Flanged Nut M6
  • 30
    710000069 Positive Cable. INCLUDES ITEMS 30 TO 35
    Positive Cable. INCLUDES ITEMS 30 TO 35
  • 31
    710000393 Protector Cap
    Protector Cap
  • 32
    710000483 Tubing Shrink
    Tubing Shrink
  • 33
    710000494 Protector Cap
    Protector Cap
  • 34
    710000497 Protector Tube 9 mm
    Protector Tube 9 mm
  • 35
    710000538 Open Baril
    Open Baril
  • 36
    515176011 Starter Relay
    Starter Relay
  • 37
    233261414 Hex Elastic Flanged Nut M6
    Hex Elastic Flanged Nut M6
  • 38
    211000123 Truss Phillips Screw M6 X 20
    Truss Phillips Screw M6 X 20
  • 39
    414115200 Tie-Rap
    Tie-Rap
  • 40
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 41
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 42
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 43
    293830083 Protector
    Protector
