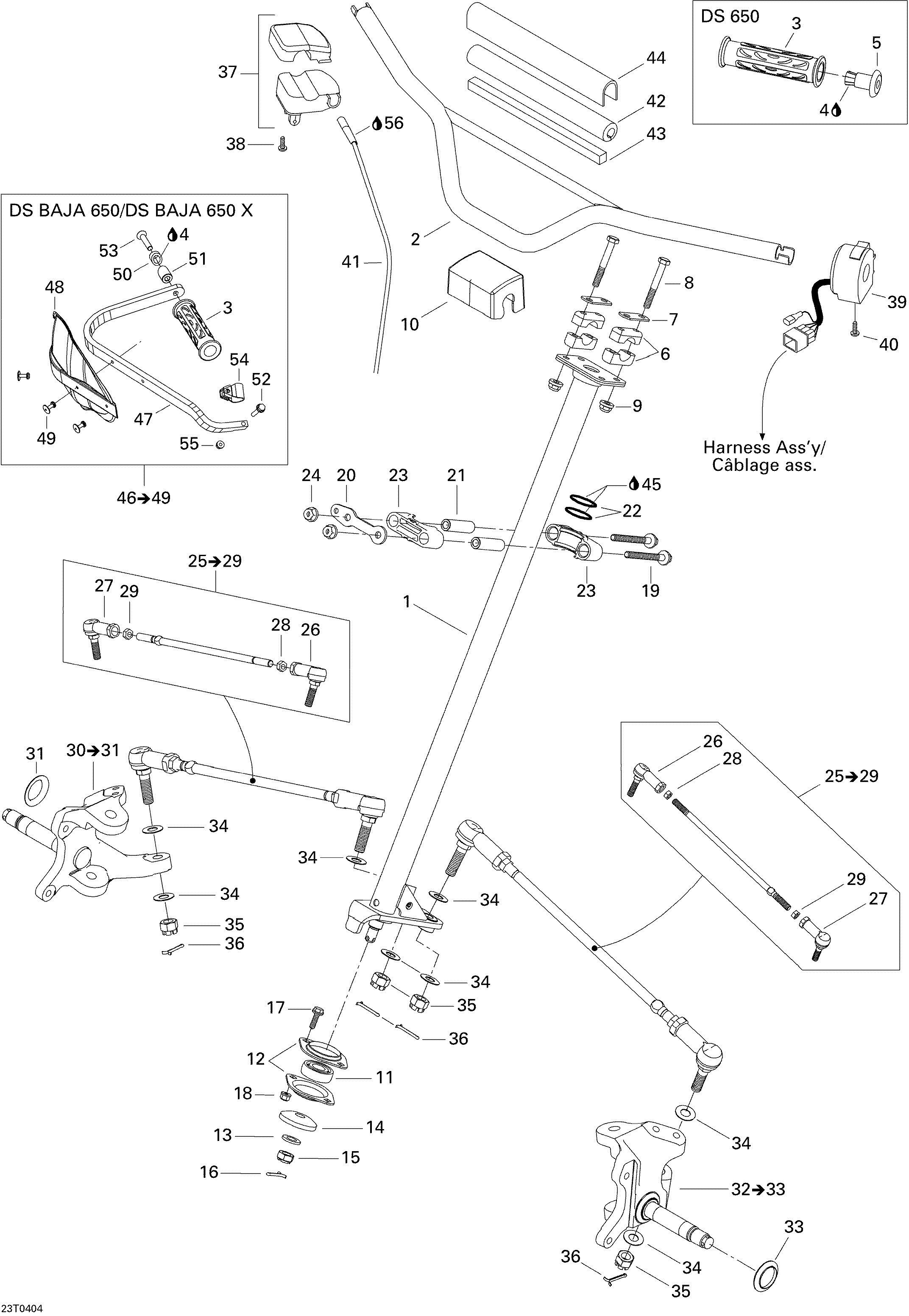

07- Steering System для BRP DS 650/DS 650 Baja/X - 2004

  • №
    Артикул
    Название
  • 1
    709400222 Main Tube
    Main Tube
  • 2
    709400218 Handle Bar (Black)
    Handle Bar (Black)
  • 3
    709400157 Grip (Black)
    Grip (Black)
  • 4
    293800100 Loctite 406, 7 Oz
    Loctite 406, 7 Oz
  • 5
    709400189 End Piece. DS 650
    End Piece. DS 650
  • 6
    506151622 Steering Support
    Steering Support
  • 7
    506151196 Reinforcement
    Reinforcement
  • 8
    207086044 Hex Screw M8 X 60
    Hex Screw M8 X 60
  • 9
    233281414 Hex Elastic Flanged Nut M8
    Hex Elastic Flanged Nut M8
  • 10
    705000371 Cover
    Cover
  • 11
    709400224 Thrust Bearing
    Thrust Bearing
  • 12
    709400152 Thrust Washer
    Thrust Washer
  • 13
    234021410 Flat Washer 12 mm
    Flat Washer 12 mm
  • 14
    250200017 Washer
    Washer
  • 15
    232220413 Hex Castellated Nut M12
    Hex Castellated Nut M12
  • 16
    211400017 Cotter Pin
    Cotter Pin
  • 17
    207562044 Hex Flanged Screw M6 X 20 (Scotch Grip)
    Hex Flanged Screw M6 X 20 (Scotch Grip)
  • 18
    233261414 Hex Elastic Flanged Nut M6
    Hex Elastic Flanged Nut M6
  • 19
    207687544 Hex Flanged Screw M8 X 75
    Hex Flanged Screw M8 X 75
  • 20
    709400053 Stopper Plate
    Stopper Plate
  • 21
    709400072 Bushing
    Bushing
  • 22
    293300068 O-Ring
    O-Ring
  • 23
    709400052 Half Bushing
    Half Bushing
  • 24
    233281414 Hex Elastic Flanged Nut M8
    Hex Elastic Flanged Nut M8
  • 25
    709400240 Tie Rod Ass'y. INCLUDES ITEMS 25 TO 29
    Tie Rod Ass'y. INCLUDES ITEMS 25 TO 29
  • 26
    709400241 RH Ball Joint
    RH Ball Joint
  • 27
    709400242 LH Ball Joint
    LH Ball Joint
  • 30
    709400208 RH Knuckle. INCLUDES ITEMS 30 TO 31
    RH Knuckle. INCLUDES ITEMS 30 TO 31
  • 31
    705400056 Wear Ring
    Wear Ring
  • 32
    709400210 LH Knuckle
    LH Knuckle
  • 33
    705400056 Wear Ring
    Wear Ring
  • 34
    706200281 Hard Washer
    Hard Washer
  • 35
    250100045 Nut M12
    Nut M12
  • 36
    211400013 Cotter Pin
    Cotter Pin
  • 37
    709400016 Throttle Handle
    Throttle Handle
  • 38
    205353060 Screw M5 X 30
    Screw M5 X 30
  • 39
    710000072 Multi Function Switch
    Multi Function Switch
  • 40
    205453046 Screw M5 X 30
    Screw M5 X 30
  • 41
    709400048 Throttle Cable
    Throttle Cable
  • 42
    709400087 Steering Cover Foam
    Steering Cover Foam
  • 43
    709400094 Foam Insert
    Foam Insert
  • 44
    709400158 Steering Cover. DS BAJA 650
    Steering Cover. DS BAJA 650
  • 709400198 Steering Cover. DS 650
    Steering Cover. DS 650
  • 709400243 Steering Cover. DS BAJA 650 X
    Steering Cover. DS BAJA 650 X
  • 45
    293550010 Synthetic Grease, 400 G
    Synthetic Grease, 400 G
  • 46
    709400177 RH Protector Ass'Y. DS BAJA 650 / DS BAJA 650 X / INCLUDES ITEMS 46 TO 49
    RH Protector Ass'Y. DS BAJA 650 / DS BAJA 650 X / INCLUDES ITEMS 46 TO 49
  • 709400179 LH Protector Ass'Y. DS BAJA 650 / DS BAJA 650 X / INCLUDES ITEMS 46 TO 49
    LH Protector Ass'Y. DS BAJA 650 / DS BAJA 650 X / INCLUDES ITEMS 46 TO 49
  • 47
    709400159 RH Handle Protector. DS BAJA 650 / DS BAJA 650 X
    RH Handle Protector. DS BAJA 650 / DS BAJA 650 X
  • 709400160 LH Handle Protector. DS BAJA 650 / DS BAJA 650 X
    LH Handle Protector. DS BAJA 650 / DS BAJA 650 X
  • 48
    705000461 Protector Plate. DS BAJA 650 / DS BAJA 650 X
    Protector Plate. DS BAJA 650 / DS BAJA 650 X
  • 49
    293150103 Pop Rivet. DS BAJA 650 / DS BAJA 650 X
    Pop Rivet. DS BAJA 650 / DS BAJA 650 X
  • 50
    709400161 Bracket. DS BAJA 650 / DS BAJA 650 X
    Bracket. DS BAJA 650 / DS BAJA 650 X
  • 51
    709400162 Bracket. DS BAJA 650 / DS BAJA 650 X
    Bracket. DS BAJA 650 / DS BAJA 650 X
  • 52
    709400174 Handle Bracket. DS BAJA 650 / DS BAJA 650 X
    Handle Bracket. DS BAJA 650 / DS BAJA 650 X
  • 53
    205384044 Socket Head Screw. DS BAJA 650 / DS BAJA 650 X
    Socket Head Screw. DS BAJA 650 / DS BAJA 650 X
  • 54
    207663044 Hex Flanged Screw M6 X 30. DS BAJA 650 / DS BAJA 650 X
    Hex Flanged Screw M6 X 30. DS BAJA 650 / DS BAJA 650 X
  • 55
    233261414 Hex Elastic Flanged Nut M6. DS BAJA 650 / DS BAJA 650 X
    Hex Elastic Flanged Nut M6. DS BAJA 650 / DS BAJA 650 X
  • 56
    293600041 Cable Lubricant, 400 G
    Cable Lubricant, 400 G
