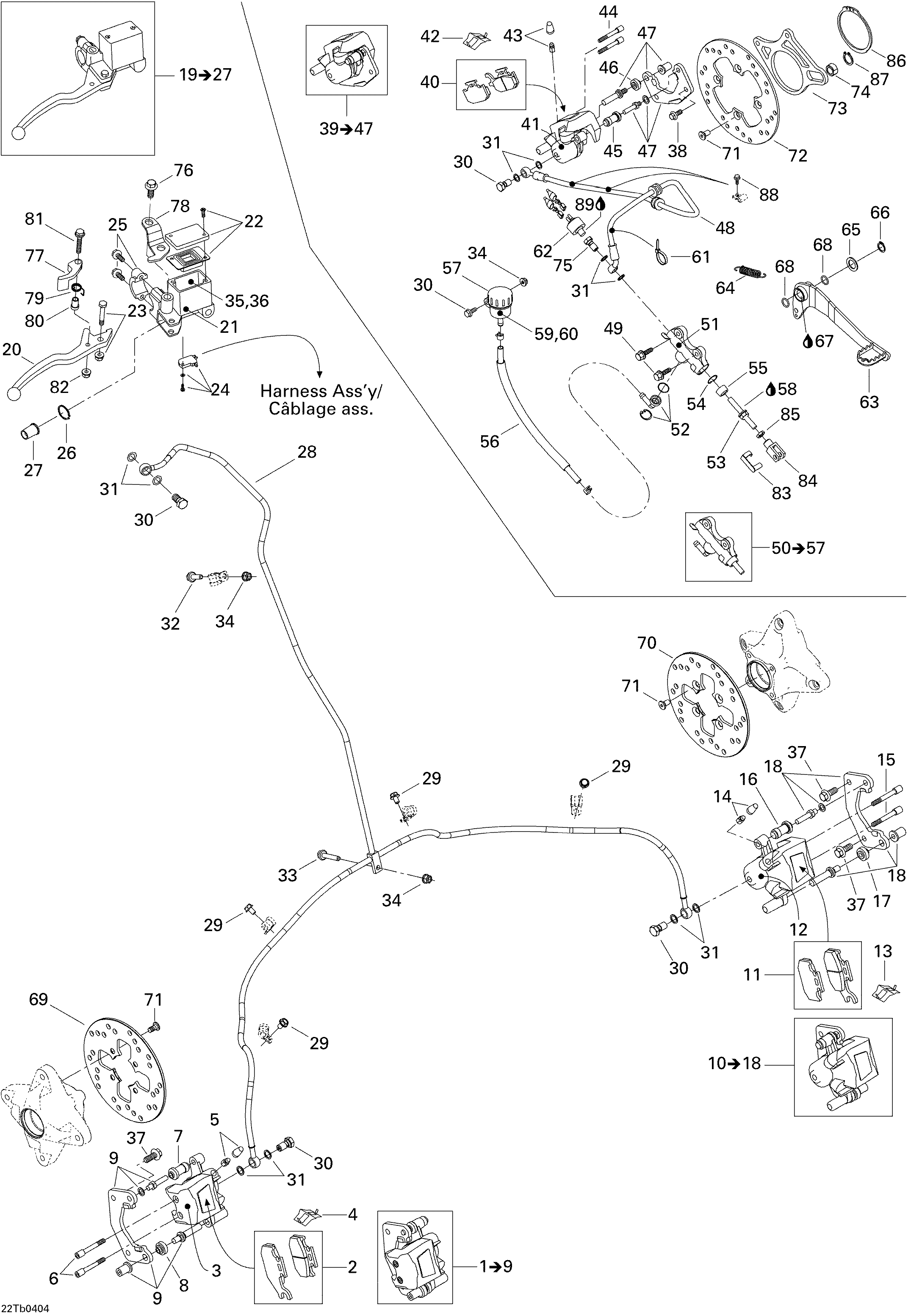

06- Hydraulic Brake для BRP DS 650/DS 650 Baja/X - 2004
-
№АртикулНазвание
-
1705600043 RH Caliper. INCLUDES ITEMS 1 TO 9RH Caliper. INCLUDES ITEMS 1 TO 9
-
2705600004 Brake Pad KitBrake Pad Kit
-
3705600078 Piston SetPiston Set
-
4705600079 SpringSpring
-
5705600080 Bleeder ScrewBleeder Screw
-
6705600081 Pin SetPin Set
-
7705600082 Compression BootCompression Boot
-
8705600083 Compression BootCompression Boot
-
9705600062 RH Brake SupportRH Brake Support
-
10705600044 LH Caliper. INCLUDES ITEMS 10 TO 18LH Caliper. INCLUDES ITEMS 10 TO 18
-
11705600014 Brake Pad KitBrake Pad Kit
-
12705600078 Piston SetPiston Set
-
13705600079 SpringSpring
-
14705600080 Bleeder ScrewBleeder Screw
-
15705600081 Pin SetPin Set
-
16705600082 Compression BootCompression Boot
-
17705600083 Compression BootCompression Boot
-
18705600061 LH Brake SupportLH Brake Support
-
19705600045 Master Cylinder. INCLUDES ITEMS 19 TO 27Master Cylinder. INCLUDES ITEMS 19 TO 27
-
20705600057 Arm LeverArm Lever
-
21705600058 Piston KitPiston Kit
-
22705600084 Boot KitBoot Kit
-
23705600085 Bolt KitBolt Kit
-
24705600086 Switch KitSwitch Kit
-
25705600087 Bracket KitBracket Kit
-
26705600088 CirclipCirclip
-
27705600089 Compression BootCompression Boot
-
28705600303 Front Brake HoseFront Brake Hose
-
29210261080 Hex Head Flanged Forming Screw M6 X 10Hex Head Flanged Forming Screw M6 X 10
-
30705600056 Banjo BoltBanjo Bolt
-
31414920600 Washer For Hose ConnectionWasher For Hose Connection
-
32207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
33207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
34233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
35293600063 Brake Fluid, Srf (Dot 4)Brake Fluid, Srf (Dot 4)
-
36293600062 Brake Fluid, Gtlma (Dot 4) 12 X 354 mlBrake Fluid, Gtlma (Dot 4) 12 X 354 ml
-
37207582044 Hex Flanged Screw M8 X 20 (Scotch Grip)Hex Flanged Screw M8 X 20 (Scotch Grip)
-
38207581244 Hex Flanged Screw M8 X 12 (Scotch Grip)Hex Flanged Screw M8 X 12 (Scotch Grip)
-
39705600345 Rear Caliper. INCLUDES ITEMS 39 TO 47Rear Caliper. INCLUDES ITEMS 39 TO 47
-
40705600014 Brake Pad KitBrake Pad Kit
-
41705600078 Piston SetPiston Set
-
42705600079 SpringSpring
-
43705600080 Bleeder ScrewBleeder Screw
-
44705600081 Pin SetPin Set
-
45705600082 Compression BootCompression Boot
-
46705600083 Compression BootCompression Boot
-
47705600298 LH Caliper Support Ass'YLH Caliper Support Ass'Y
-
48705600304 Rear Brake HoseRear Brake Hose
-
49207581646 Hex Flanged Screw M8 X 16 (Scotch Grip)Hex Flanged Screw M8 X 16 (Scotch Grip)
-
50705600300 Master Cylinder Ass'Y. INCLUDES ITEMS 50 TO 57Master Cylinder Ass'Y. INCLUDES ITEMS 50 TO 57
-
51705600063 Piston Set. INCLUDES ITEMS 54 AND 55Piston Set. INCLUDES ITEMS 54 AND 55
-
52705600064 Pusher BracketPusher Bracket
-
53705600301 Rod Ass'Y (Items 56,57,61 And 62 Included). INCLUDES ITEMS 54 AND 55Rod Ass'Y (Items 56,57,61 And 62 Included). INCLUDES ITEMS 54 AND 55
-
54705600068 CirclipCirclip
-
55705600090 Compression BootCompression Boot
-
56705600190 Hose (Item 63 Included)Hose (Item 63 Included)
-
57705600182 Oil TankOil Tank
-
59293600063 Brake Fluid, Srf (Dot 4)Brake Fluid, Srf (Dot 4)
-
60293600062 Brake Fluid, Gtlma (Dot 4) 12 X 354 mlBrake Fluid, Gtlma (Dot 4) 12 X 354 ml
-
61414115200 Tie-RapTie-Rap
-
62710000099 Brake SwitchBrake Switch
-
63705600094 Brake PedalBrake Pedal
-
64705600098 SpringSpring
-
65503107800 WasherWasher
-
66293370012 CirclipCirclip
-
67293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
68293300053 O-RingO-Ring
-
69705600042 RH Brake DiscRH Brake Disc
-
70705600093 LH Brake DiscLH Brake Disc
-
71235381646 Countersunk Torx Screw M8 X 16 (Scotch Grip)Countersunk Torx Screw M8 X 16 (Scotch Grip)
-
72705500059 Brake DiscBrake Disc
-
73705600305 Rear Caliper SupportRear Caliper Support
-
74705500068 Caliper GuideCaliper Guide
-
75705600092 Banjo BoltBanjo Bolt
-
76250000029 Hex Screw M10 X 16Hex Screw M10 X 16
-
77705600095 Lever ArmLever Arm
-
78705600389 Lever StopperLever Stopper
-
79705600055 SpringSpring
-
80705600097 Snap RingSnap Ring
-
81210264080 Hex Screw M6 X 40Hex Screw M6 X 40
-
82233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
83250400007 PinPin
-
84705600100 YokeYoke
-
85232180600 Nut M8Nut M8
-
86293370014 CirclipCirclip
-
87293370015 CirclipCirclip
-
88210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
89293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
