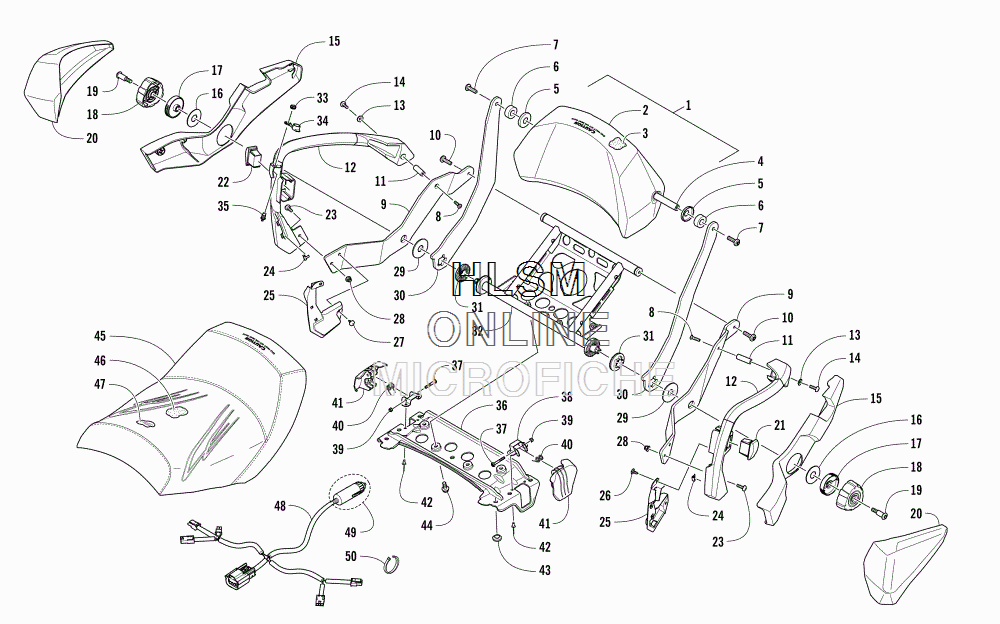

PASSENGER SEAT AND BACKREST ASSEMBLY для Arctic Cat PANTERA 7000 BLACK - 2018 года выпуска`
-
№АртикулНазвание
-
16706-478 BACKREST ASSEMBLY (INC. 2-3)BACKREST ASSEMBLY (INC. 2-3)
-
26706-477 ...COVER, BACKREST...COVER, BACKREST
-
30717-210 ...FOAM, BACKREST...FOAM, BACKREST
-
46606-593 AXLE, BACKRESTAXLE, BACKREST
-
50723-003 WASHER, CUPWASHER, CUP
-
60616-547 BLOCK, TENSION - BACKRESTBLOCK, TENSION - BACKREST
-
78477-831 SCREW, MACHINESCREW, MACHINE
-
82623-073 SCREW, MACHINESCREW, MACHINE
-
95706-576 BRACKET, MOUNTING - HANDHOLD - RIGHTBRACKET, MOUNTING - HANDHOLD - RIGHT
-
95706-577 BRACKET, MOUNTING - HANDHOLD - LEFTBRACKET, MOUNTING - HANDHOLD - LEFT
-
108468-621 SCREW, MACHINESCREW, MACHINE
-
116606-678 AXLE, HANDHOLDAXLE, HANDHOLD
-
126606-828 HANDHOLD - RIGHTHANDHOLD - RIGHT
-
125606-085 HANDHOLD - LEFTHANDHOLD - LEFT
-
138050-218 WASHERWASHER
-
141623-789 SCREW, MACHINESCREW, MACHINE
-
156606-690 COVER, BRACKET- HANDHOLD - RIGHTCOVER, BRACKET- HANDHOLD - RIGHT
-
156606-691 COVER, BRACKET- HANDHOLD - LEFTCOVER, BRACKET- HANDHOLD - LEFT
-
161623-986 SPACERSPACER
-
176606-643 TENSIONER, BACKRESTTENSIONER, BACKREST
-
186606-644 KNOB TENSIONERKNOB TENSIONER
-
192623-072 SCREW, SHOULDERSCREW, SHOULDER
-
206606-494 WINDGUARD - RIGHTWINDGUARD - RIGHT
-
206606-495 WINDGUARD - LEFTWINDGUARD - LEFT
-
210609-836 SWITCH, HEATED SEATSWITCH, HEATED SEAT
-
220609-835 SWITCH, HANDWARMERSWITCH, HANDWARMER
-
238468-630 SCREW, MACHINESCREW, MACHINE
-
241623-703 CLIPCLIP
-
256606-866 COVER, HARNESS - RIGHTCOVER, HARNESS - RIGHT
-
256606-867 COVER, HARNESS - LEFTCOVER, HARNESS - LEFT
-
262623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
271623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
288427-602 NUT, LOCKNUT, LOCK
-
291623-758 WASHER, RUBBERWASHER, RUBBER
-
305706-578 BRACKET, BACKREST - RIGHTBRACKET, BACKREST - RIGHT
-
305706-579 BRACKET, BACKREST - LEFTBRACKET, BACKREST - LEFT
-
316606-642 PLATE, LOCKINGPLATE, LOCKING
-
325706-443 BASE, SEAT - PASSENGERBASE, SEAT - PASSENGER
-
330609-944 NUT, RETAININGNUT, RETAINING
-
340609-945 COVER, OUTLET - SHIELDCOVER, OUTLET - SHIELD
-
350609-940 OUTLET, HEATED SHIELDOUTLET, HEATED SHIELD
-
365706-453 PLATE, BASE- PASSENGER SEATPLATE, BASE- PASSENGER SEAT
-
372623-064 SCREW, MACHINESCREW, MACHINE
-
386606-538 BRACKET, LATCHBRACKET, LATCH
-
398422-502 NUTNUT
-
406606-540 SPRING, LATCHSPRING, LATCH
-
416606-682 HANDLE, LATCH - RIGHTHANDLE, LATCH - RIGHT
-
416606-683 HANDLE, LATCH - LEFTHANDLE, LATCH - LEFT
-
421623-257 RIVETRIVET
-
430406-877 BUMPERBUMPER
-
448476-826 SCREW, MACHINESCREW, MACHINE
-
455706-857 COVER, SEAT - PASSENGERCOVER, SEAT - PASSENGER
-
460717-221 FOAM, SEAT - PASSENGERFOAM, SEAT - PASSENGER
-
470609-869 PAD, SEAT HEATERPAD, SEAT HEATER
-
481686-696 HARNESS, SEAT - PASSENGERHARNESS, SEAT - PASSENGER
-
490630-334 PLUG, ACCESSORYPLUG, ACCESSORY
-
500123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
