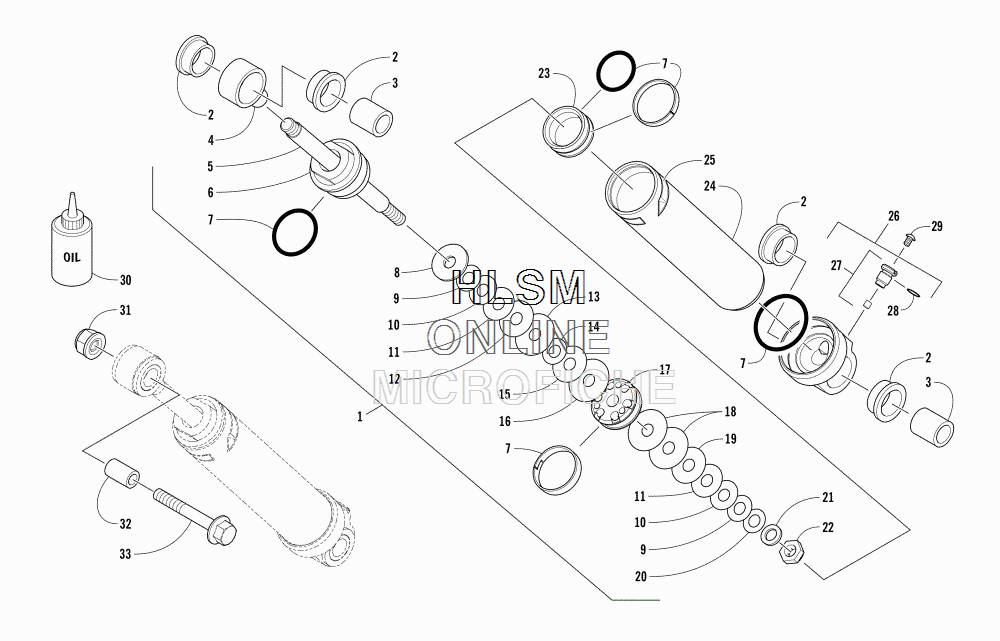

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat PANTERA 7000 BLACK - 2018 года выпуска`
-
№АртикулНазвание
-
12704-684 SHOCK ABSORBER (INC. 2-29)SHOCK ABSORBER (INC. 2-29)
-
23604-738 ...BUSHING...BUSHING
-
33604-737 ...SLEEVE...SLEEVE
-
43604-796 ...EYELET, SHOCK...EYELET, SHOCK
-
53604-810 ...ROD, SHOCK...ROD, SHOCK
-
64604-126 ...BEARING - ASSEMBLY...BEARING - ASSEMBLY
-
74604-121 ...KIT, SEAL/REBUILD...KIT, SEAL/REBUILD
-
83604-789 ...WASHER, TOP OUT...WASHER, TOP OUT
-
93603-105 ...VALVE, 0.800 X 0.010 IN....VALVE, 0.800 X 0.010 IN.
-
103603-115 ...VALVE, 0.900 X 0.010 IN....VALVE, 0.900 X 0.010 IN.
-
113603-125 ...VALVE, 1.000 X 0.010 IN....VALVE, 1.000 X 0.010 IN.
-
123603-145 ...VALVE, 1.100 X 0.010 IN....VALVE, 1.100 X 0.010 IN.
-
133603-175 ...VALVE, 1.250 X 0.010 IN....VALVE, 1.250 X 0.010 IN.
-
143603-112 ...VALVE, 0.900 X 0.006 IN....VALVE, 0.900 X 0.006 IN.
-
153603-144 ...VALVE, 1.100 X 0.008 IN....VALVE, 1.100 X 0.008 IN.
-
163603-186 ...VALVE, 1.300 X 0.012 IN....VALVE, 1.300 X 0.012 IN.
-
172603-998 ...PISTON, 0.063 IN. - ORIFICE...PISTON, 0.063 IN. - ORIFICE
-
183603-176 ...VALVE, 1.250 X 0.012 IN....VALVE, 1.250 X 0.012 IN.
-
193603-146 ...VALVE, 1.100 X 0.012 IN....VALVE, 1.100 X 0.012 IN.
-
203603-095 ...VALVE, 0.700 X 0.010 IN....VALVE, 0.700 X 0.010 IN.
-
213604-775 ...WASHER, BACKUP...WASHER, BACKUP
-
223604-739 ...NUT...NUT
-
233604-772 ...PISTON, FLOATING...PISTON, FLOATING
-
243604-811 ...BODY, SHOCK...BODY, SHOCK
-
251621-728 ...DECAL, WARNING - HIGH PRESSURE...DECAL, WARNING - HIGH PRESSURE
-
262704-257 ...END CAP, SHOCK - ASSEMBLY (INC. 27-28)...END CAP, SHOCK - ASSEMBLY (INC. 27-28)
-
273604-751 ......VALVE, PRESSURE (INC. 28)......VALVE, PRESSURE (INC. 28)
-
283604-733 .........O-RING, VALVE.........O-RING, VALVE
-
293604-750 ...SCREW, MACHINE...SCREW, MACHINE
-
305639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
-
312623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
-
323604-109 SLEEVESLEEVE
-
338408-045 SCREW, CAPSCREW, CAP
