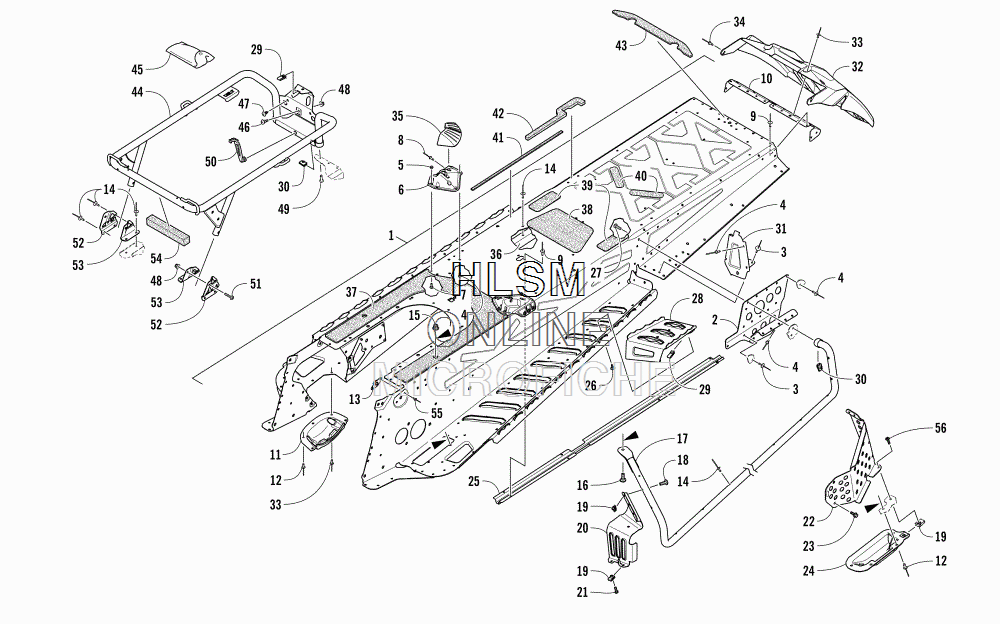

TUNNEL AND REAR RACK ASSEMBLY для Arctic Cat PANTERA 7000 BLACK - 2018 года выпуска
-
№АртикулНазвание
-
-2707-451 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
12707-634 TUNNEL ASSEMBLY - BLACK (INC. 2-10)TUNNEL ASSEMBLY - BLACK (INC. 2-10)
-
22707-090 ...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
22707-091 ...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
38060-686 ...RIVET - ZINC...RIVET - ZINC
-
41623-241 ...RIVET...RIVET
-
58422-502 ...NUT...NUT
-
61707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
61707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
78475-512 ...SCREW, MACHINE...SCREW, MACHINE
-
81623-257 ...RIVET...RIVET
-
98060-482 ...RIVET - ZINC...RIVET - ZINC
-
102707-633 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
111607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
128061-708 RIVETRIVET
-
130608-631 PLATE, RETAININGPLATE, RETAINING
-
148060-706 RIVET - BLACKRIVET - BLACK
-
158427-802 NUTNUT
-
168476-820 SCREW, MACHINESCREW, MACHINE
-
171707-602 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
171707-603 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
188468-535 SCREW, MACHINESCREW, MACHINE
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
201707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
201707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
218470-516 SCREW, MACHINESCREW, MACHINE
-
221707-955 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
238408-613 SCREW, CAPSCREW, CAP
-
240607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
250630-301 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
262623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
278477-620 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
281707-878 FOOTREST, PASSENGER - RIGHT - BLACKFOOTREST, PASSENGER - RIGHT - BLACK
-
281707-879 FOOTREST, PASSENGER - LEFT - BLACKFOOTREST, PASSENGER - LEFT - BLACK
-
291623-030 CLIP, U-NUTCLIP, U-NUT
-
300423-577 CLIP, U-NUTCLIP, U-NUT
-
312707-636 CLOSE OFF, RUNNING BOARD - RIGHT - BLACKCLOSE OFF, RUNNING BOARD - RIGHT - BLACK
-
312707-637 CLOSE OFF, RUNNING BOARD - LEFT - BLACKCLOSE OFF, RUNNING BOARD - LEFT - BLACK
-
326606-486 SNOWFLAPSNOWFLAP
-
338061-706 RIVETRIVET
-
348061-506 RIVETRIVET
-
356606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
356606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
361607-689 PROTECTOR, TUNNELPROTECTOR, TUNNEL
-
370617-781 SEAL, FOAMSEAL, FOAM
-
387606-436 PAD, FUEL TANKPAD, FUEL TANK
-
396606-877 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
-
406606-878 PAD, AUXILIARY TANK - REARPAD, AUXILIARY TANK - REAR
-
410617-743 FOAM, SIDE PANELFOAM, SIDE PANEL
-
420617-748 FOAM, RACK - RIGHTFOAM, RACK - RIGHT
-
420617-749 FOAM, RACK - LEFTFOAM, RACK - LEFT
-
430617-744 FOAM, FASCIA - REARFOAM, FASCIA - REAR
-
445706-635 RACK, REAR - BLACKRACK, REAR - BLACK
-
450744-088 KIT, TOOLKIT, TOOL
-
460423-356 SCREW, SHOULDERSCREW, SHOULDER
-
472623-017 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
488427-602 NUT, LOCKNUT, LOCK
-
492623-059 SCREW, MACHINESCREW, MACHINE
-
506606-392 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
518468-635 SCREW, MACHINESCREW, MACHINE
-
525706-450 BRACKET, MOUNTING - RACK - OUTER - RIGHT - BLACKBRACKET, MOUNTING - RACK - OUTER - RIGHT - BLACK
-
525706-451 BRACKET, MOUNTING - RACK - OUTER - LEFT - BLACKBRACKET, MOUNTING - RACK - OUTER - LEFT - BLACK
-
535706-448 BRACKET, MOUNTING - RACK - INNER - RIGHT - BLACKBRACKET, MOUNTING - RACK - INNER - RIGHT - BLACK
-
535706-449 BRACKET, MOUNTING - RACK - INNER - LEFT - BLACKBRACKET, MOUNTING - RACK - INNER - LEFT - BLACK
-
540617-745 FOAM, RACK - FRONTFOAM, RACK - FRONT
-
558060-708 RIVET - BLACKRIVET - BLACK
-
568470-520 SCREW, MACHINESCREW, MACHINE
