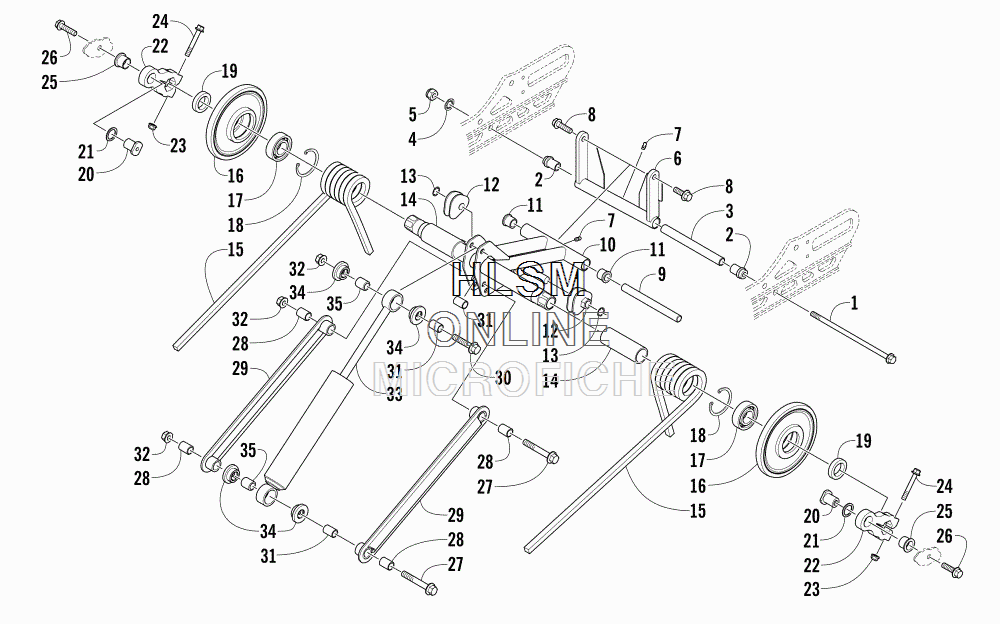

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat BEARCAT 2000 LT BLUE - 2018 года выпуска`
-
№АртикулНазвание
-
11423-431 SCREW, CAPSCREW, CAP
-
23604-286 BUSHINGBUSHING
-
33604-285 AXLEAXLE
-
41623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
58422-002 NUT, LOCKNUT, LOCK
-
61704-624 ARM, REAR - BLACK (INC. 7)ARM, REAR - BLACK (INC. 7)
-
71623-010 ...FITTING, GREASE...FITTING, GREASE
-
88408-041 SCREW, CAPSCREW, CAP
-
93604-276 AXLEAXLE
-
101704-677 ARM, IDLER - BLACK (INC. 7 AND 11)ARM, IDLER - BLACK (INC. 7 AND 11)
-
111604-100 ...BUSHING, FLARED...BUSHING, FLARED
-
121604-204 BLOCK, SPRING ADJUSTER - RIGHT - BLACKBLOCK, SPRING ADJUSTER - RIGHT - BLACK
-
121604-205 BLOCK, SPRING ADJUSTER - LEFT - BLACKBLOCK, SPRING ADJUSTER - LEFT - BLACK
-
130623-138 RING, RETAININGRING, RETAINING
-
143604-288 SLEEVE, SPRINGSLEEVE, SPRING
-
151704-146 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
151704-147 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
163604-264 WHEEL, IDLER (INC. 17-18)WHEEL, IDLER (INC. 17-18)
-
173604-257 ...BEARING...BEARING
-
183604-256 ...RING, RETAINING...RING, RETAINING
-
193604-289 SPACER, PIVOT - IDLER ARMSPACER, PIVOT - IDLER ARM
-
203604-979 AXLEAXLE
-
211604-187 WASHERWASHER
-
221704-627 PIVOT - IDLER ARM (INC. 23-25)PIVOT - IDLER ARM (INC. 23-25)
-
238427-802 ...NUT...NUT
-
248408-860 ...SCREW, CAP...SCREW, CAP
-
253604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
268408-031 SCREW, CAPSCREW, CAP
-
278408-090 SCREW, CAPSCREW, CAP
-
283604-330 AXLE, LINKAXLE, LINK
-
290704-928 LINK, SHOCKLINK, SHOCK
-
308408-050 SCREW, CAPSCREW, CAP
-
313604-109 SLEEVESLEEVE
-
328427-002 NUT, LOCKNUT, LOCK
-
333604-331 SHOCK ABSORBERSHOCK ABSORBER
-
341604-262 BUSHINGBUSHING
-
351604-397 SLEEVE, EYELET - INNERSLEEVE, EYELET - INNER
