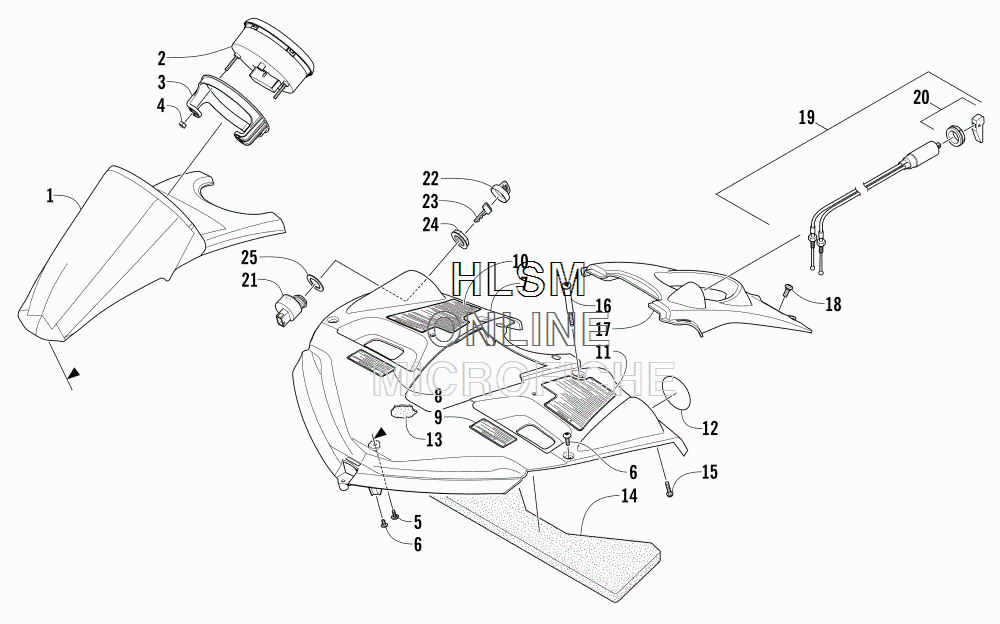

CONSOLE ASSEMBLY для Arctic Cat BEARCAT 2000 LT BLUE - 2018 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    4606-575 HOUSING, SPEEDOMETER/TACHOMETER
    HOUSING, SPEEDOMETER/TACHOMETER
  • 2
    0620-357 SPEEDOMETER/TACHOMETER - STANDARD - CALIBRATED (F/C)
    SPEEDOMETER/TACHOMETER - STANDARD - CALIBRATED (F/C)
  • 3
    0620-322 BRACKET, RETAINING
    BRACKET, RETAINING
  • 4
    0423-493 NUT W/WASHER
    NUT W/WASHER
  • 5
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 6
    1623-618 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    3718-116 CONSOLE BLACK (INC. 8-12)
    CONSOLE BLACK (INC. 8-12)
  • 8
    7611-574 ...DECAL, CAUTION - FRENCH
    ...DECAL, CAUTION - FRENCH
  • 9
    7611-575 ...DECAL, CAUTION - ENGLISH
    ...DECAL, CAUTION - ENGLISH
  • 10
    8611-848 ...DECAL, WARNING - FRENCH
    ...DECAL, WARNING - FRENCH
  • 11
    8611-849 ...DECAL, WARNING - ENGLISH
    ...DECAL, WARNING - ENGLISH
  • 12
    1411-798 ...DECAL, AIRCAT
    ...DECAL, AIRCAT
  • 13
    0617-558 FOAM, CONSOLE - FRONT
    FOAM, CONSOLE - FRONT
  • 14
    0617-559 FOAM, CONSOLE - REAR
    FOAM, CONSOLE - REAR
  • 15
    0623-785 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    1623-669 SCREW, SHOULDER - TSTRH M6 X 1.0 X 80MM
    SCREW, SHOULDER - TSTRH M6 X 1.0 X 80MM
  • 17
    5606-146 CLOSE-OFF, HANDLEBAR
    CLOSE-OFF, HANDLEBAR
  • 18
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 19
    0687-208 CABLE, CHOKE (INC. 20)
    CABLE, CHOKE (INC. 20)
  • 20
    0687-219 ...KIT, CHOKE LEVER
    ...KIT, CHOKE LEVER
  • 21
    0609-910 SWITCH, IGNITION (INC. 22-24)
    SWITCH, IGNITION (INC. 22-24)
  • 22
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 23
    0430-042 ...KEY, IGNITION (Y SERIES - LEFT-SIDE CUT)
    ...KEY, IGNITION (Y SERIES - LEFT-SIDE CUT)
  • 23
    0430-043 ...KEY, IGNITION (Z SERIES - RIGHT-SIDE CUT)
    ...KEY, IGNITION (Z SERIES - RIGHT-SIDE CUT)
  • 24
    0430-050 ...NUT, RETAINING
    ...NUT, RETAINING
  • 25
    0630-264 WASHER
    WASHER
